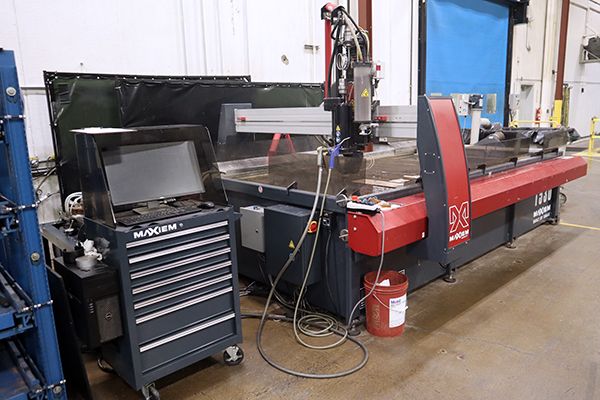

Omax MAXIEM 1530 CNC CONTROL

Pressure: 50,000 PSI
Table size: 12'2" x 5'8" (3708 mm x 1727 mm)
Cutting envelope: 10'0" x 5'2" (3048 mm x 1575 mm)
Z-axis travel: 12" (305 mm)
X-Y cutting travel: 10'0" x 5'2" (3048 mm x 1575 mm)
Speed: 500 in/min (12,700 mm/min)
Linear position accuracy: ±0.003" (±0.076 mm)
Repeatability: ±0.001" (±0.025 mm)
Material support slats: 34 pcs, 4" x 14Ga galvanized steel (102 mm x 2 mm)
Max material weight: 300 lbs/sq ft (1465 kg/sq m)
Electrical requirements: 3-phase, 380–480 VAC ±10%, 50–60 Hz
Noise level: Below 80 dBA at one meter (submerged cutting)
Footprint (with pump & controller): 14'1" x 10'10" (4293 mm x 3302 mm)
Height (with whip plumbing): 10'6" (3200 mm)
Operating weight: 15,700 lb (7121 kg)

Equipped With
Model M30 pump, 30 HP / 50,000 PSI
A-Jet 5-axis cutting head
Terrain Follower
Variable Speed Solids Removal System
Water Level Control
600 lb Abrasive Feed System
Laminar Flow Filter System
