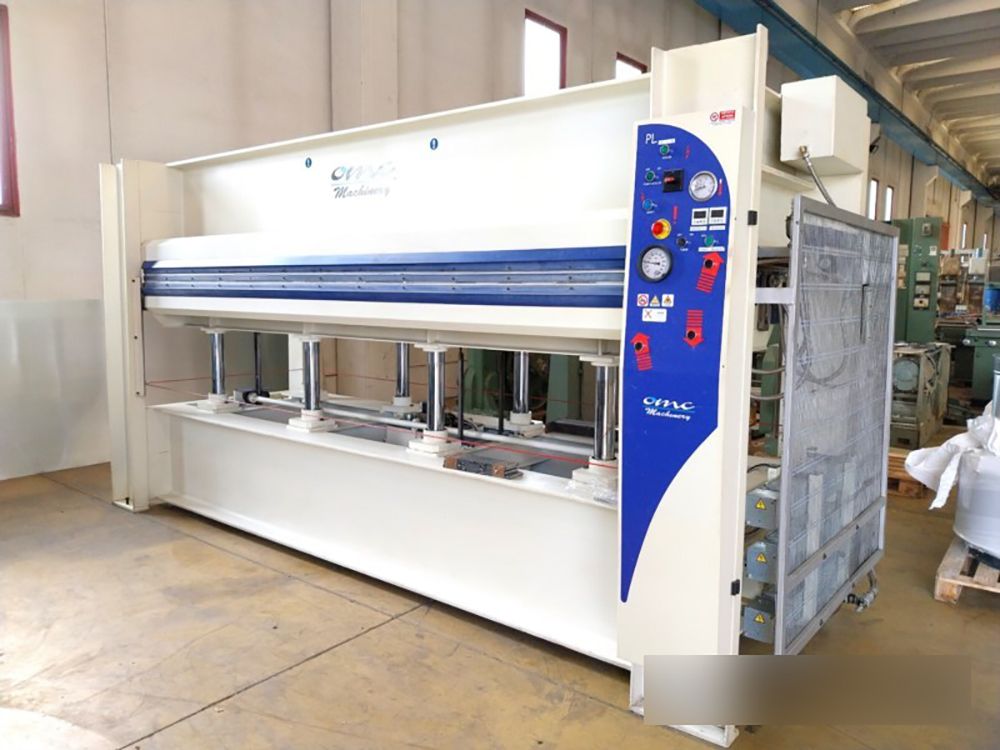

OMC PL/160

Hydraulic hot press with solid platens, heated by an electric oil boiler, for panels, veneer, woodworking,
furniture, custom-made furnishings, wooden doors, composite materials, and various - CE Standard
Platens dimensions 3500 x 1300 mm
Solid steel perforated platens
N°1 intermediate platen
Max temperature 250°C
Opening 400 mm
N° 8 pistons - diameter 85 mm
Specific working pressure 30/40 kg/cm²
Total thrust 160 tons
Heating by 3 diathermic oil boilers
Safety devices: perimeter safety cable, emergency stop button, two-hand control
Automatic opening with timer
Control panel
Motor 3 Hp
Power supply: 400 V / 50 Hz
Overall dimensions mm 4200 x 1600 x 2250 h
Weight kg 5500
