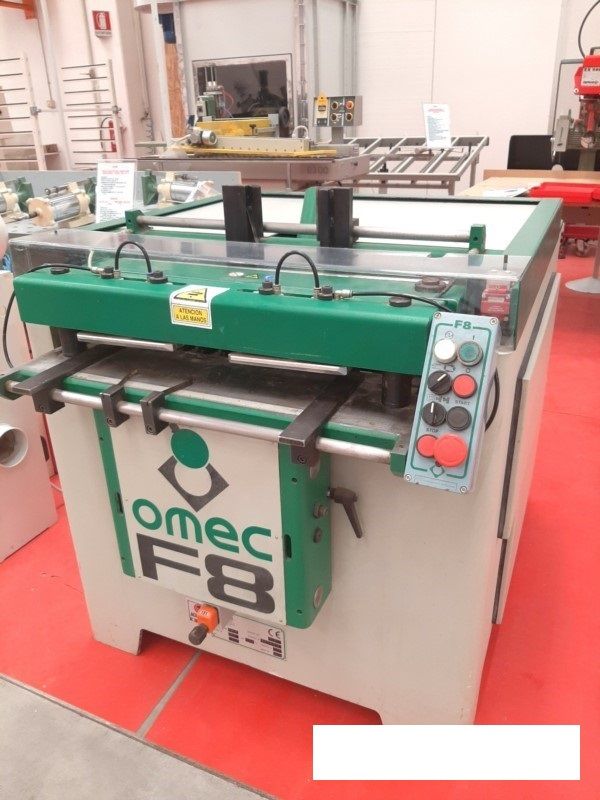

Omec F8

Automatic dovetailing machine for dovetail joints on drawers and various furniture elements - CE Standard
The machine is equipped with a unit of 8 spindles with equal mill cutters that allow the production of indents of different heights.

Technical data:
No. 8 spindles
Spindle revolutions /min 17,000
Maximum working width mm 400
Distance between centres of indents mm 25
Drawers production 120 / hour
Power Kw 7,5
Working pressure 6 atm
Overall dimensions: mm 1500 x 1000 x 1200 h
Weight kg 1100
