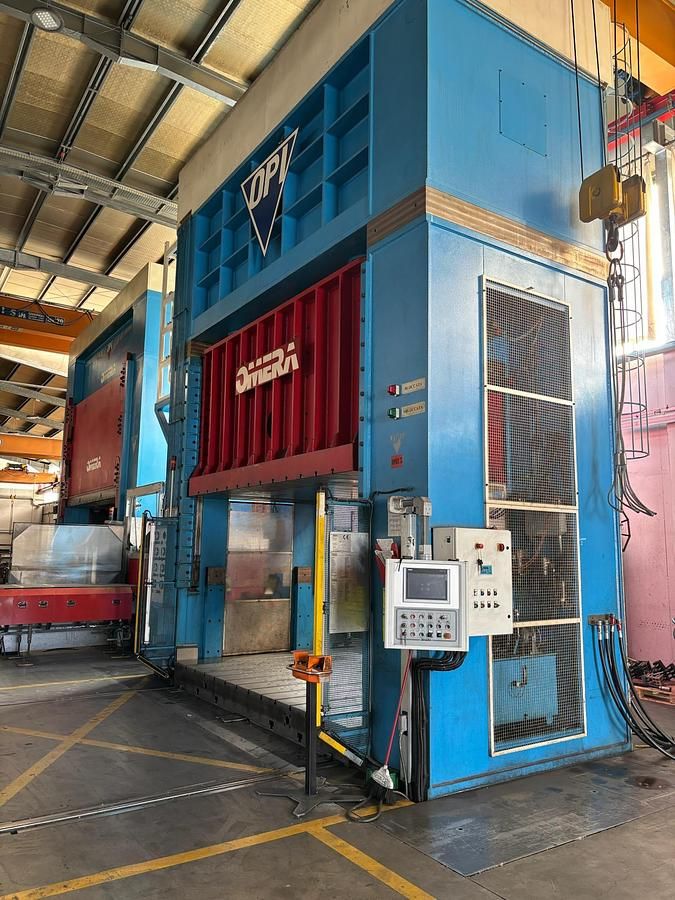

Omera OP 2/1200 1200 ton
EUROPE (Western and Northern)
Hydraulic press
Double-acting press
Double-column design
CE marking
Working condition
Pull-out table
Front removable table
Photocells
Safety guards
Cylinder block valve
Mechanical slide block
Proportional valves
Anti-splash cylinders
Press force: 1200 ton
Press force split: 500 + 700 ton
Table size: 4100 × 2500 mm
Slide stroke: 1000–1400 mm
Slide size: 4100 × 2500 mm
Inner slide size: 2200 × 1600 mm
Number of push points: 6
Number of slide guides: 8
Approach speed: 340 mm/s
Working speed at 100%: 20 mm/s
Daylight: 2000 mm
Maximum daylight: 2400 mm
Blank holder cushion force: 600 ton
Blank holder cushion stroke: 400–350 mm
Blank holder pad size: 3500 × 2000 mm
Drive system: Hydraulic
External dimensions: 6000 × 3000 mm
Overall height above floor: 7600 mm
Machine weight: 210 ton
Foundation depth: 3000 cm
Installed power: 75 + 75 kW
