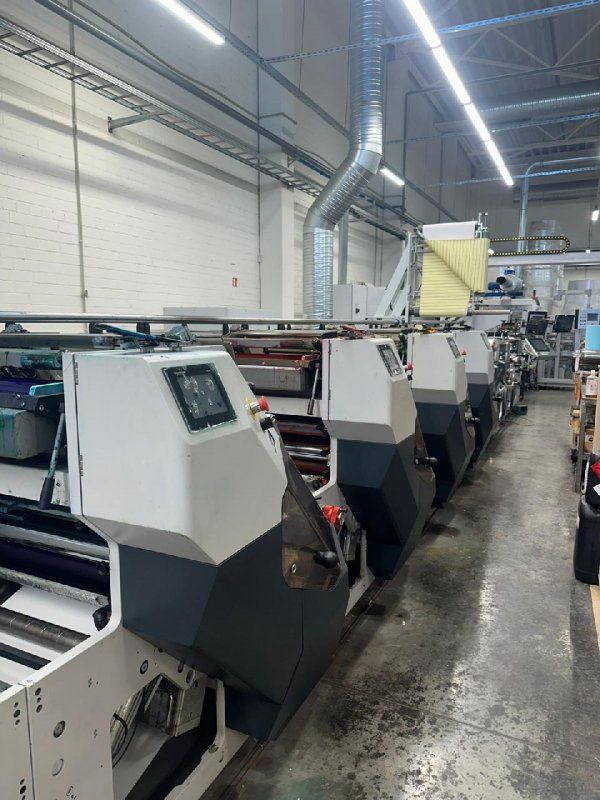

OMET XFLEX X6 530 7 530 mm

Narrow web flexo printing machine
Number of colors 7
Web width (mm) 550
Print width (mm) 530
Drying 7 UV drying sections E2C RHINO LIGHT UV system, power up to 6,6 kW and 3 Heated air drying systems with thermoregulation
Unwinder :
Automatic tension unwinder, for rolls up to 1000 mm (40”) diameter, with integrated roll pick up from the floor.
Servo driven infeed section, with automatic web tension control,

Rewinder :
Single shaft rewinder, with independent motor for constant tension control,
for rolls up to 1000 mm (40”) diameter, including integrated roll discharge system,

3 Flexo units and 4 offset units, 2 die cutting units.
SHAFTLESS and GEARLESS
Direct Drive flexo printing unit
Side registration
Servo Motorized; - Automatic Longitudinal and Transverse pre-registration, setting position
Web turning bar, sliding on rail
Antistatic bars Corona Treater Double side web cleaner 7 closed loop circuitc chilling system for chill drums.
Automatic wash-up system for the offset inking train, complete with nozzles,
washing detergents supply driven by electro-valves, liquid tank next to the relevant offset printing station,
cleaning-roll doctor blade and solvent recycling tray.
Printing Tooling (sleeve and cams) repeat: 99;104;128;134;144;146;149;153;156;157;160 Z;
