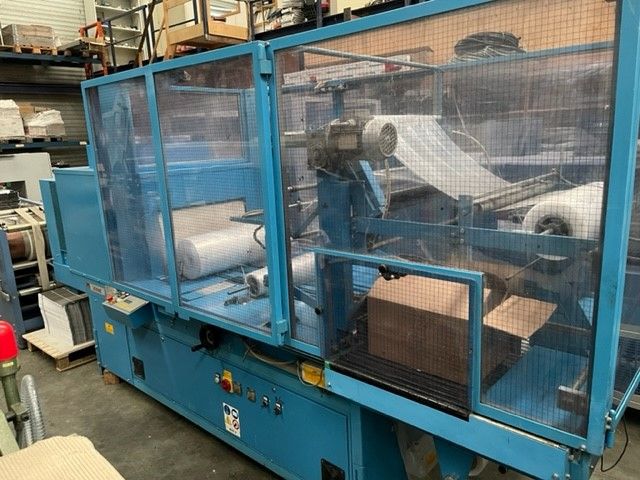

OMG Autofard 600 C 500 x 400 mm

Shrink wrapping machine, suitable for automatic shrink wrapping of stacks of books, magazines etc.

Technical advantages
Products can be fed at 90° both from the left or right.
Once the stack reaches the plate, an electronic detector starts the pusher taking the packet to the welding area (OMG Patent).
Problems with dog-ears and skewing of the stack, caused by pushing against the film, are solved by a sensor which prevents the stack touching the film.
Stopper device stops the packet and holds it during the wrapping, in pneumatic cycle (OMG Patent) (mod. 500) (avoids the pile pushing against the film and stops it).
Device for the automatic double stop of the packet and hold during the wrapping, in pneumatic cycle (OMG Patent) (mod. 600) (avoids the pile pushing against the film and stops it).
Thermal welding bar with adjustable welding time and vertical up/down movement.

Shrink tunnel
Perforated teflon conveyor belt
Adjustable rollers to obtain a compact packet at the mini tunnel delivery
Forced air circulation from the side, top and bottom
Electronic temperature and ventilation adjustment
Electronic conveyor speed adjustment
Mini tunnel with cooling fan after the shrink tunnel
Machine control by means of a PLC with display complete with fault/stoppage indicator

Technical details
Max. speed: 16-18 packets/min
Max. packet height: 300 mm
Max. packet: 500 x 400 mm
Max. film roll width: 600 mm
Net weight – mod. 600-C: 810 kg
