OMS 08RP TR1400 800 - 1200 mm

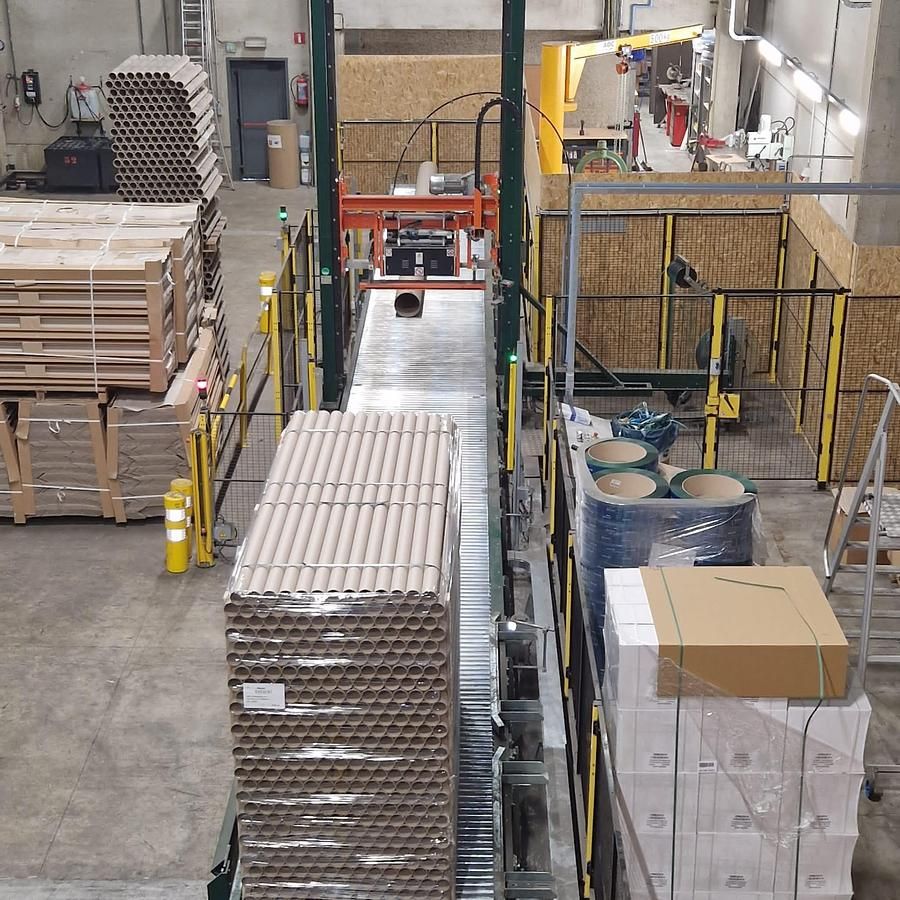

VERTICAL STRAPPING MACHINE
Pallet Dimensions:
Length (Min. - Max.) 1200 mm
Width (Min. - Max.) 800 - 1200 mm
Height (Min. - Max.) 135 - 150 mm

Pallet Dimensions:
Length (Min. - Max.) 1200 - 1500 mm
Width (Min. - Max.) 800 - 1200 mm
Height (Min. - Max.) 400 - 2400 mm

Capacity: 15–20 pallets/hour
Number of strappings: 2–6 straps, depending on package length
Transport direction: Shortest side first
Transport height: Min.: 1200 mm | Max.: 5000 mm
Useful roller conveyor width:1200 mm
Alignment: approx. 1380 mm | approx. centered on the conveyor (the pallet is positioned against the stop)

TR1400 STRAPPING HEAD
Technical characteristics:
Sealing: thermal welding with sealing tool
Strap width: 12, 15.5 mm
Strap type: PP / PET up to 0.90 mm
Tension force: adjustable 0–2300 N
Speed: 5.5 m/sec during feeding and retraction, and 0.25 m/sec during tensioning
Power supply: 3 x 380 V – 50 Hz

TRANSPORT SYSTEM; Infeed roller conveyor for pallet — side loading via forklift
Length: approx. 5990 mm
Working height: 500 mm
Width between profiles: 1380 mm
Roller diameter: 60 mm — galvanized steel, max load capacity 800 kg
Tangential drive
Roller pitch: approx. 65 mm
Speed: 12 m/min (frequency controlled — Siemens G120C)
Equipped with 1 positioning photoelectric sensor (SICK) for stop position
Drive: geared motor 0.55 kW
Equipped with side impact buffers (forklift protection) and side ultrasonic detection for forklift presence

Manipulation roller conveyor for pallet inside the strapping machine
Length: approx. 5990 mm
Working height: 500 mm
Width between profiles: 1380 mm
Roller diameter: 60 mm — galvanized steel, max load capacity 800 kg
Tangential drive
Roller pitch: approx. 65 mm
Speed: 12 m/min (frequency controlled — Siemens G120C)
Equipped with 1 positioning photoelectric sensor (SICK) for stop position + encoder for position detection during strapping operations
Drive: geared motor 0.55 kW

Outfeed roller conveyor for pallet — side discharge via forklift
Length: approx. 5990 mm
Working height: 520 mm
Width between profiles: 1380 mm
Roller diameter: 60 mm — galvanized steel, max load capacity 800 kg
Tangential drive
Roller pitch: approx. 65 mm
Speed: 12 m/min (frequency controlled — Siemens G120C)
Equipped with 1 positioning photoelectric sensor (SICK) for stop position
Drive: geared motor 0.55 kW
Equipped with side impact buffers (forklift protection) and side ultrasonic detection for forklift presence
