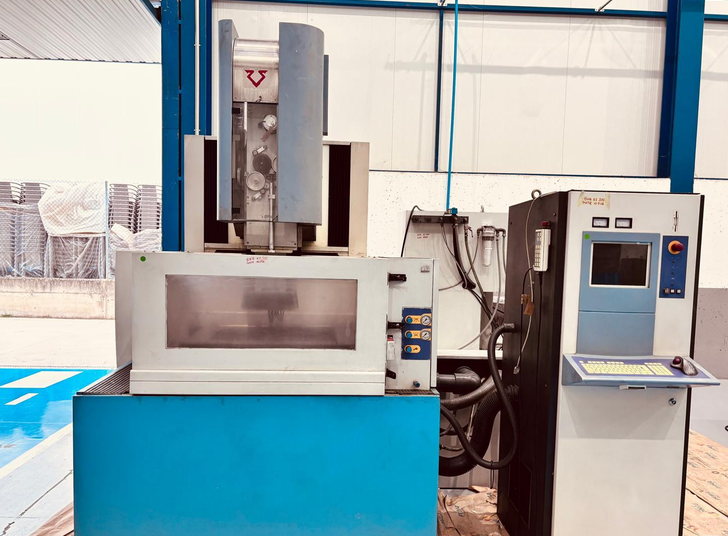

Ona KE 300
Ref :
2810760-3-CP
Condition :
Used
Manufacturer :
Ona
Model :
KE 300
Year(s) :
2005
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 550 mm
Y-axis travel: 300 mm
Z-axis travel: 400 mm
U-axis travel: 140 mm
V-axis travel: 140 mm
Control: ONA
Maximum workpiece size: 1050 × 800 × 400 mm
Maximum workpiece weight: 3000 kg
Maximum table speed: 2000 mm/min
Maximum taper angle: ±30° / 95 mm
Wire diameter: 0.10–0.35 mm
Wire spool type: DIN 100 / 125 / 160 / 200 / DIN 355
Maximum wire spool weight: 45 kg
Minimum hole diameter: 1.5 mm
Maximum power: 14 kVA
