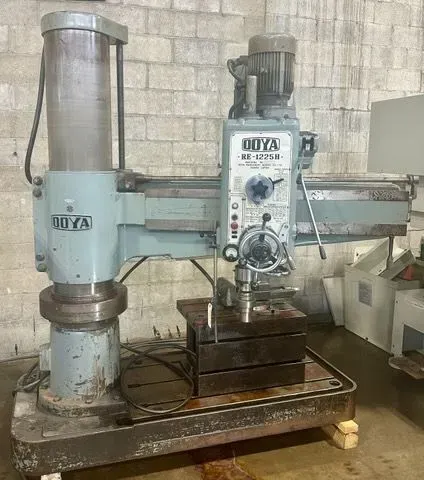

Ooya RE-1225H 1,985 RPM

Arm length: 4.08 ft
Column diameter: 12.625"

Vertical spindle travel: 11.813"
Vertical arm travel on column: 25.625"
Horizontal head travel on arm: 37.75"

Max distance spindle to base: 51.75"
Min distance spindle to base: 13"
Max distance face of column to spindle: 49.375"
Min distance face of column to spindle: 11.625"

Spindle speed: 38–1,985 RPM
Spindle feeds: 6 ranges (0.003–0.039 in/min)
Spindle taper: #5 MT
Spindle diameter: 2.375"

Spindle motor power: 5 hp
Number of spindle speeds: 12
Number of spindle feeds: 6

Table size: 75" × 30"
Box table: 18" × 26" × 16"

Drilling capacity (steel): 2"
Drilling capacity (cast iron): 2.25"
Boring capacity (steel): 4"
Boring capacity (cast iron): 7.125"

Power elevation
Power clamping
Tapping capability
Coolant system
Hardened arm ways

Machine dimensions: 80" × 48" × 90"
Machine weight: 6,100 lbs
