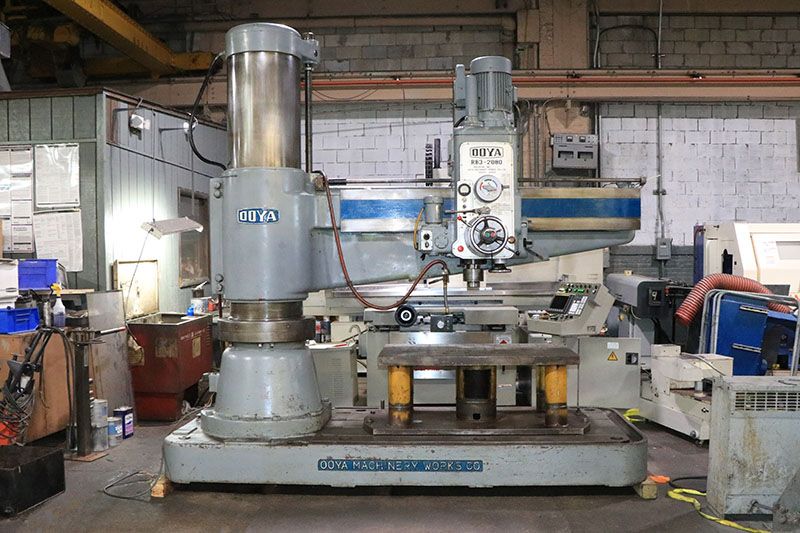

Ooya RE3-2000 2180 RPM

Maximum Distance Spindle to Column 79-1/2"
Minimum Distance Spindle to Column 16-1/8"
Diameter of Column 19-11/16"
Drill Capacity, Mild Steel 3"
Drill Capacity, Cast Iron 3-5/8"
Boring Capacity, Steel 7-7/8"
Boring Capacity, Cast Iron 11"
Traverse of Spindle Head on Arm 63-3/8"
Vertical Travel of Arm 32-1/4"
Maximum Distance Between Spindle and Baseplate 66-7/8"
Minimum Distance Between Spindle and Baseplate 19"
Traverse of Spindle 15-3/4"
Taper in Spindle #5 MT
Spindle Speed Range 20 - 2180 RPM
Feed Range .0015" - .125" per rev
Approximate Machine Dimensions 121"L x 49-1/4"W x 117"H Head Down
Approximate Machine Weight 15,000 lbs
Power Elevation & Clamping of Arm on Column
Power Clamping of Head on Arm
Table
T-Slotted Base
Coolant System
10 HP Spindle Motor
