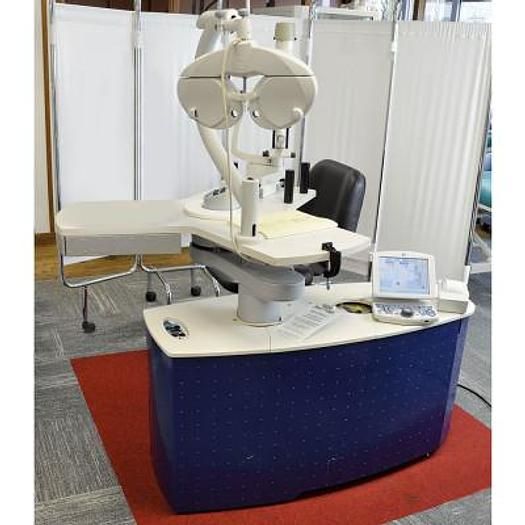

Ophthalmology Consultation Suite

- Electrically height-adjustable from 80 to 93 cm,
with drawers for 232 trial lenses.
- Arm-mounted refractor fixed to the tabletop
(tiltable for near vision as an option).
- 360° swivel
- Maximum load 250 kg.

CHARACTERISTICS OF THE NIDEK RT 5100
AUTOMATIC VISIOMETER REFRACTOR :
Measurement ranges
- Sphere from -29.00 to 26.75D (steps of 0.12/0.25/1/2/3D)
- Cylinder from 0 to ± 8.75D (steps of 0.25/1/2/3D)
- Axis from 0 to 180º (steps 1/5/15°)
Pupil distance
- 48 to 80 mm (0.5/1 mm steps)
- 50 to 74 mm (VP mode at 35 cm, 0.5/1 mm steps)
- From 54 to 80 mm (VL mode, maximum convergence amplitude)
- Prisms From 0 to 20 ∆ (steps of 0.1/0.5/2 ∆)
- Auxiliary lenses
- Crossed cylinder lenses ±0.25D/±0.5D/±0.25D auto mode
- Eye shield
- Pinhole ø 2 mm
- Red Maddox Right eye: horizontal, left eye: vertical
- Red/green filters Right eye : R, left eye: V
- Polarized filters Right eye: 135/45°, left eye: 45/135°.
- Pupillary deviation control
- Fixed crossed cylinder lens ± 0.50 D (fixed at 90°)
- Spherical retinoscope lenses +1.5 /+2.0 D
- Dissociating prisms Right eye: 6 ∆ upper base, left eye 10 inner base
- Refraction distance for VP from 350 to 700 mm (50 mm steps)
- Field of vision 40° (VD=12mm)
- Front rest adjustment range 14 ± 2mm
- VD scale 12, 14, 13.75, 16, 18, 20 mm
- Level adjustment ± 2.5
- 8.4" TFT color LCD touchscreen.
