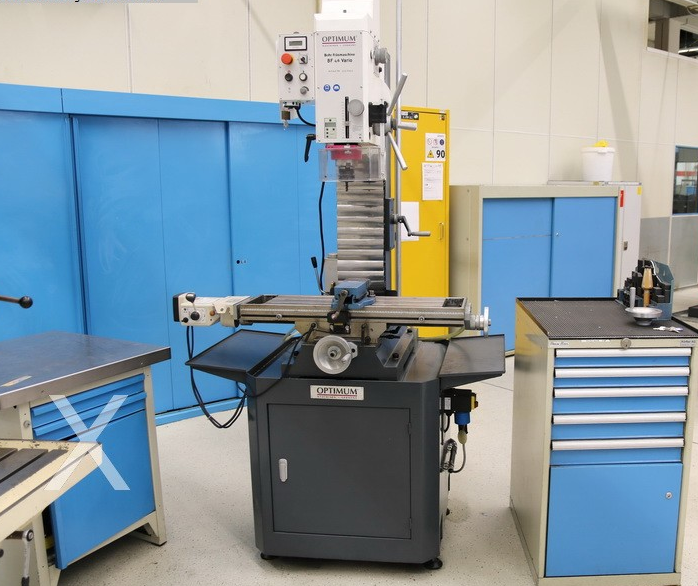

Optimum OPTImill BF 46 Vario 3100 rpm

X-Axis Travel 500 mm
Y-Axis Travel 250 mm
Z-Axis Travel 541 mm
Spindle Taper ISO 40 DIN 2080
Shank Diameter 32 mm
Quill Stroke 115 mm
Spindle Speed Range 115 - 3100 rpm
Transmission Ratio 1 115 - 600 rpm
Transmission Ratio 2 270 - 1400 rpm
Transmission Ratio 3 590 - 3100 rpm
Spindle Motor 2.2 kW
Bore Capacity in Steel Diameter 28 mm
Bore Capacity in Steel Permanent 24 mm
Table Surface Area 850 x 240 mm
T-Slot Width 18 mm
T-Slot Distance 80 mm
Machine Weight Approx. 480 kg
Machine Dimensions 1.4 x 1.1 x 2.5 m
Included OPTIMUM Base Cabinet
Included LISTA Cabinet
Vice RÖHM
