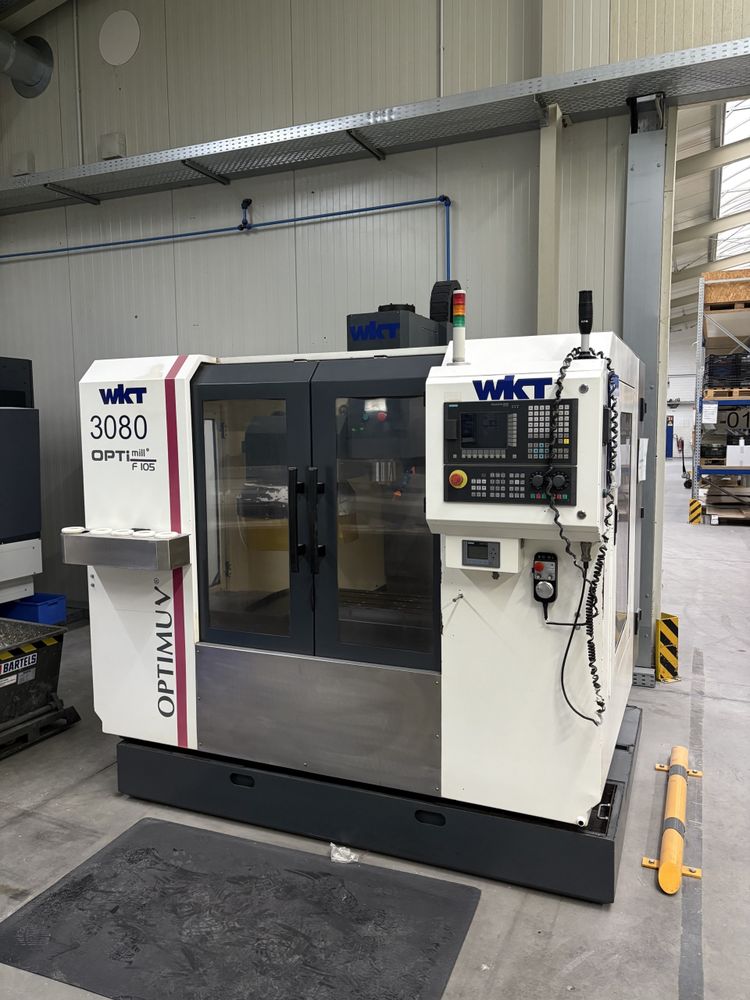

Optimum OPTIMILL F 105 3 Axis

Ref : 2787490-3-AW

Condition : Used

Manufacturer : Optimum

Model : OPTIMILL F 105

Nb Of Axis : 3 Axis

Year(s) : 2012

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X travel: 550 mm
Y travel: 305 mm
Z travel: 460 mm
Rapid traverse X axis: 1500 mm/min
Rapid traverse Y axis: 1500 mm/min
Rapid traverse Z axis: 1500 mm/min
Control: CNC
Control system: Siemens Sinumerik 828D
15.6 inch touchscreen display
Coolant unit
Chip flushing system
Cleaning gun
Oil separator
Machine light
RJ45 connection
USB connection
230 V connection
Spindle taper: BT40
Spindle speed: 10000 rpm
Spindle power: 11 kW
Tool magazine capacity: 12 positions
Tool changer: double arm gripper
Table size: 820 x 320 mm
Max workpiece weight: 300 kg
Machine dimensions: 2164 x 1860 x 2200 mm
Machine weight: 2800 kg
