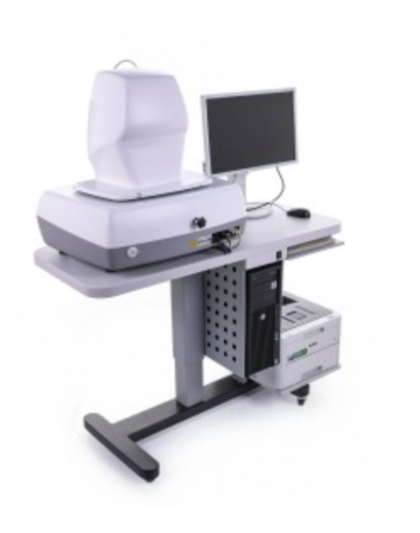

Optopol SOCT Copernicius

Features and specifications
Technology: OCT spectroscopic spectral domain,
Light source: diode laser, wavelength 840 nm (50 nm bandwidth),
Resolution: axial 5 μm, transverse 12–18 μm,
Scanning speed: up to 27,000 A-scans per second,
Measurement modes: Single B-Scan, 3D Mode, Asterisk,
Animation Scan and user-defined modes,
Advanced fixation: internal and external, minimum pupil diameter 3 mm,
Analyses: detailed assessment of the retina (thickness, volume,
RNFL), glaucoma (ONH morphology, DDLS), anterior segment
of the eye (pachymetry, angle assessment, LASIK flap, AIOP),
The innovative SOCT Copernicus software version 5.0.2
with a comparative module enables tracking and analysis
of disease progression based on subsequent patient examinations,
The blood vessel recognition system increases the precision
and reliability of result comparisons,
Two measurement modes (vitrous and choroid) allow you
to observe even very subtle eye structures.

Equipment and technical parameters
PC with Windows 7 Professional (PL), Intel Xeon 2.80 GHz processor, 2 TB disk,
NEC Multisync EA223WM monitor, 22′′, resolution 1680×1050 px,
Brother HL-L3210CW printer,
STOLMIK STM3 electric ophthalmic table, height adjustment 64–84 cm,
OPTOPOL ACA 160 anterior segment lens,
Power supply: 230 V, 50/60 Hz, power 150 VA.

Dimensions and weight
Overall: 108 x 62 x 150 cm,
Tomograph: 67 x 50 x 66 cm,
Weight: 135 kg.

Technical condition and warranty
Condition: very good technically and visually,
The device is fully functional, has a current inspection and is ready to work,
