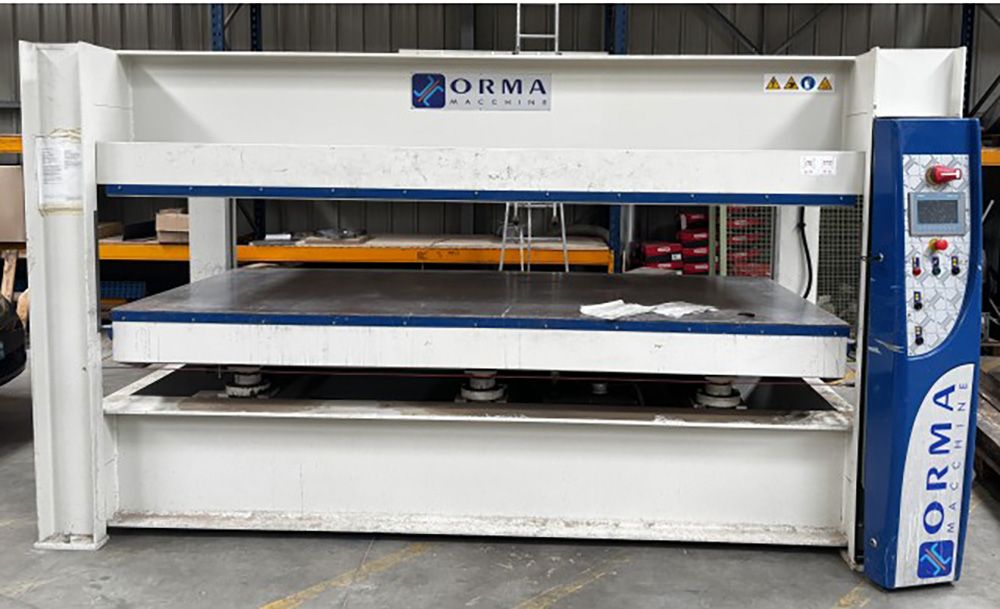

Orma NPC DIGIT 6/110 30/13E

HOT PRESS
CAPACITIES:
- Electric heating plates 3000x1300 mm
Maximum temperature:
- Opening height (Stroke) 450 mm
- ABS control panel with digital control and function adjustment system:
Working pressure / Working temperature / Pressing time
Automatic heating start, programming
- Vertical pressure 5 kg/cm²

OTHER FEATURES:
- Robust, welded frame
- Complete electrical cabinet with all controls
- Power supply: 400V IN 28A Three-phase 50 Hz
- Installed power: 16.5 kW
- Heating via built-in electric resistance plate: 7.2 kW
- 6 lower hydraulic piston cylinders, Ø80 mm diameter
- Perfect movement of the moving plate via a guide, double racks, 2 lengthwise and 2 widthwise, connected by a torsion bar
- CE marking, padlockable disconnect switch, mushroom stop
- Peripheral emergency stop cable, Installation protection grille
- Mobile plate safety locking device for maintenance
Dimensions (L x W x H): 3700 x 1700 x 2000 mm (h.mm)
Weight: 3600 kg
