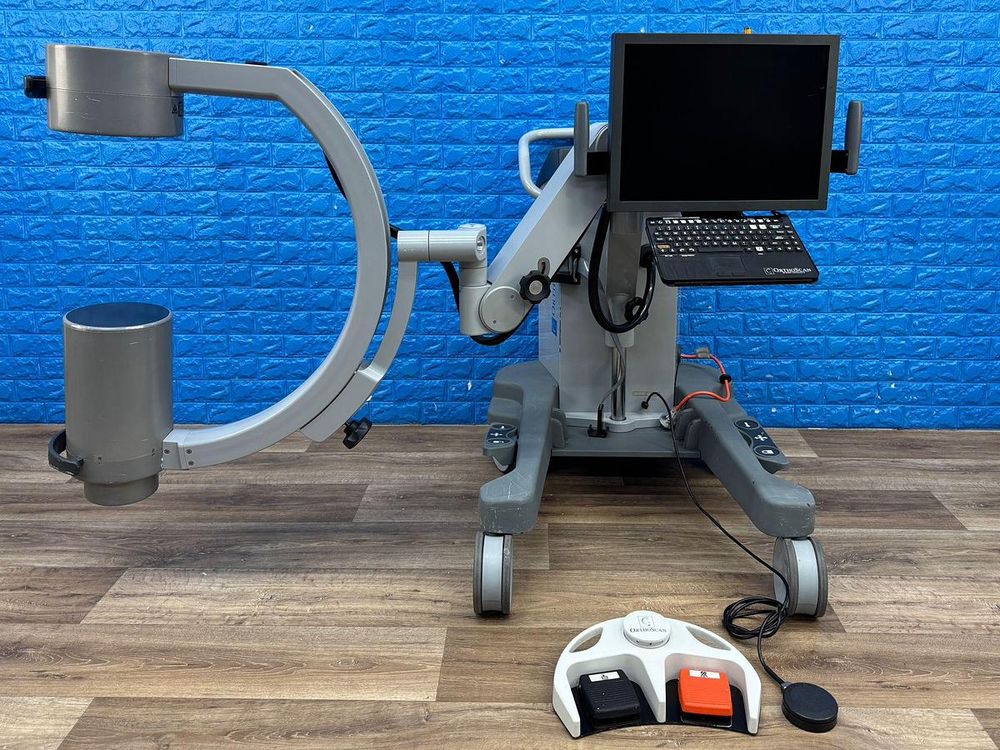

OrthoScan 1000-0004 High Definition Mini C-Arm X-Ray

In good working condition.

Includes:
- OrthoScan High Definition Mini C-Arm X-Ray Model: 1000-0004 YOM: 2011

The OrthoScan High Definition (HD) Mini C-Arm (Model: 1000-0004) is a compact,
mobile fluoroscopy system designed specifically for orthopedic, hand, foot,
and surgical extremity imaging. The 2011 year of manufacture falls into the era of
the image intensifier (II) based HD systems, often known for
offering high-resolution imaging (1k x 1k) at a lower weight and smaller footprint than competitors.

AI Overview & Technical Specifications (2011 Model)
The OrthoScan HD 1000-0004 is built for maneuverability, featuring a "surgeon-driven"
design that allows it to operate without a dedicated radiographer in many jurisdictions.

- Imaging Technology: Image Intensifier (II) based.
- Resolution: 1K x 1K (1,000 x 1,000 pixels).
- Field of View (FOV): 6” and 4” fields of view.
- X-Ray Tube: Focal spot of 50 microns.
- kV Range: 40 – 78kVp.
- mA Range: 0.04 – 0.160mA.
- Frame Rate: 30 fps (frames per second).
- Storage: Internal storage for 8,000 images, with capability to save to a USB memory stick or DVD.
- Monitor: 20.1" Monochrome TFT LCD, typically with height adjustment.
- Weight: Approximately 400 lbs (180 kg).

Key Features
- Small Footprint: Designed to navigate small operating rooms and fit easily alongside other equipment.
- Orbital Rotation: Offers improved rotation, typically around 120°–160° depending on exact configuration.
- Sterile Field Controls: Bilateral controls on the X-ray tube head allow surgeons to operate the unit while maintaining sterility.
- Automatic Image Enhancement: Features automatic adaptive noise suppression and brightness/contrast adjustments.
- Connectivity: DICOM 3.0 compliant, allowing images to be sent directly to PACs systems.
- Footswitch: Frequently paired with an infrared (cordless) footswitch, reducing clutter in the operating field.

Clinical Utility
- Orthopedic Trauma: Ideal for setting fractures and placing implants in distal extremities.
- Joint Injections: Provides real-time guidance for procedures on small joints.
- Pediatric Care: Its low-dose imaging capabilities make it suitable for pediatric applications.
