oscilating foam mixer
ASIA (China - Taiwan - HKG)

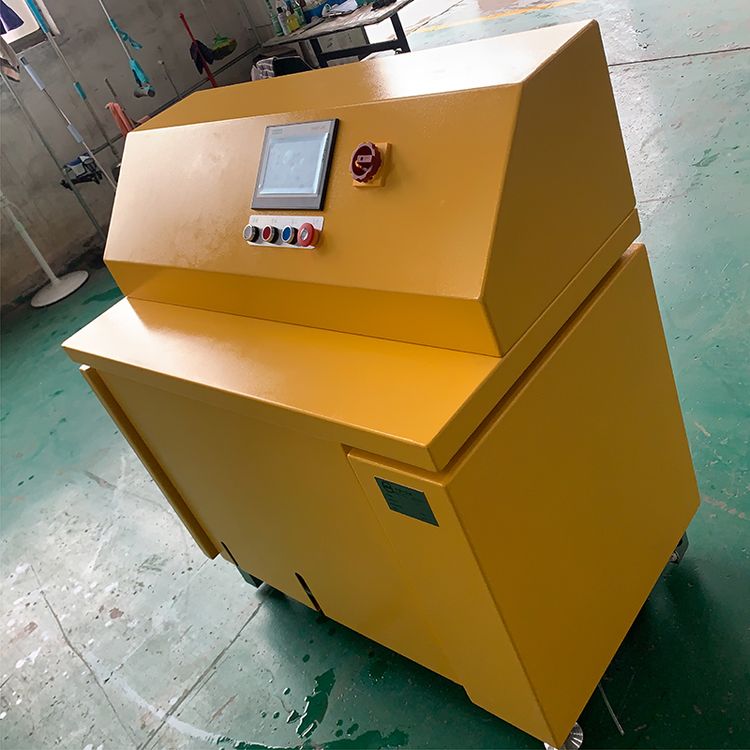

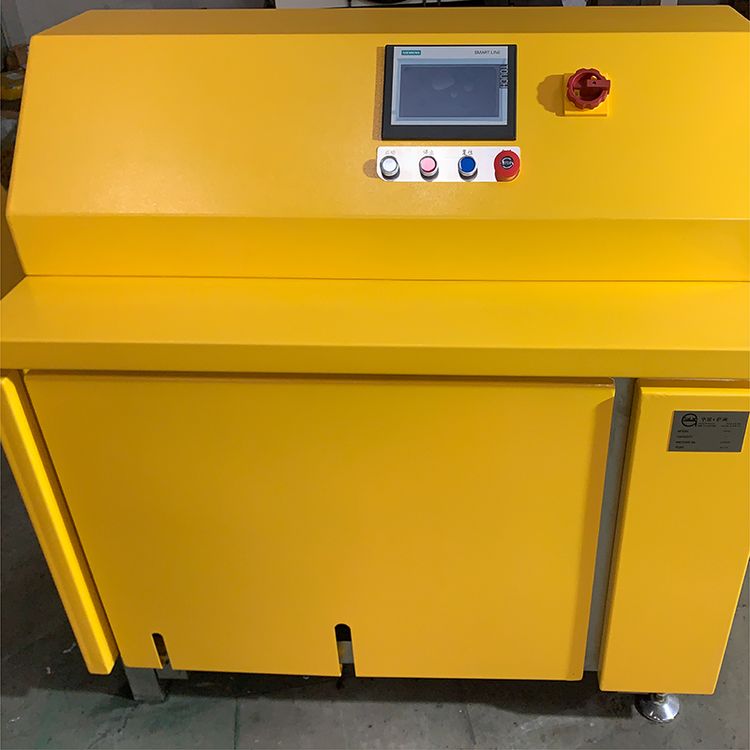

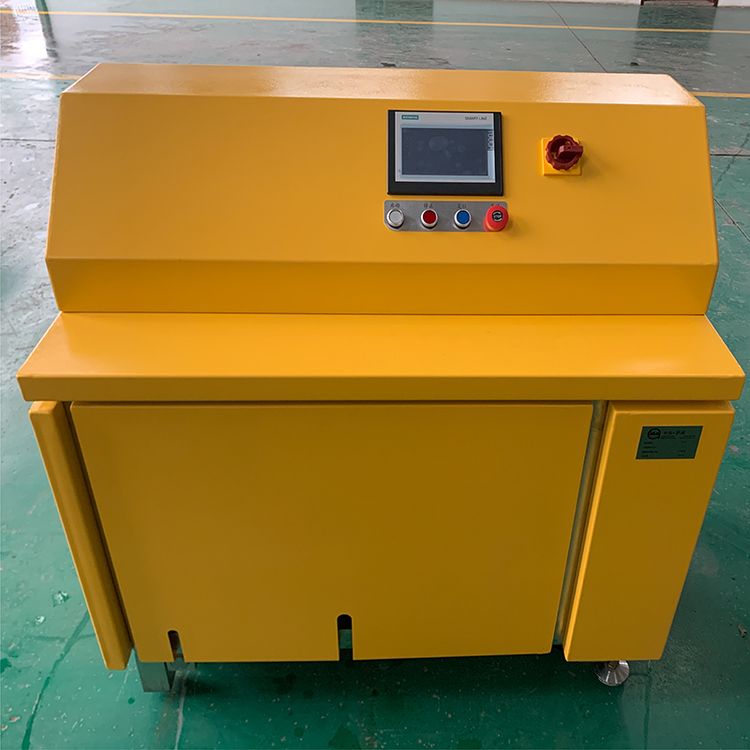

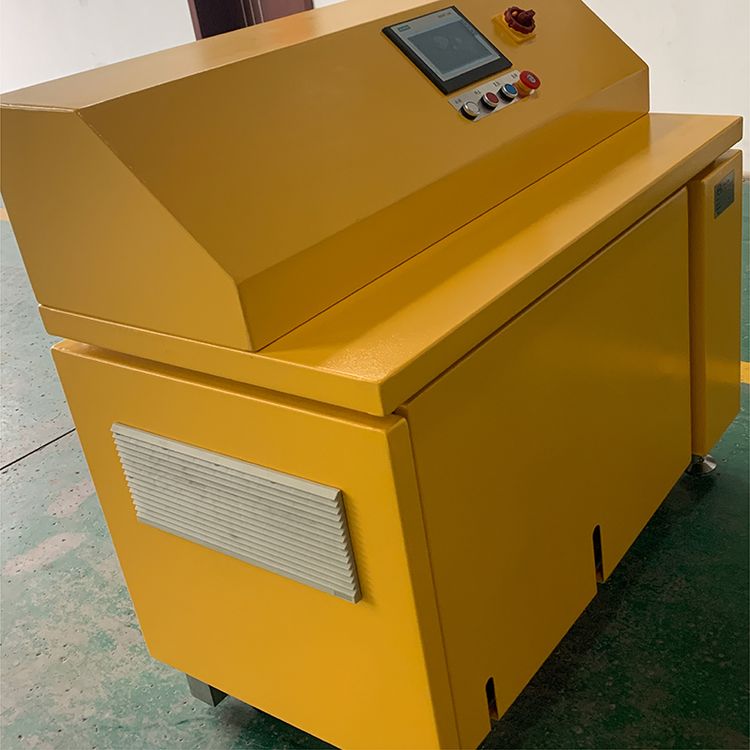

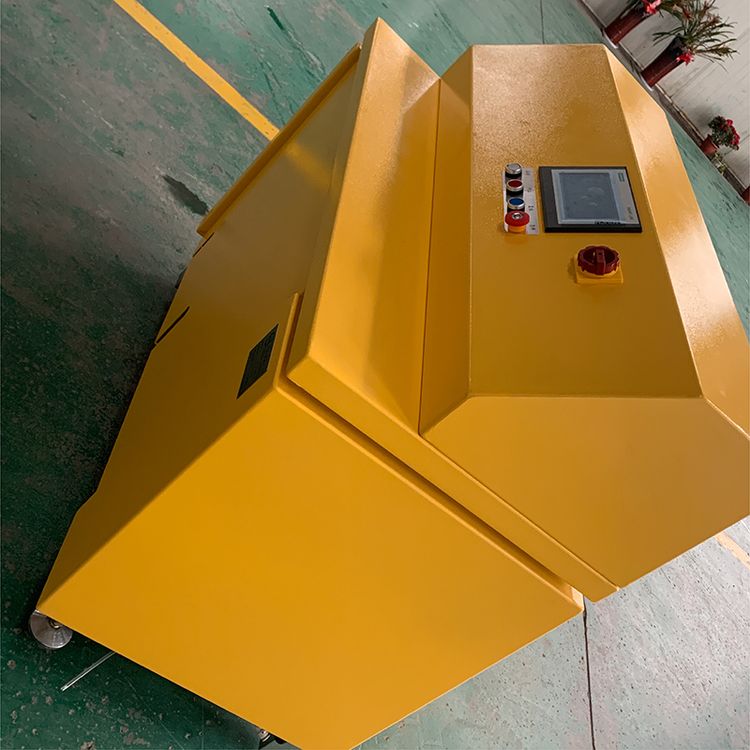

Mixer with oscillating mixing head system
Gas and medium are homogenised by alternating movements of the mixer
head and the inertia of the mass.
Oscillating mixer head matching your requirement .
VARIABLY EXTENSION OF MIXING HEAD WITH DIFFERENT MIXER ELEMENTS
The offer ranges from simple mixer elements with perforated disks to laser-cut disks with specially developed cross-sections. Powder,fibres and entire solid parts can be aerated together with the product. Along with the know advantages of the variability, the other advantages of the system are:
1,No mechanical mixing head shaftseal: There are no rotating parts and liquids who are in contact with the product.
2, Gentle feeding thanks to low shear force: The temperature of the product stays almost on same level during aeration process.
3, Clearly reduced operating and maintenance costs: No wear parts means no costs. Additionally a high service friendlyness and the ability to change mixing heads and elements very quickly.
4,Up to 70% energy saving compared to conventional systems in the market: Thanks to the special design of this aeration system the necessary drive capacity are considerably reduced.
EASY CLEANING THANKS TO THE NEW CLEANING SYSTEM
The new cleaning system for pump and mixing heads includes the cleaning of the suction hose additionally. By activating the cleaning process using the control panel of the mixer, air and the cleaning liquid is alternately pumped into the system. Thus, the pumps direction of rotation changes depending on the time and the cleaning effect is significantly improved. The cleaning time reduces accordingly.
