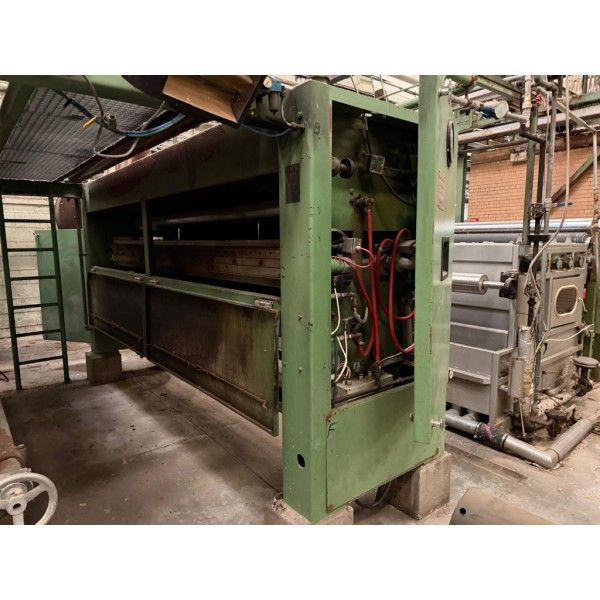

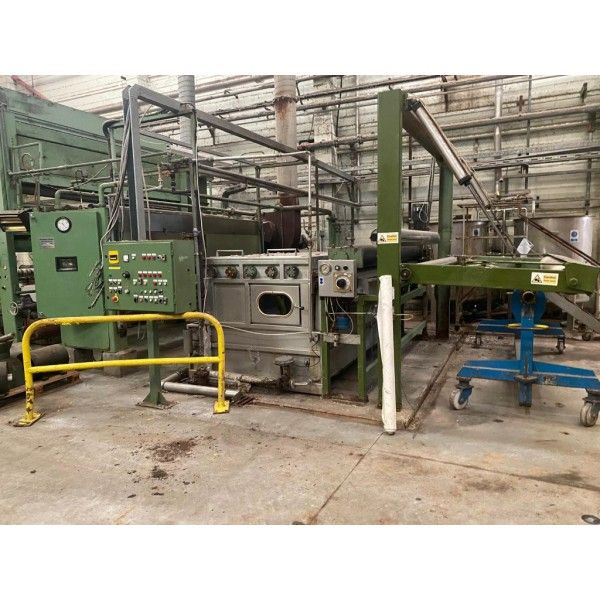

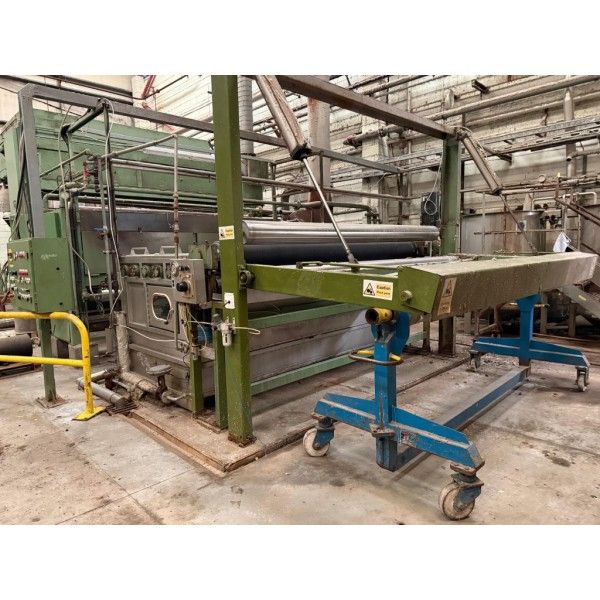

Osthoff PK86 300 Cm Singeing

MAXIMUM FABRIC WIDTH 3.000MM
ORIGINAL YEAR 1994 (RE-CON TO ORDER YEAR 2026)
PRE-TENSION ENTRY WITH E+L GUIDING KF 20-20 BRUSHING BACK AND FACE
LINKED TO ONE EXTRACTION SYSTEM ADJUSTABLE
MAXIMUM FLAME WIDTH 3.100 MM
MACHINE MAXIMUM OPERATING SPEED 120 METERS/MINUTE
GAS NATURAL PRESSURE REQUIRED 225MM WG
GAS CONSUMPTION (AVERAGE) 270,000 K.CAL/HOUR
2 X GAS BURNERS WITH AUTO IGNITION ELECTRODES VARIABLE SINGEING POSITIONS
WITH PNEUMATIC CONTROLS 2 AUTOMATIC GAS/AIR MIXTURE CONTROLLERS,

COMPLETE GAS TRAIN AUTO FLAME WIDTH & FLAME HEIGHT CONTROLS 2 -AIR FANS & MOTORS,
AUTOMATIC FAST FLAME SHUT-OFF SYSTEM MACHINE UNDER SPEED RELAY,
FULL SAFETY SYSTEM TO CE STANDARD
COMPLETE SET FABRIC GUIDE ROLLERS 6 - PTFE TEFLON COATED NON-STICK
SURFACE FABRIC GUIDE ROLLERS MOUNTED IN SF BEARINGS 4 STAINLESS STEEL
WATER-COOLED SINGEING ROLLERS COMPLETE WITH ROTARY UNIONS
AND WATER-COOLING PIPE WORK FUME EXTRACTION SYSTEM
WITH INTEGRAL A.C. MOTOR DRIVEN HIGH CAPACITY FAN
AND INTERNAL GALVANISED STEEL DUCTING WITH ADJUSTABLE DAMPER

OSTHOFF DESIZING TANK WITH 2 BOWL PADDER
ONE OPEN WIDTH DESIZING - WASHING TANK,
WORKING WIDTH 3.000 MM 20 METERS CLOTH CONTENT,
OMEZ 2 BOWL SQUEEZE PADDER WITH FINE TRIM COMPENSATOR
TAKE OFF ON TO A-FRAMES BY SURFACE BATCHER
