OTC FD-V6L 6 Axis

Advanced PLC functions with ladder diagram editing via teach pendant
Touch screen display with jog dial operation
On-screen help with full manuals
Multi-screen viewing up to 4 screens
3-position enable switch for safety
640x480 VGA color screen with LED backlight
Icon-based teaching interface
Teach pendant included
Network capability: Ethernet, DeviceNet, PROFIBUS
Articulated arm with wide working range
Large memory with 40 input / 40 output signals
Windows XP-based open architecture
FD11 robot controller
Supports most welding applications
Single-source components from OTC DAIHEN

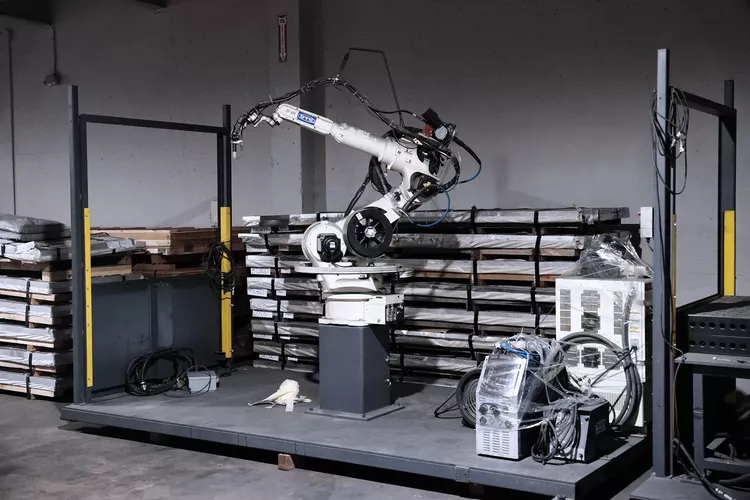

Welding cell included
1 ECO-ARC 200L mechanical assembly
Common base
Robot pedestal (800mm)
Center divider and integrated trailer assembly
Two stationary tables (62" x 24")
Tables positioned 90 degrees apart
Floor plate
Pneumatic shutter door at operator load/unload
2-station zone kit
Pneumatic shutter door assembly
Troax safety fence assembly
Includes one part holder for workstation tables
