1600 two shafts, 3 servo-motor
Ref :
2528988-4-MT
Condition :
Used
Manufacturer :
-
Model :
-
Size :
-
Width :
1600
Type :
two shafts, 3 servo-motor
Year(s) :
2020
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

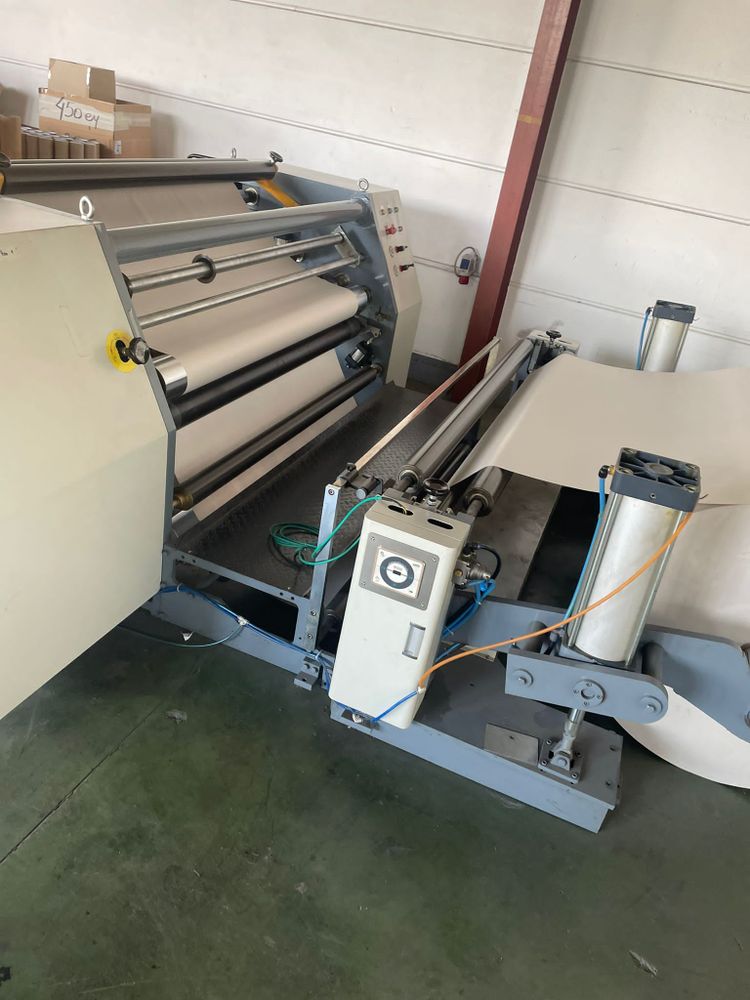

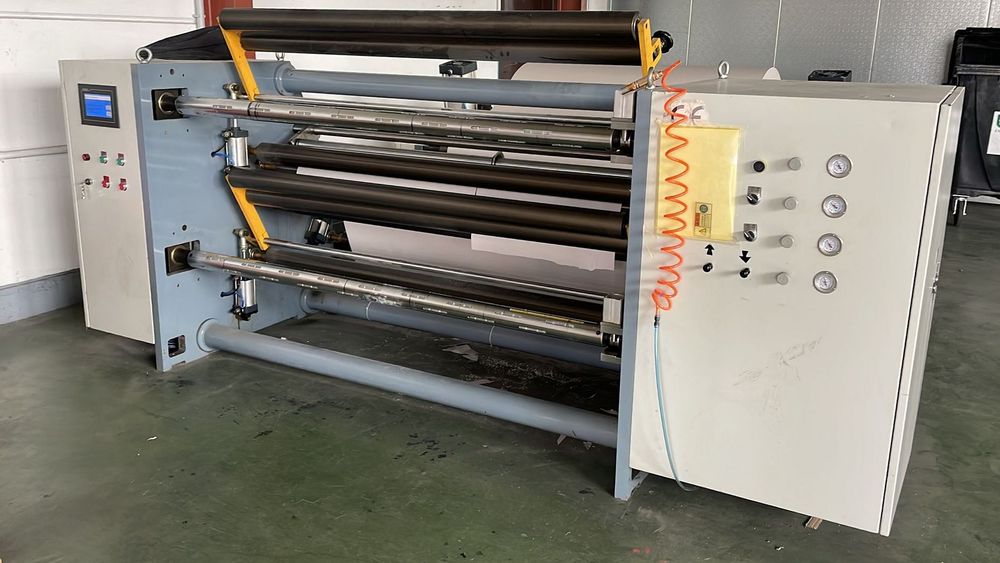

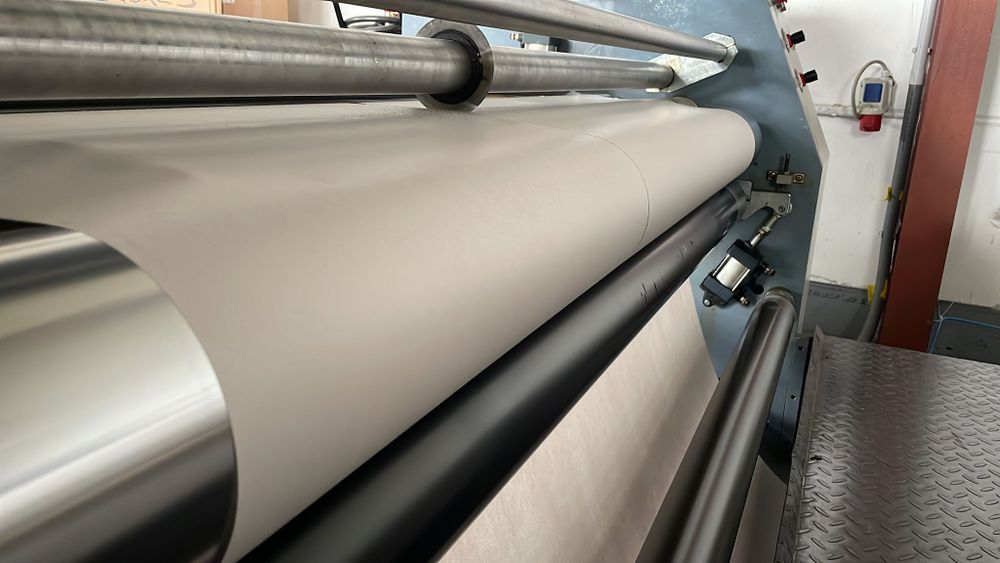

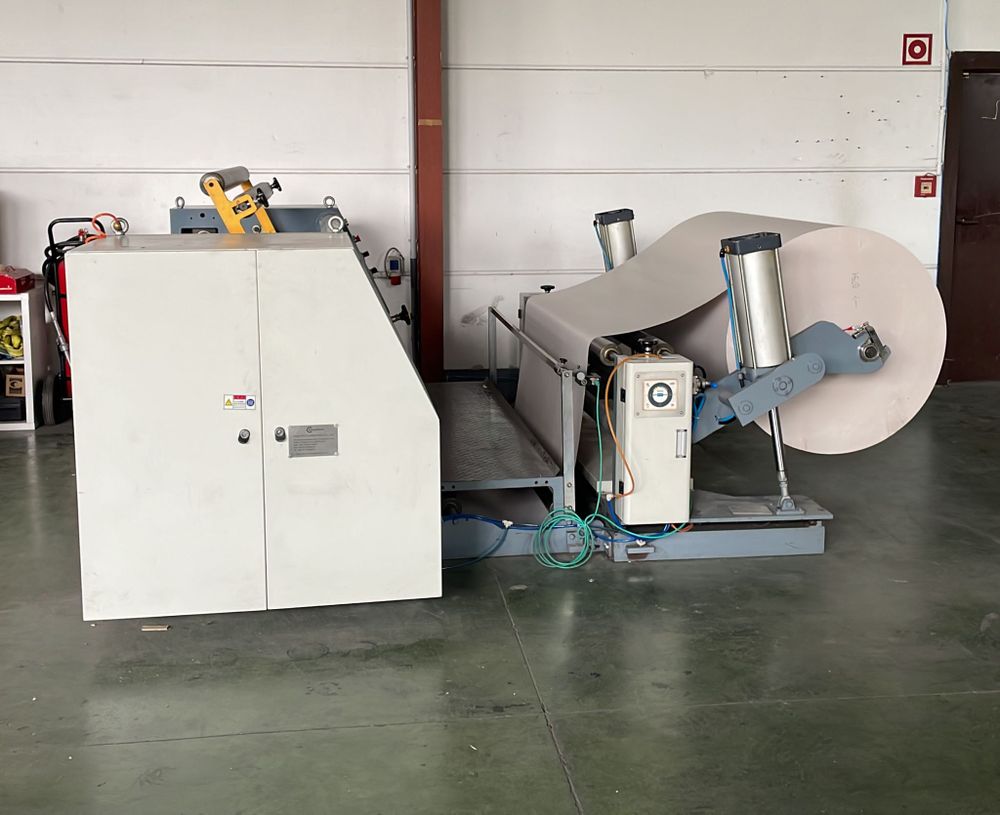

RTFQ-1600BC auto slitting machine (3 servo-motor)
High speed slitting-rewinding machine for PET, PE, LDPE, HDPE, paper, laminate and other materials in excellent condition (2020 release).
Main futures:
1. Slitting/rewinding speed up to 300 m/min
2. Max web width – 1600 mm
3. Three independent servo-motors: for unwinding, traction and rewinding with fully automatic tension control
4. EPC web guide system
5. 10 sets rotary blade

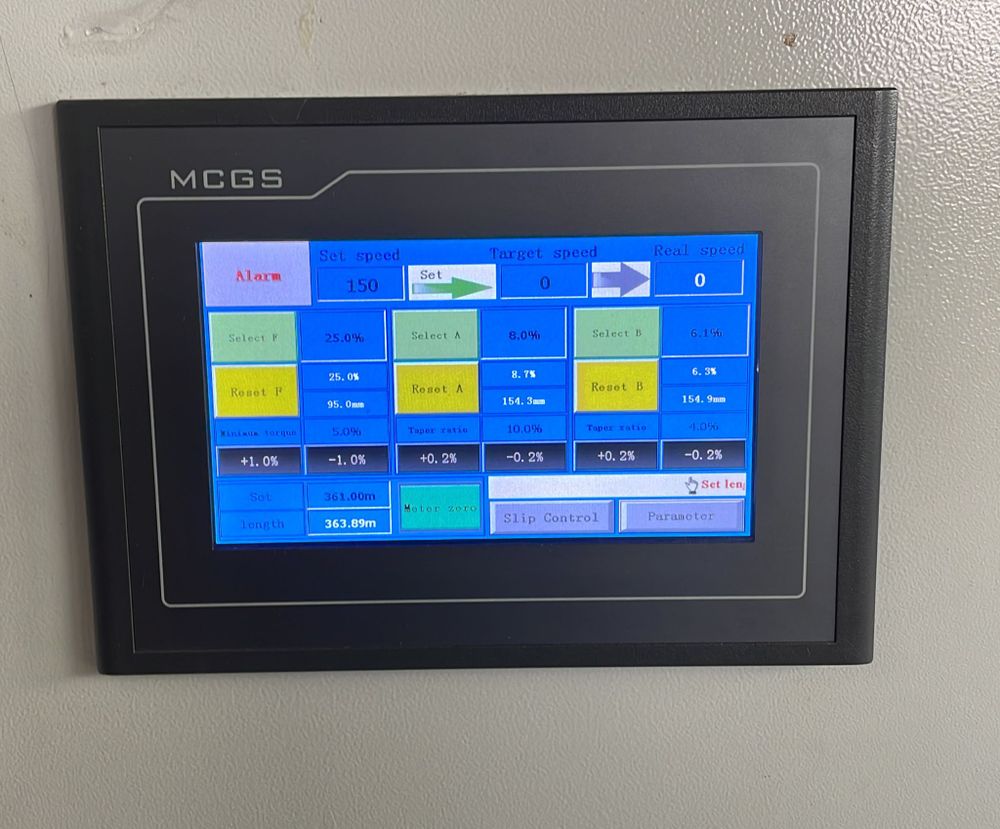

6. PLC programmable unit with a touch screen (Siemens)
7. 3 inch shafts
8. Max unwinding diameter – 1200 mm
9. Max rewinding diameter – 600 mm
10. 40 mm thickness steel frame
