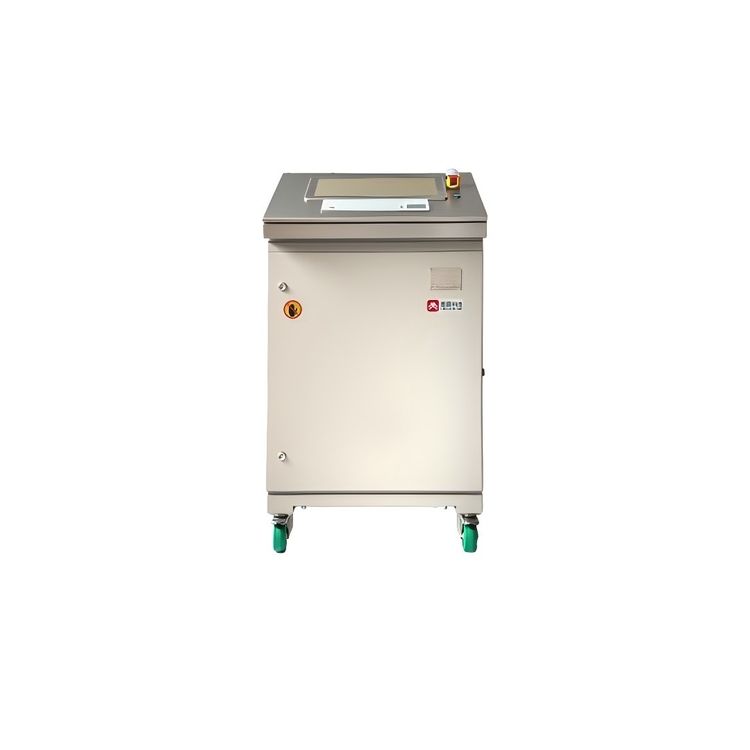

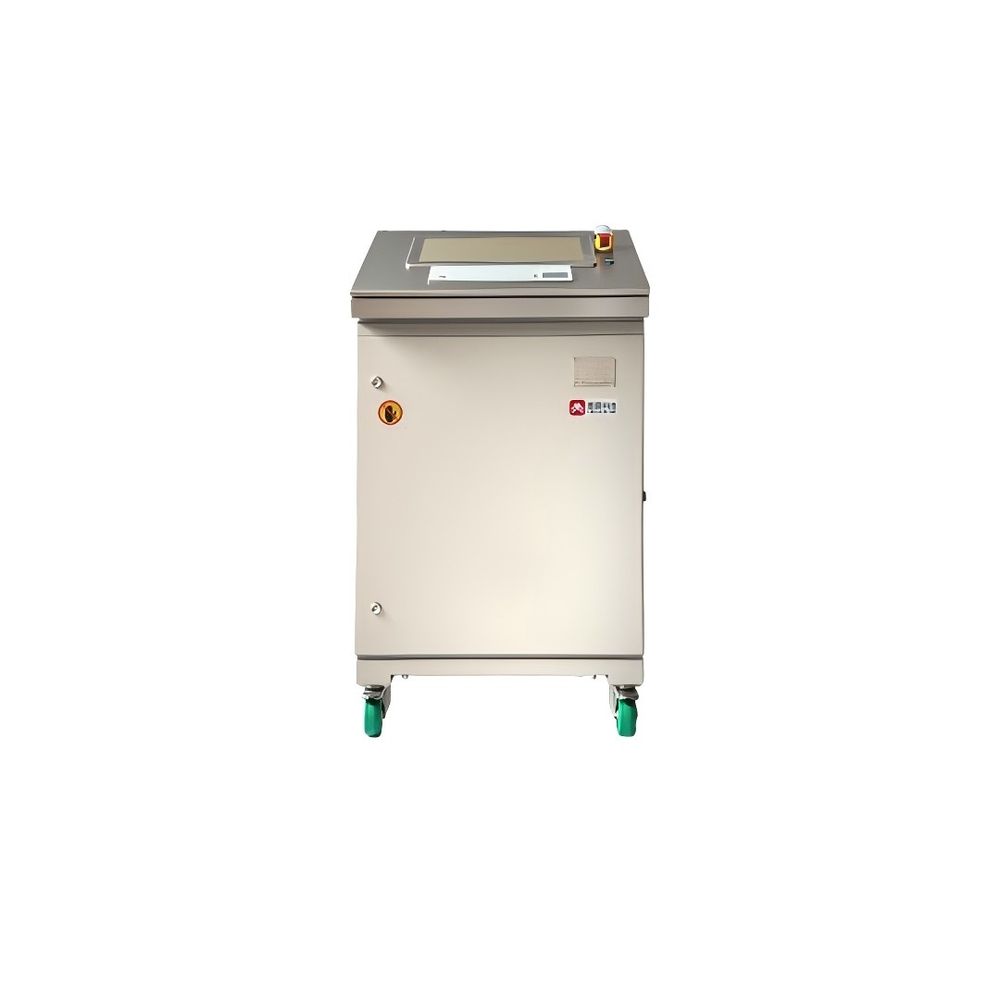

Other Automated Chromatography System

Product overview
The Bio® fully automated chromatography system is designed to meet cGMP and ASM BPE standards. It combines flow-path modules and automated controls to perform processes like balancing, sample loading, elution, automatic collection, and CIP (cleaning-in-place) continuously. This automation streamlines workflows, boosts efficiency, stabilizes production, and ensures consistent, repeatable product quality. The system can also be custom-designed to fit specific facility layouts or unique process needs.

Product features
1.The system uses top-tier imported components for critical parts, ensuring reliable
performance.
2.It complies with cGMP requirements and is manufactured to ASME BPE standards.
3.Product-contact surfaces are made of FDA-compliant and USP Class VI certified materials
4.Full audit trail compliance ensures traceability of all raw production records.
5.Proven software guarantees stable and dependable system operation.


Model: Bio-LC600
Pump: Quaternary diaphragm pump isocratic (S) single pump, gradient (G) dual pump
Flow Range: 10-600 L/h
Flow Accuracy: Single pump, 1x E+H mass flow meter, Dual pump, 2x E+H mass flow meters. Detection accuracy
±0.5%, system flow accuracy ±2%
Inlet/Outlet Valves Inlet: 2-8 single pumps; 4-16 double pumps; Outlet: 2~8
Pressure Sensor: 2x LABOM pressure sensors, range 0-10 bar, accuracy ±0.1 bar
Bubble Detector: Bubble Detector SONOTEC bubble detectors at inlet and pre column (detects empty/full tubes), or AQ bubble sensor (adjustable sensitivity)
UV: OPTEK fixed wavelength (280nm/254nm), range 0-3AU (mercury lamp, 8000h lifespan), or ECOM variable 4wavelength (200-400nm), range 0-5AU (mercury lamp, 2000h lifespan)
pH: HAMILTON, range:0-14, accuracy: ±0.1, display accuracy: ±0.01, temp. range: 0-130°C. Supports online calibration with report
Cond: HAMILTON,range:1μS-300mS/cm,1μS-100mS/cm accuracy:±3%,100-300mS/cm accuracy.±5%, or OPTEK,range:1μS-850mS/cm,accuracy:±2%
Tubing material: ASME BPE(316LSS),Ra ≤ 0.4μm
System pressure: 6 bar
Bubble trap volume: 1000ml
Tubing size : 1/2”
Power supply: 220VAC 50Hz
Power: 1kW
Size(cm)① : 123H*70W*113D
Weight②: 200kg
Utilities: Compressed air 57 bar, tubing connector for OD 10mm air hose
Note: The ①size and ②weight equalization system is slightly different from the gradient system;
