CROSSED MIXING SYSTEM FOR PLASTIC MATERIALS

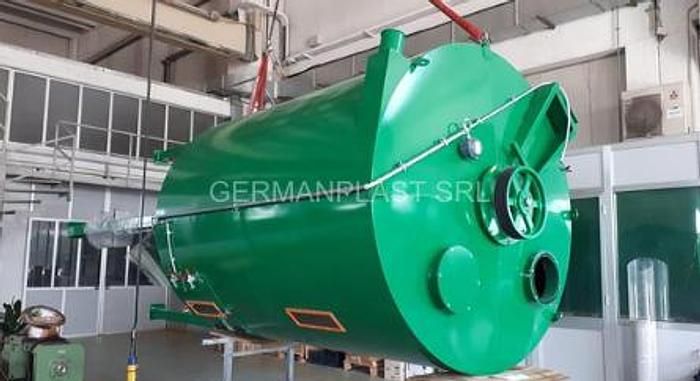

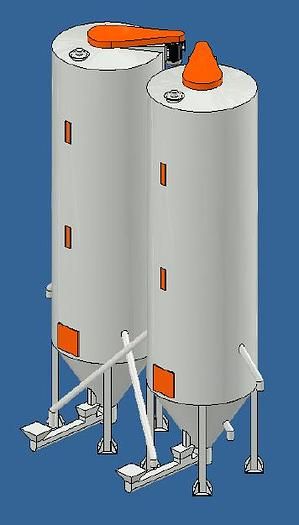

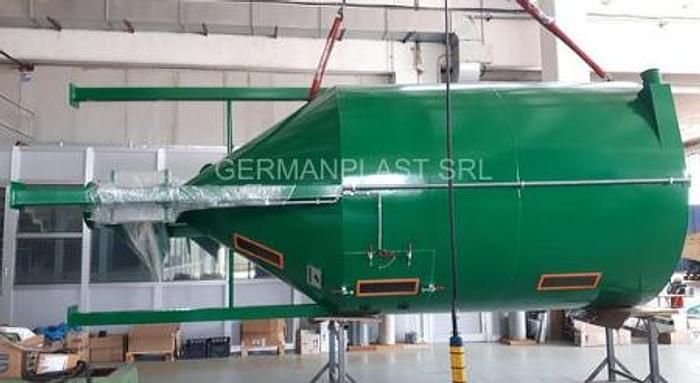

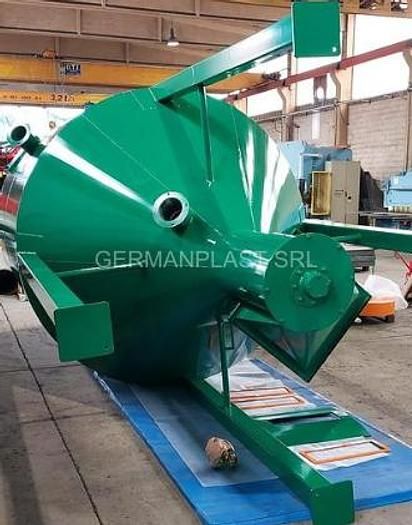

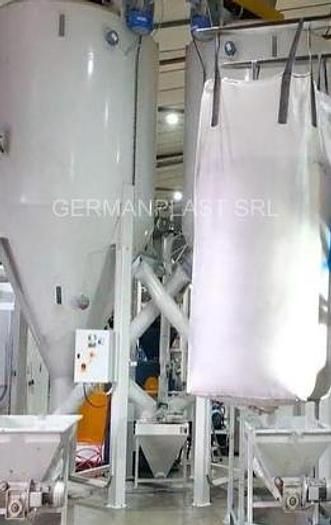

The system includes n.2 x 30.000 lt. (or bespoke) vertical mixers which fill each other through the endless screw conveyor.
for each mixer :
total height approx 7.750 mm including transmission group
max diam. 3.000 mm.(exceptional transport)
constructed in painted electro-welded carbon steel.
inner auger diam.350 mm.

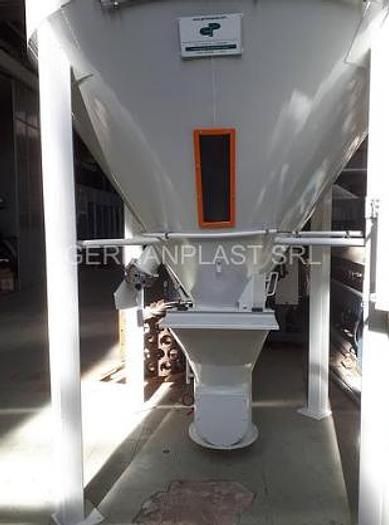

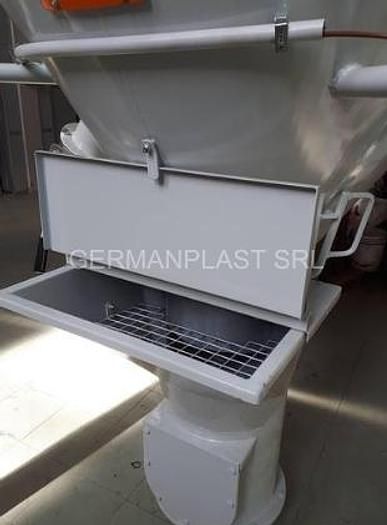

lower hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600×500
pulley and belt transmission, protected by carters
inspection doors with safety limits
cleaning hinged door with on bottom of cone for complete discharging, with safety opening

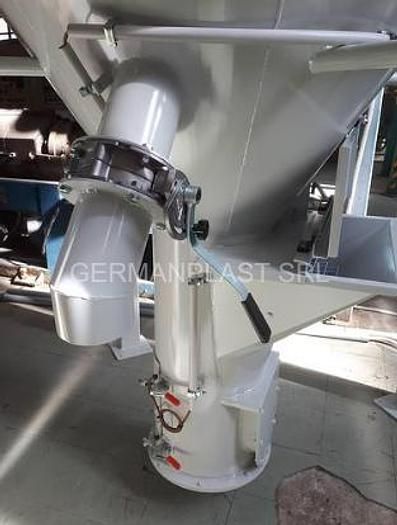

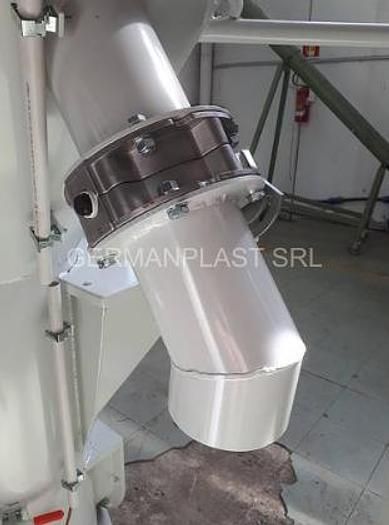

bottom discharging pipe on the other mixer'shopper with pneumatic valves

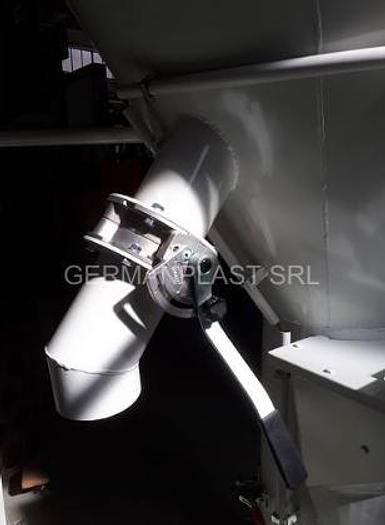

side discharging pipe to big bag with valve mm.at 2.700 mm from ground with pneumatic valves
electric min/max level indicator, paddle type
N.1 loading hopper with conveying screw to one of the 2 mixers
discharging pipe with valve to central collection hopper
electric motor 22 kw
dust sleeve on top
complete with control panels for each mixer
electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V
CE compliance, drawings and instructions manual in English.
---------------------------------------------------------------------------------------
COLLECTION HOPPER
from both of the mixers
size 600 x 600 mm.
screw Ø 150 mm.
1,5 driven lifting screw
5.500 mm long
bearings on ends
