Other 100ml Binary Preparative HPLC System

The system is equipped with two EMP0100 preparative liquid chromatography pumps (100ml/min) and one EUD2000 UV detector, which can realize the dual-pump high-pressure gradient elution mode. Tailor your solution to meet your chromatographic amplification and purification needs.

Configure your preparative HPLC system, from injection to inspection, and select different materials, flow rates, valves, and detectors. High pressure infusion pump pump head and liquid contact materials can be selected SS316L, titanium alloy, PEEK, etc., suitable for the special requirements of different systems. Dual wavelength UV-VIS detectors for extended detection range and can also be equipped with differential refraction detectors or evaporative light detectors. The system is flexible and can be used with 20-50mm pre-filled columns and DAC-50 series columns.

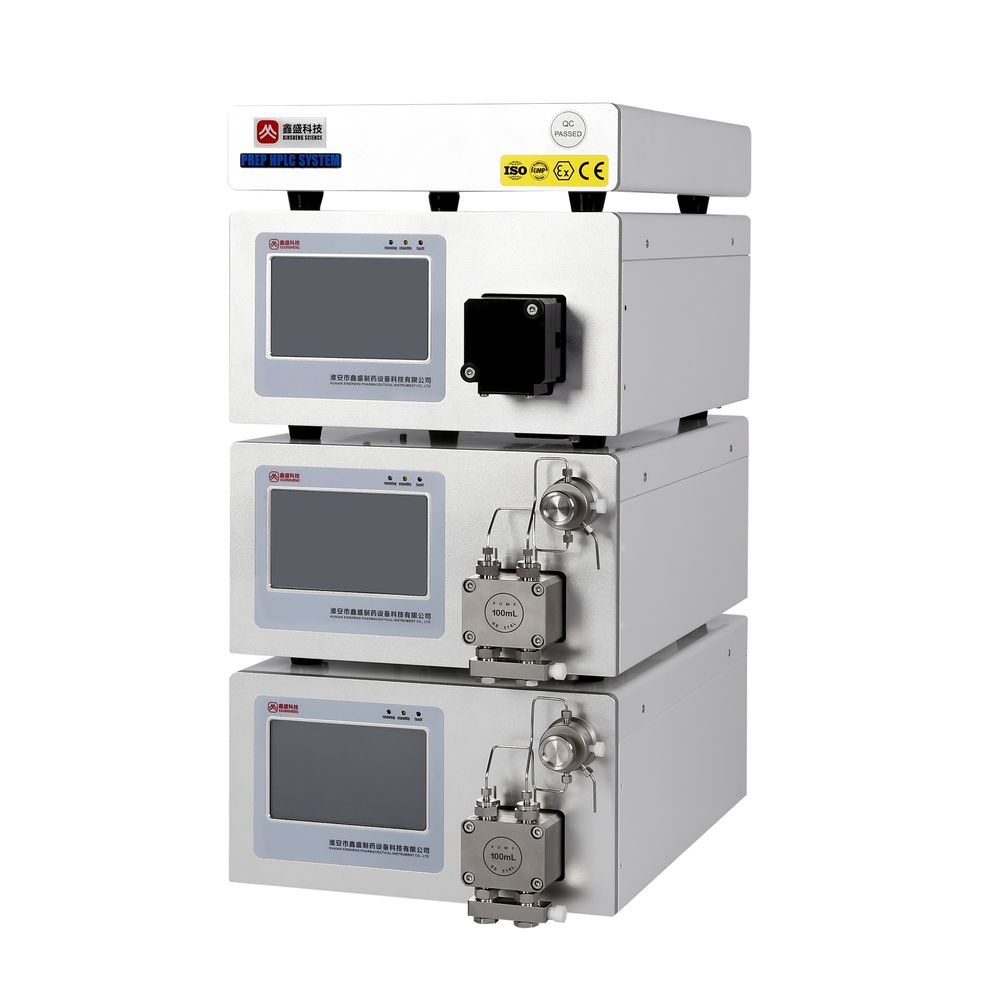

100ml Binary Preparative HPLC System-Touchscreen Model
Article Number: LC021017T
Model: M-Prep EC2010
Prep HPLC Pump: 100ml/min(*2)
UV Detector: 190-400nm（deuterium and tungsten optional）
Preparative Flow Cell: 1/16
Manual Injection Valve: Standard(analytical or preparative injection valve)
Sample Loop: 10ml(optional 20ml)
Preparative Dynamic Mixer: 1/16",10Mpa,316L
Online Filter: 30mm(1/16"),10Mpa,316L
Chromatography Workstation: LabChrom
Solvent Tray: Standard
Start-up Kit: Standard
Fraction Collector: Optional(eight channel)
ID30/40/50 Prepacked Column: Optional
ID50 Spring Column: Optional
Adaptive DAC Column: DAC-50 series column(optional)
