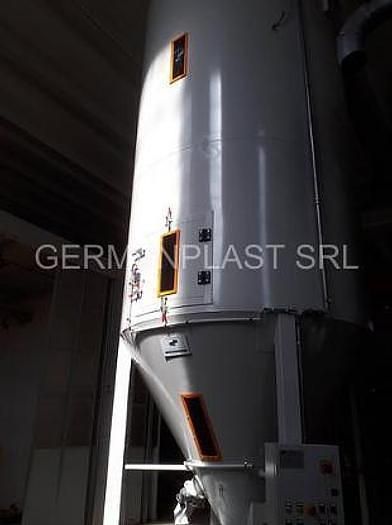

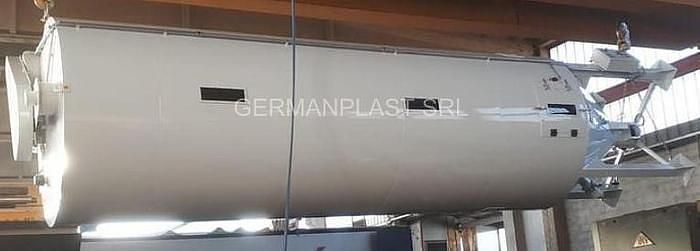

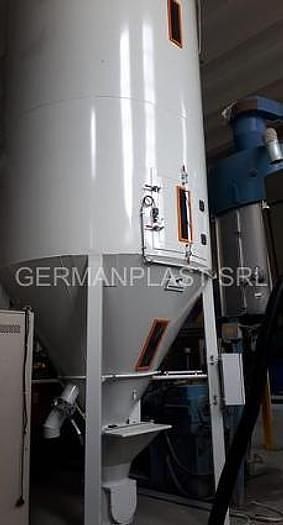

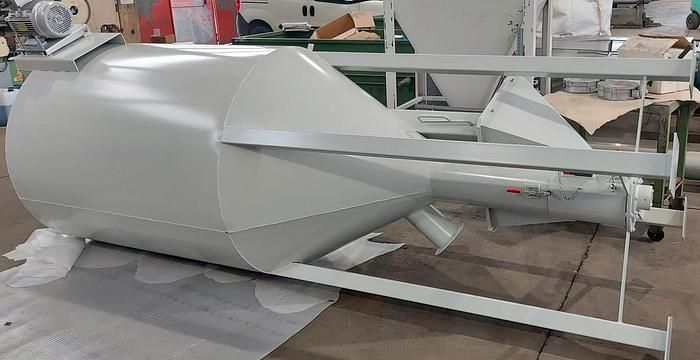

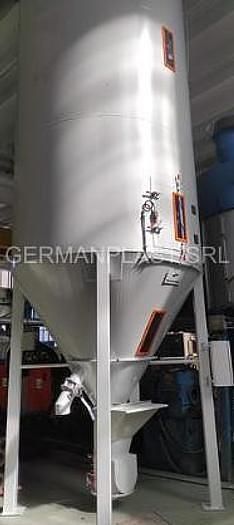

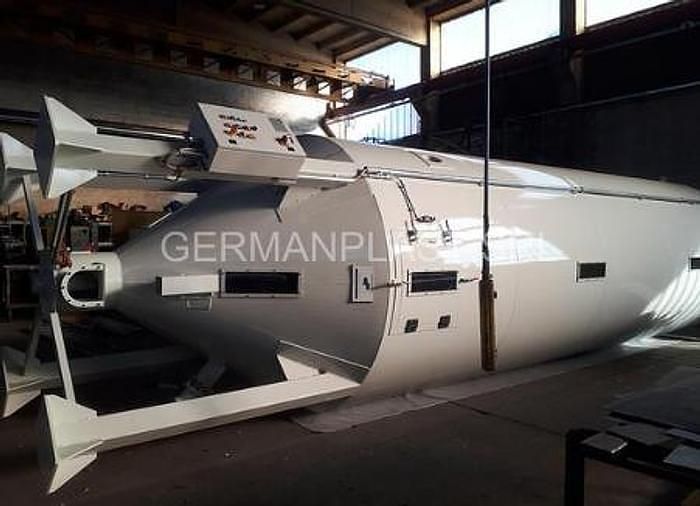

VERTICAL MIXER
5.000 lt.capacity
with horizontal loading screw and hopper
total height approx 4.500 mm including transmission group
max Ø 1.800 mm.
constructed in painted electro-welded carbon steel.
inner auger diam.350 mm. lower loading hopper with safety grid and sampling shutter, complete with anti-dust cover, mm.600x500
pulley and belt transmission, protected by carters

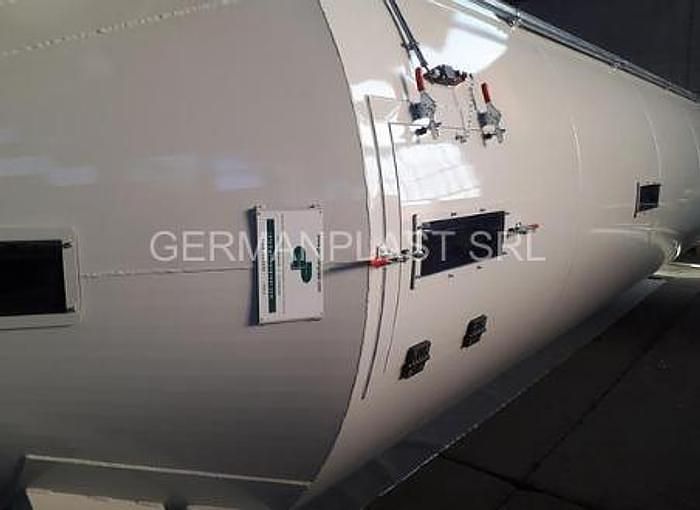

inspection doors with safety limits

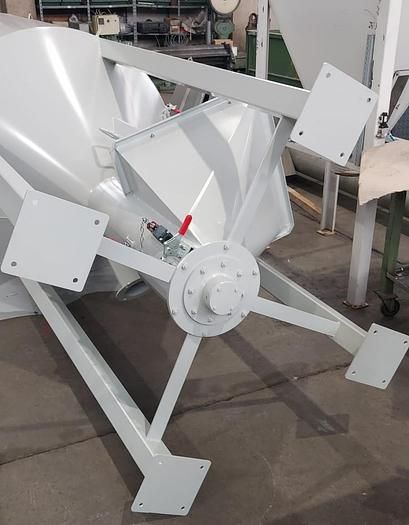

cleaning hinged door on bottom of cone for complete discharging, with safety opening

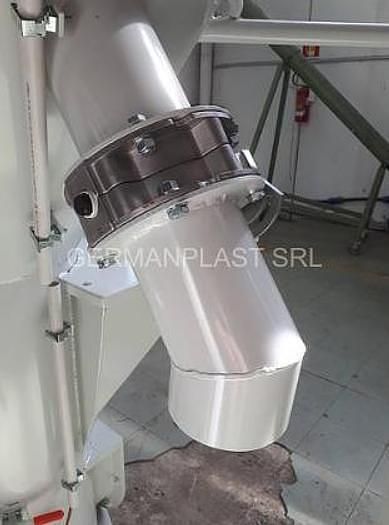

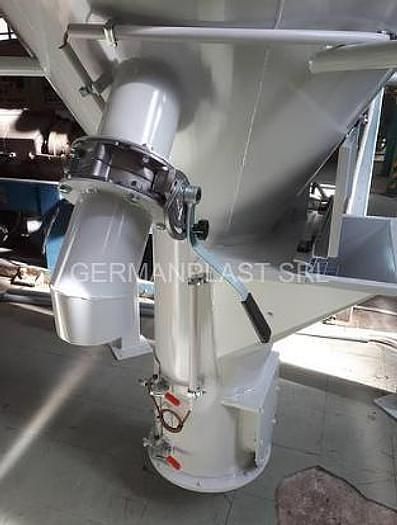

side discharging pipe to big bag with valve at 2.500 mm from ground
max electric level indicator, paddle type
automatic greasing kit
7,5 kw drive
complete with control panel.
electric voltage: 400 V, 50 Hz, auxiliaries a.c. 24 V
CE compliance and instruction manual
