Famatex 230 Cm Coating and drying line
EUROPE (Central and Eastern)
1 used Coating and drying line Famatex
For coating of woven fabrics with paste and foams and for setting
Consisting of:
Coating machine and drying stenter Famatex
Producer: Famatex, Germany
Y.o.c. 1986, Year of total overhaul (revision): 2004
Working width 2300 mm
Mechanical velocity: 3 – 50 m/min
Installed power 100 kW, 380 V, 50 Hz
Heating: gas propane-butane (consumption for 1 shift [8 hours] – ca. 4500 L/ month)
It is possible to change of the nozzles in the burner for gas natural;
Max. Working temperature: 220°C

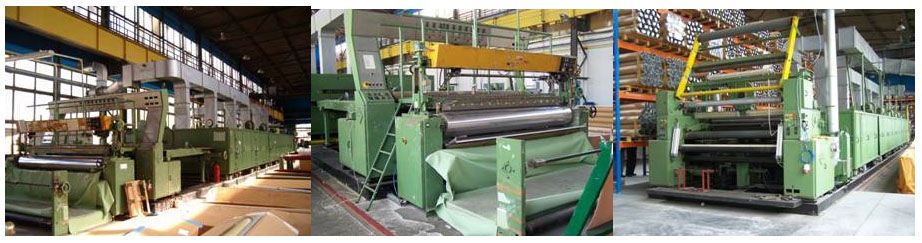

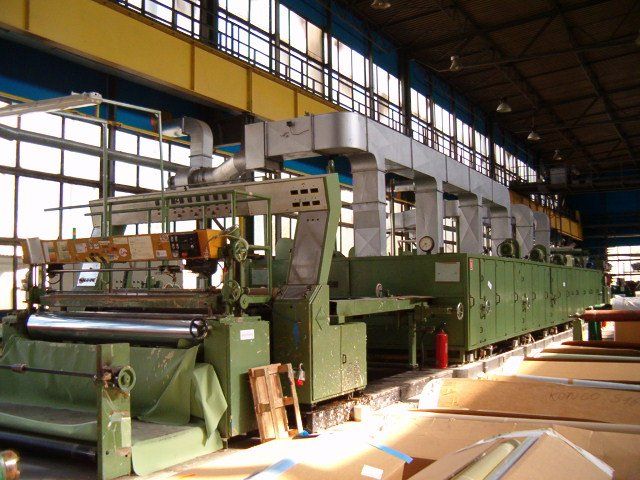

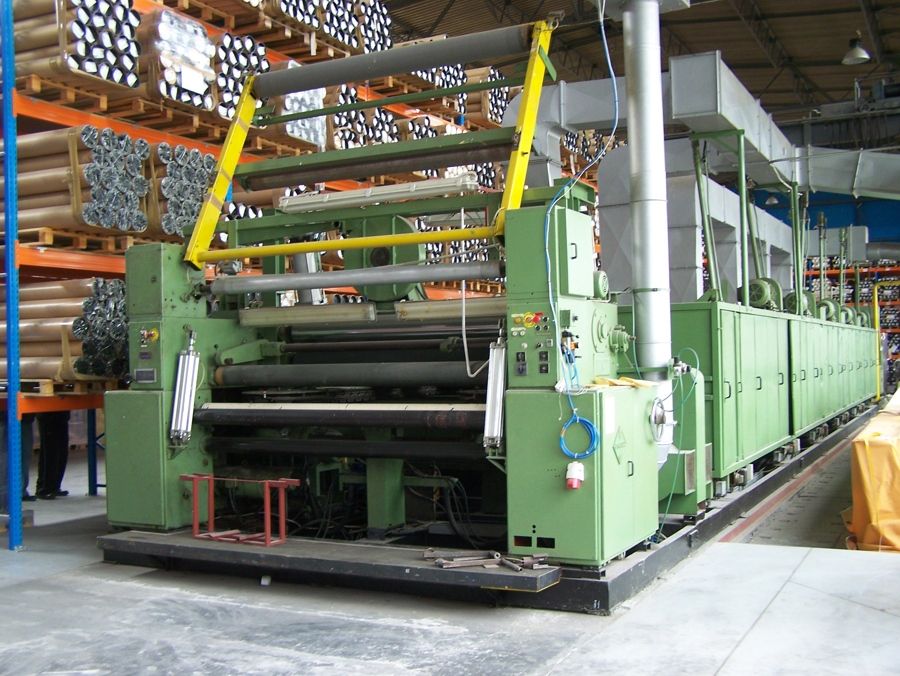

Line consisting of:

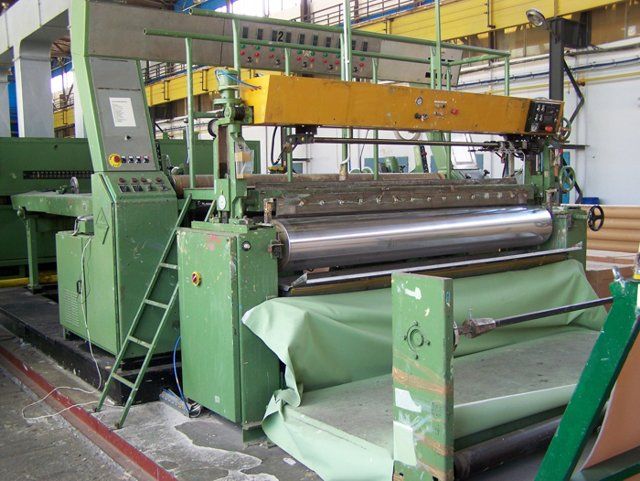

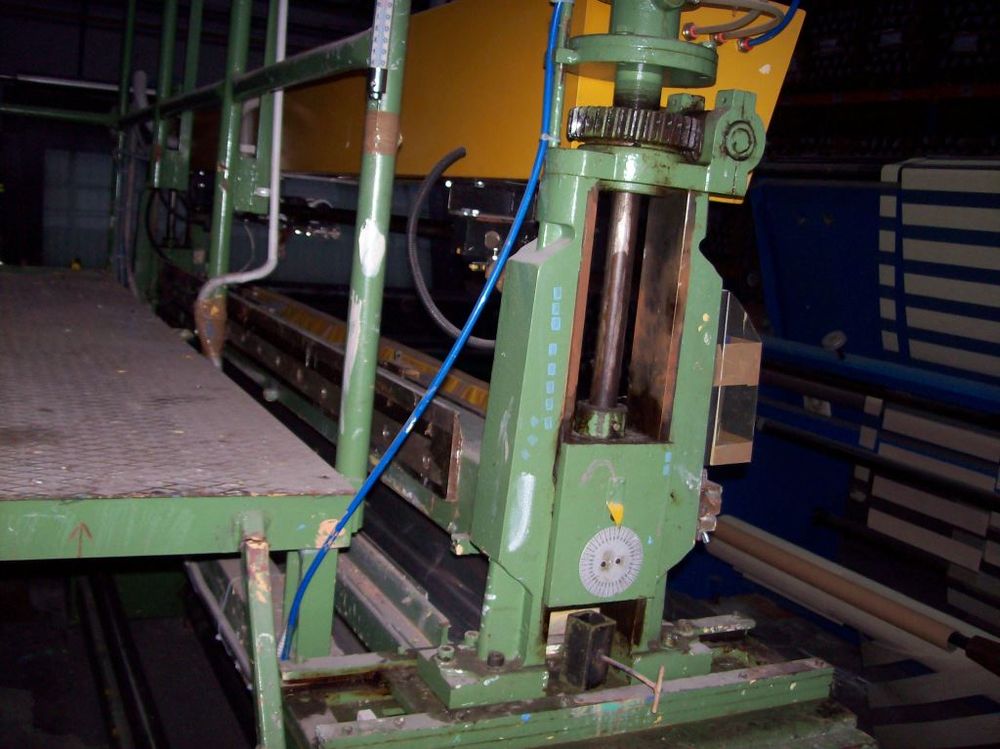

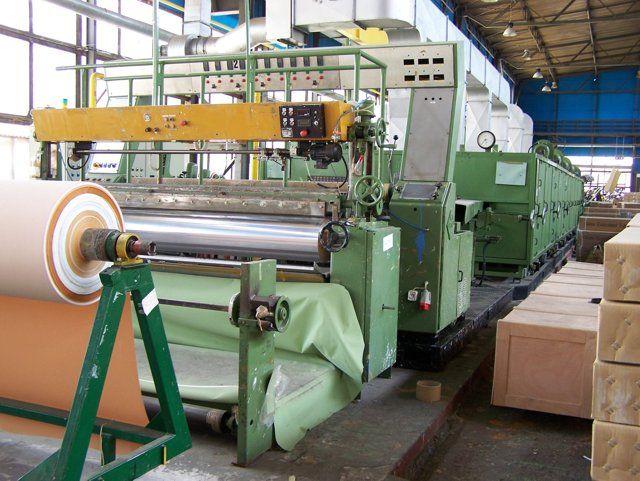

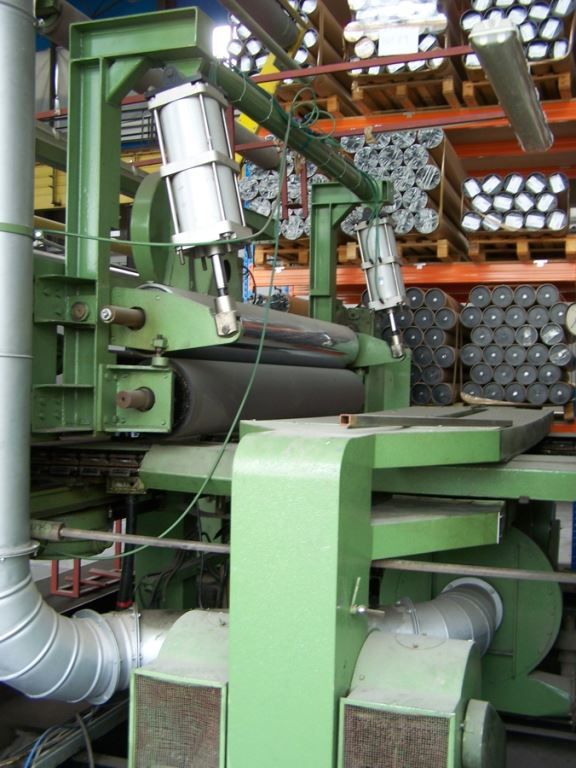

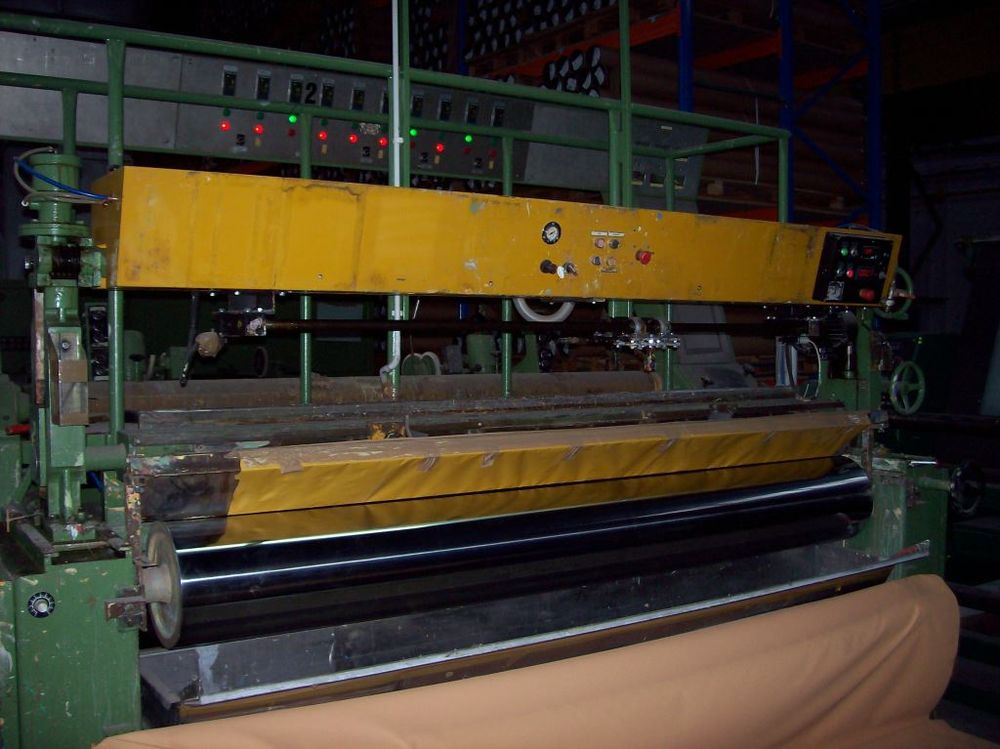

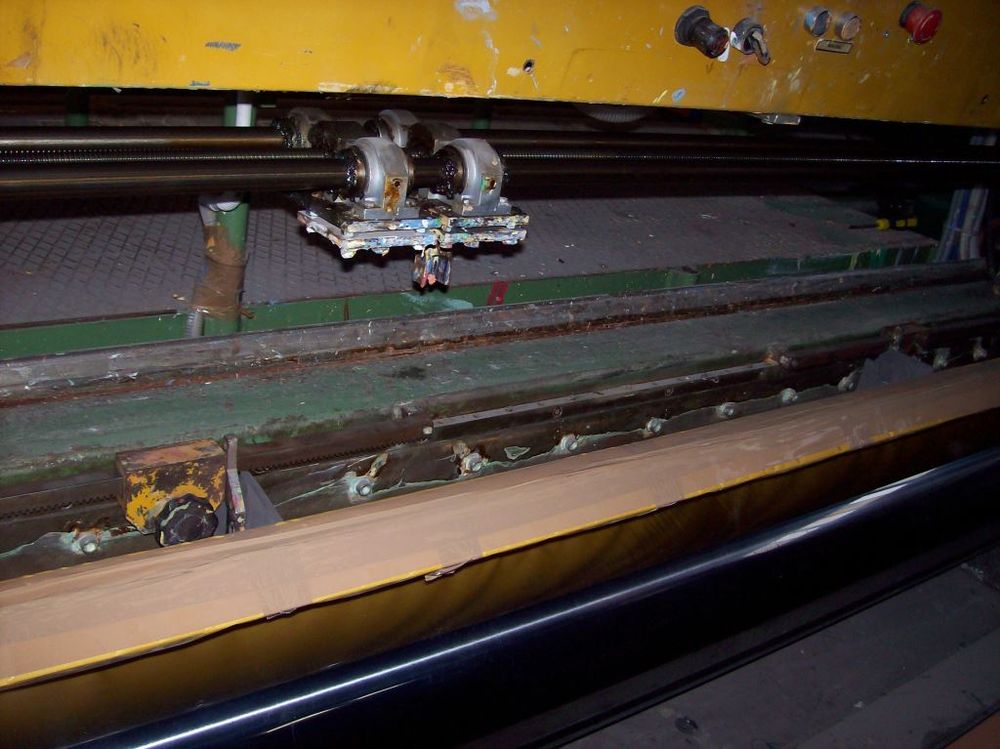

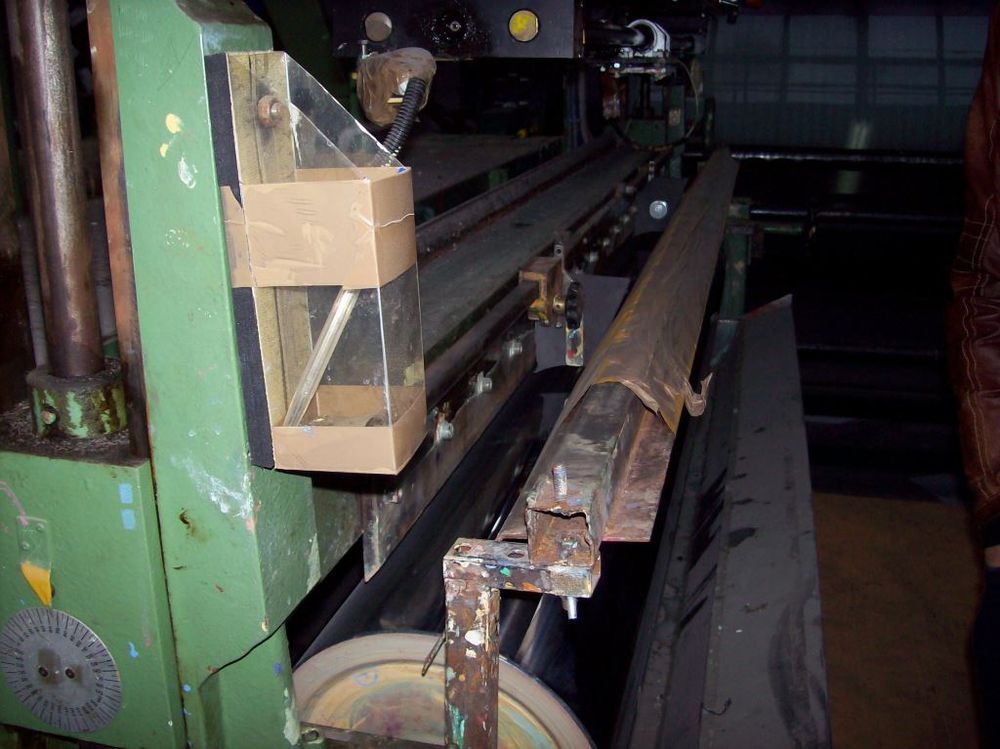

- knife coating machine with automatic feeding system for paste and foam;

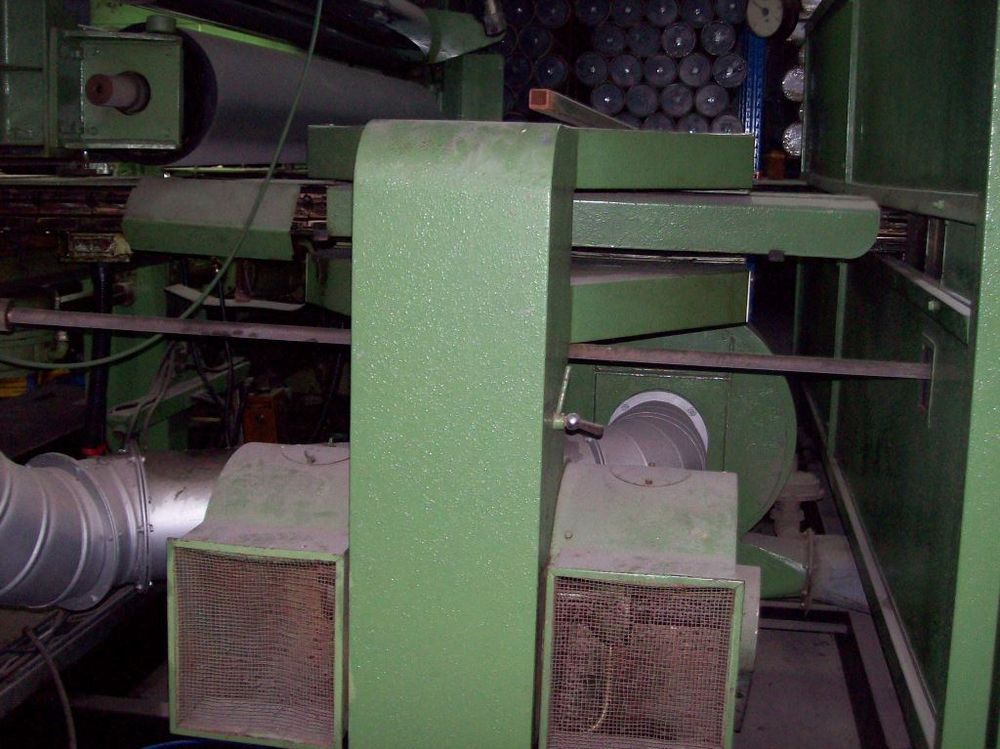

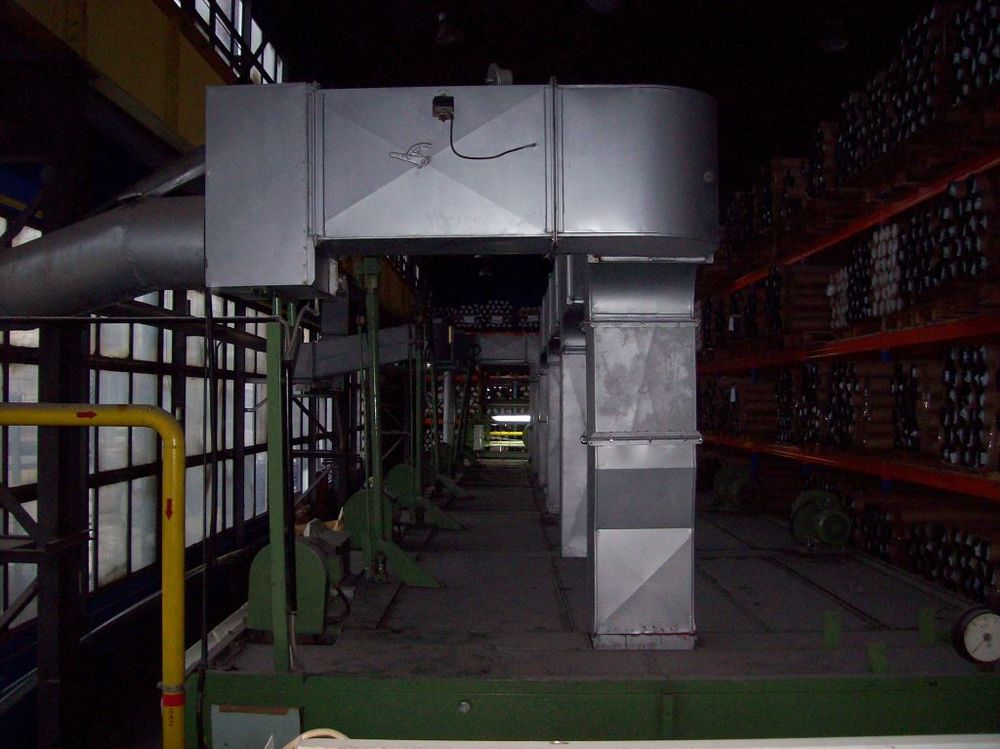

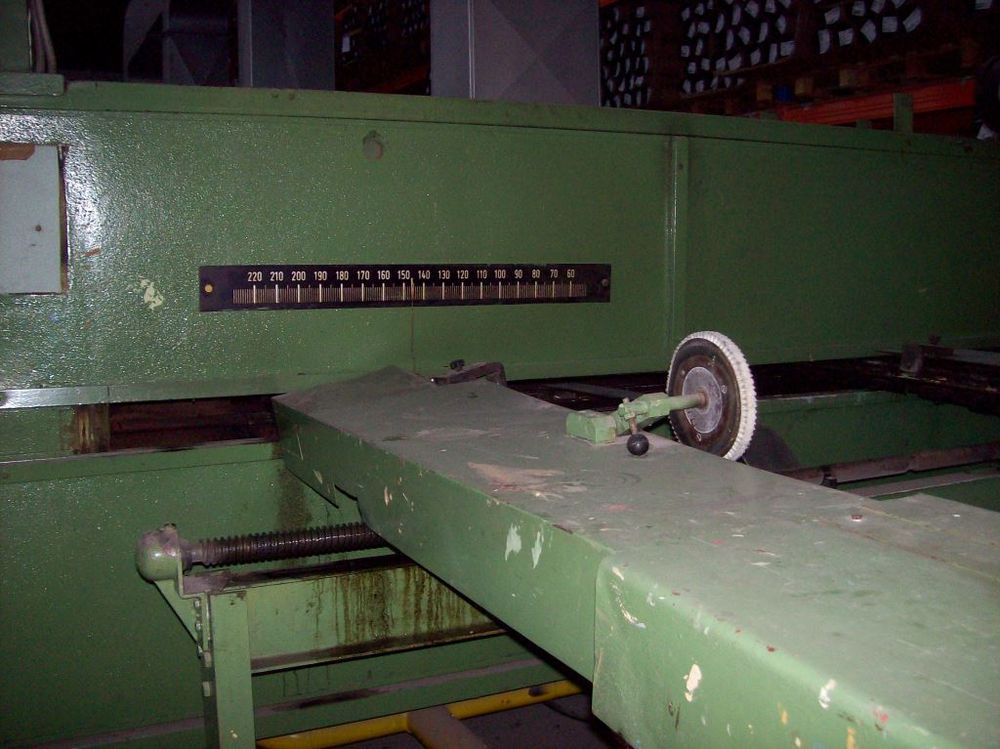

- stenter, 5 comparments (total drying length 16,7) with double ventilation,

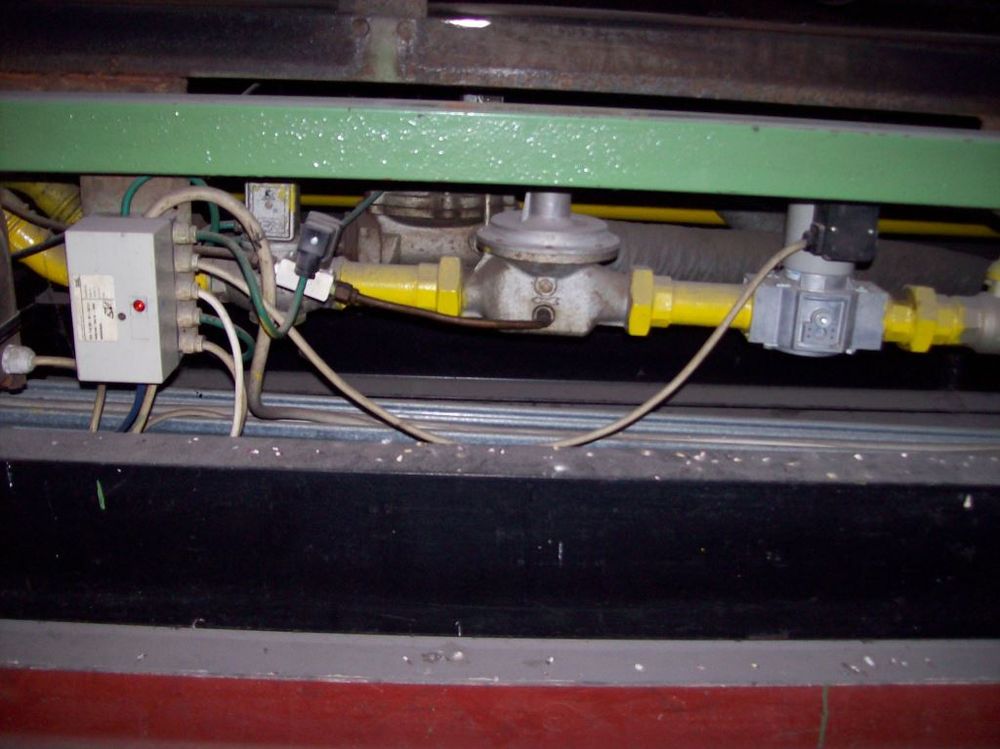

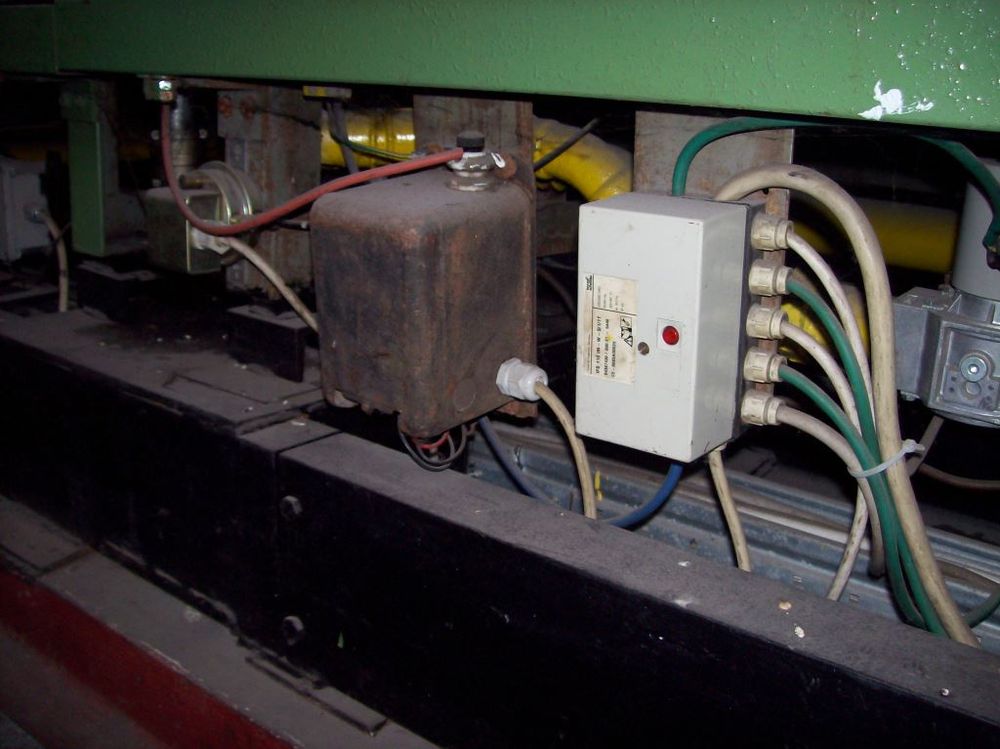

gas burner from left and right sites with full automatic and accessories,

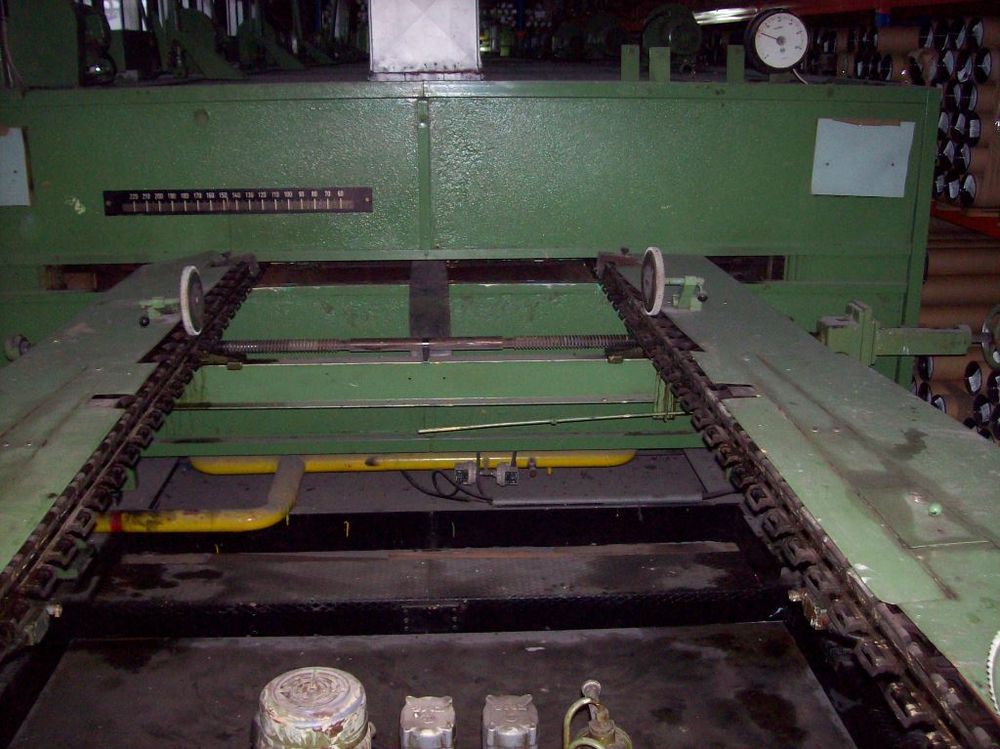

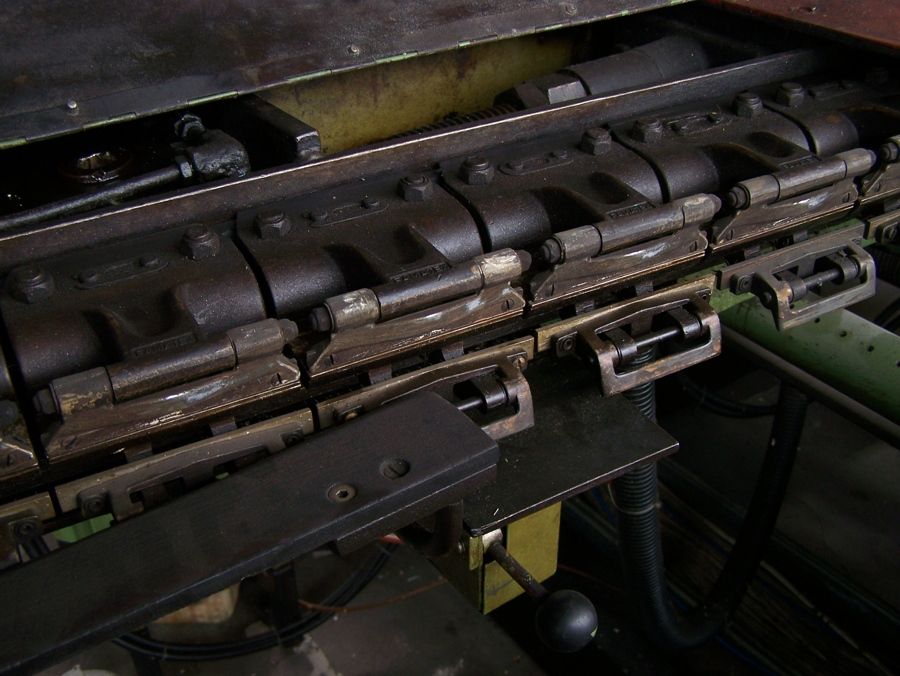

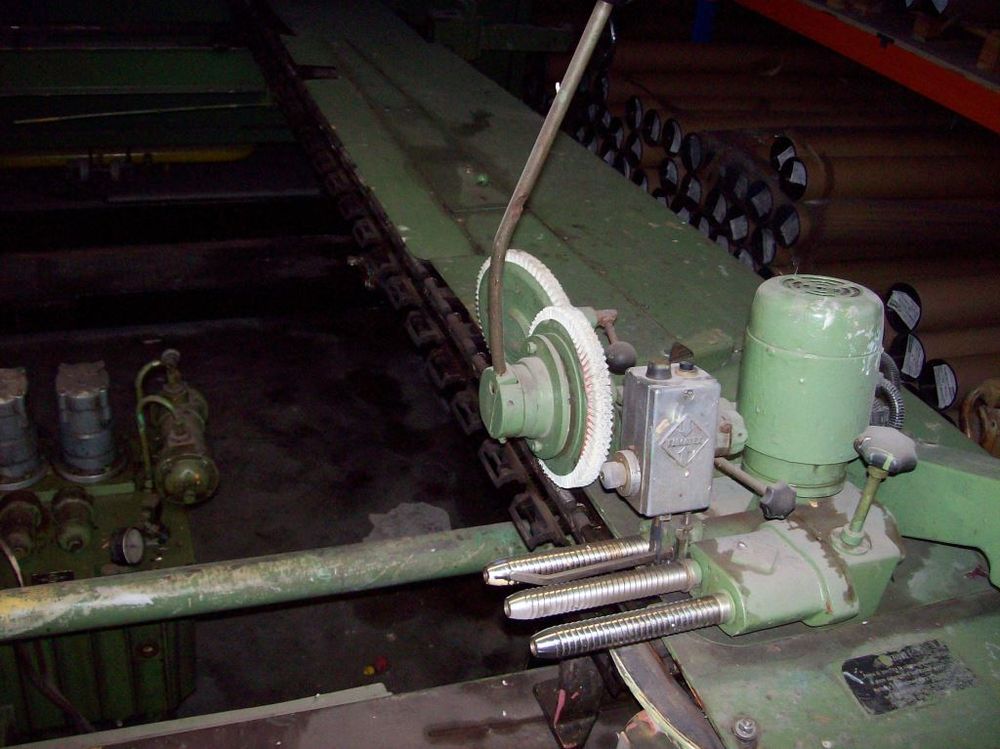

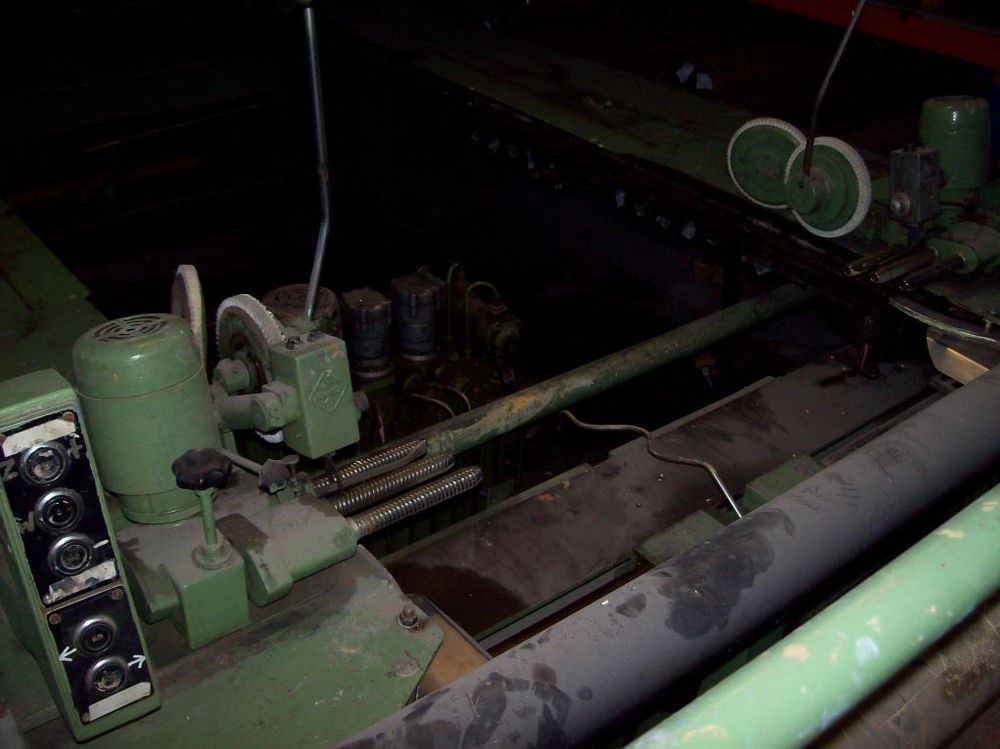

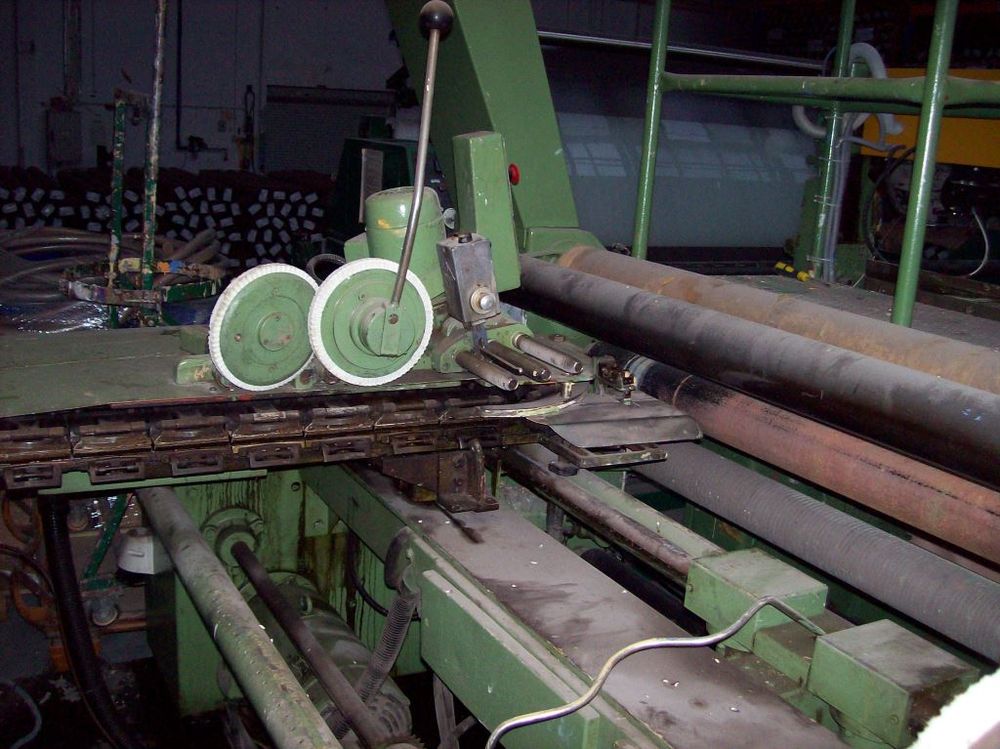

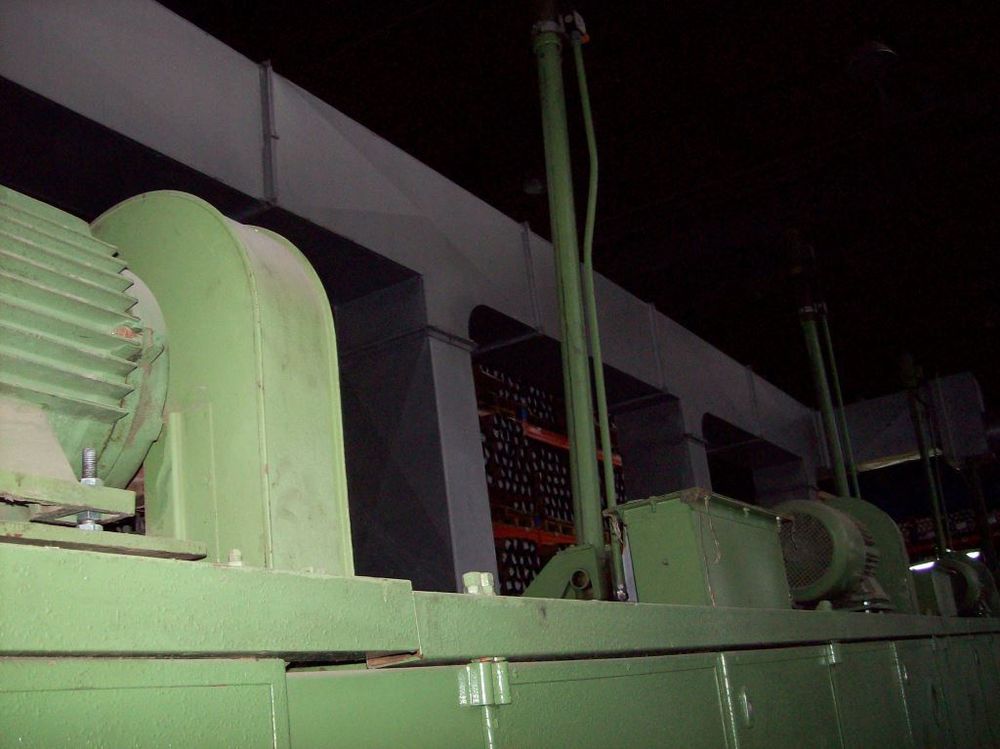

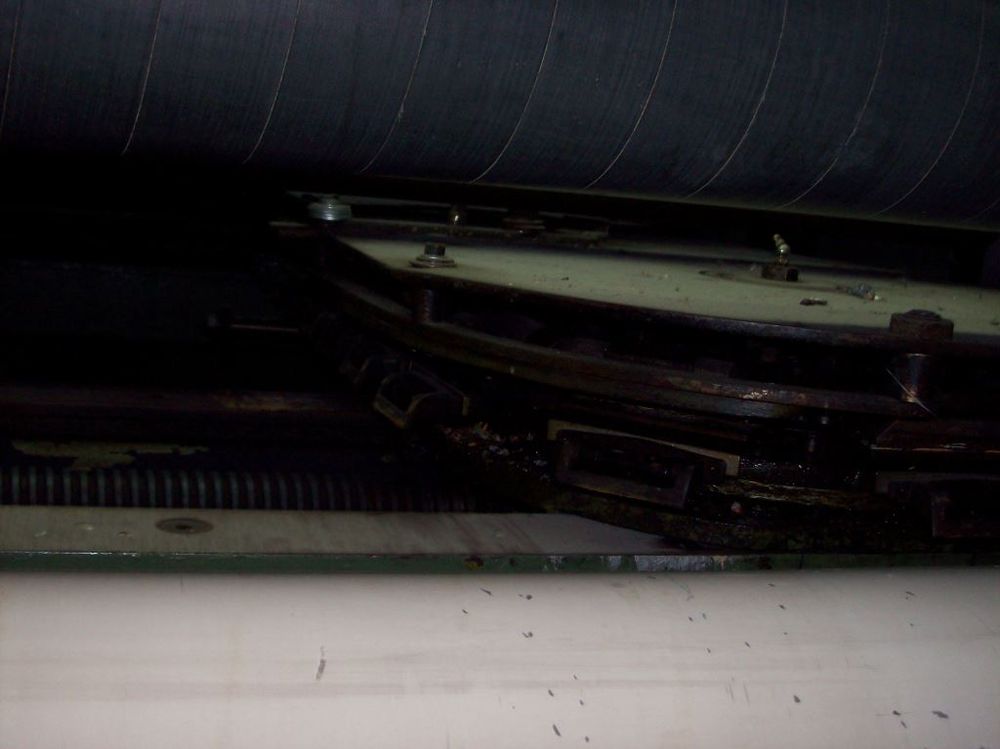

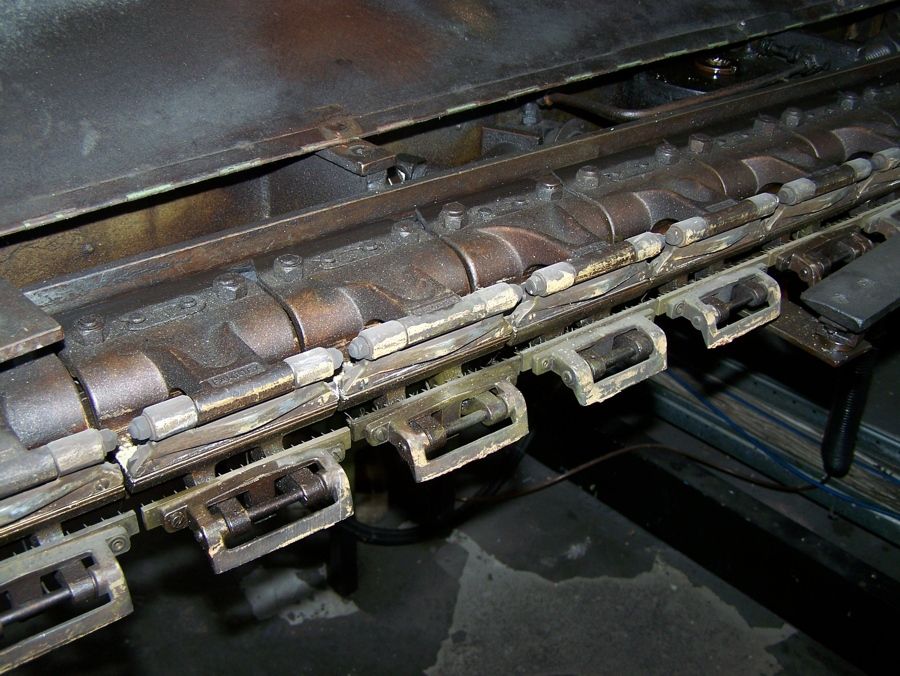

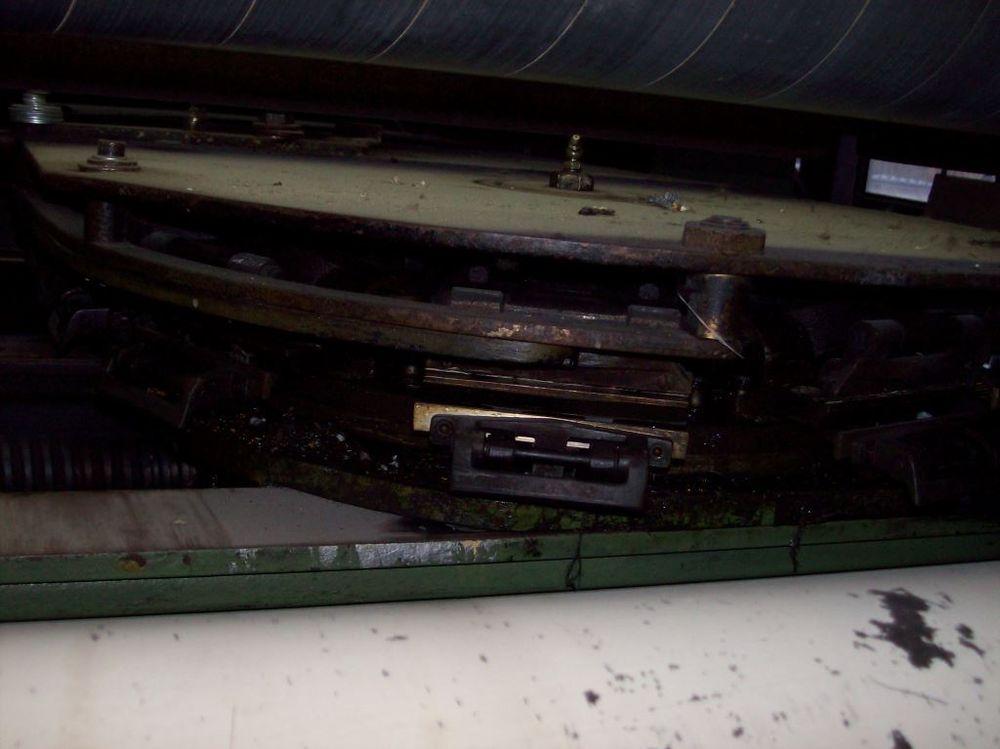

exhaust fan and system, horizontal pin and clip chain (for your choice);

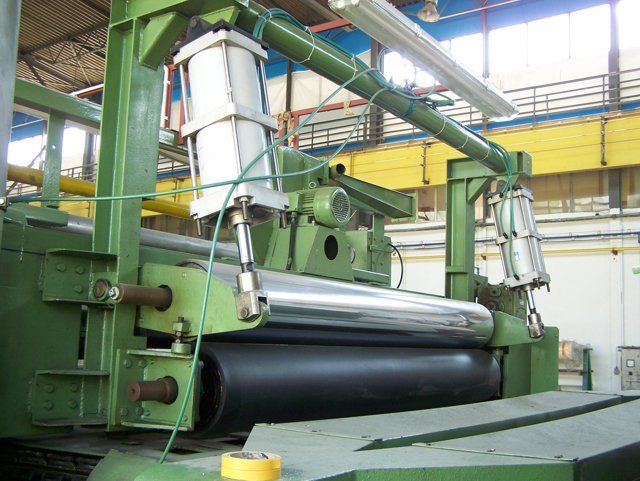

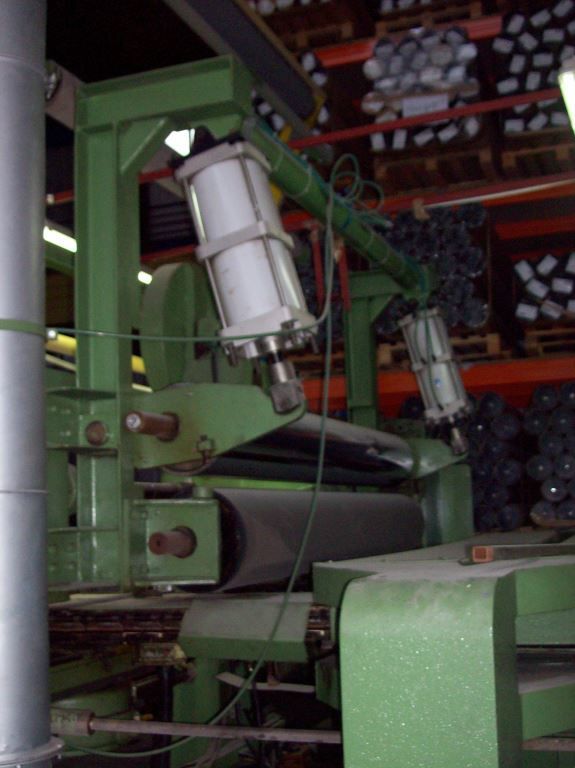

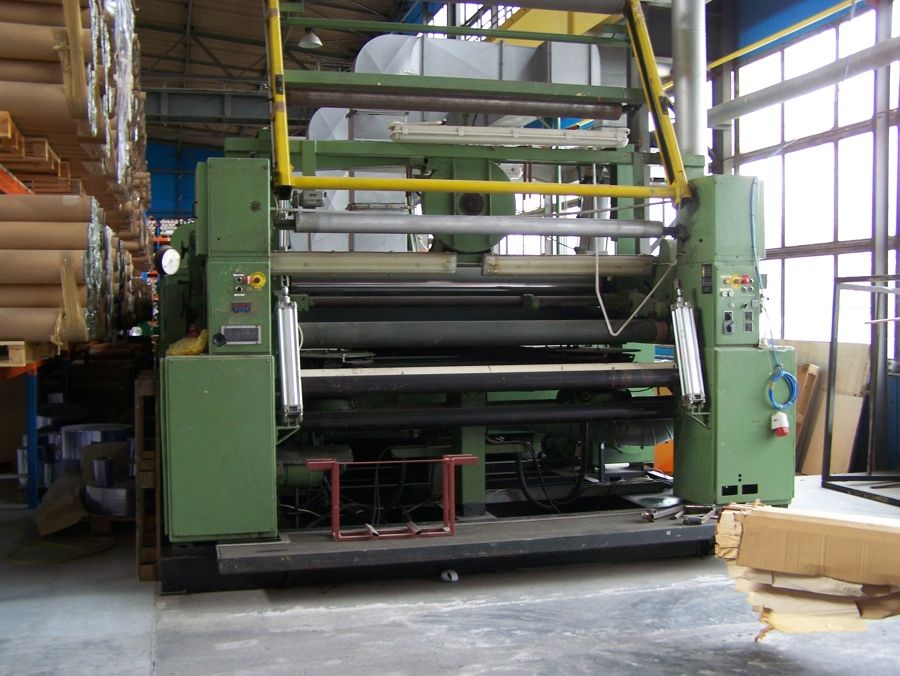

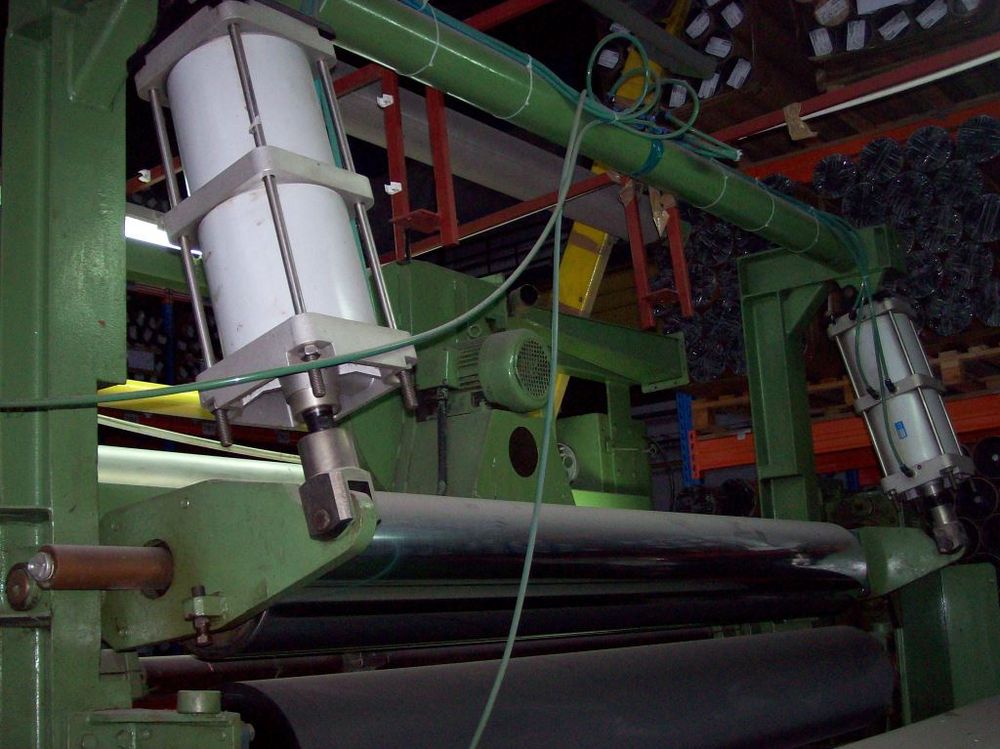

- in exit cooling ecessar with pressure 15 tons;
- winding machine

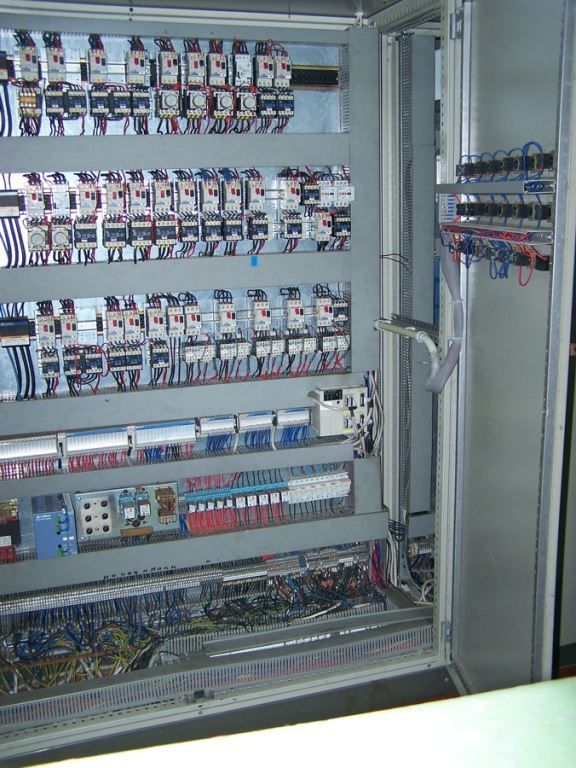

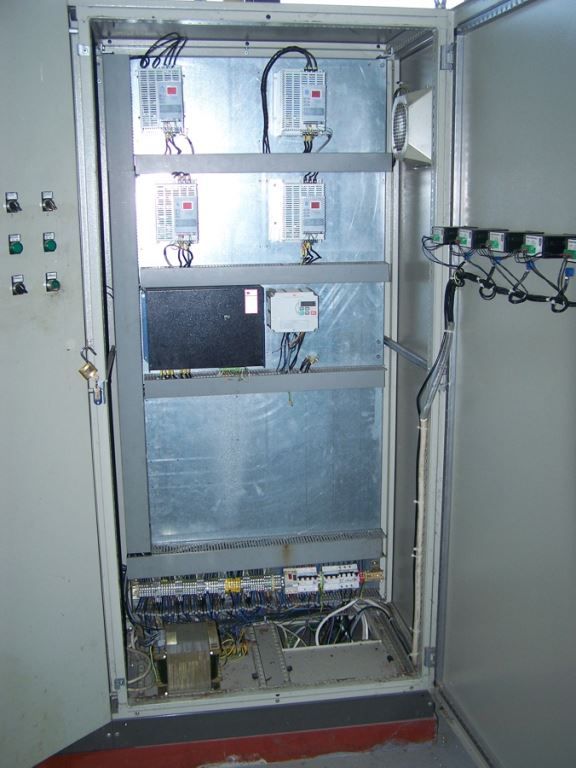

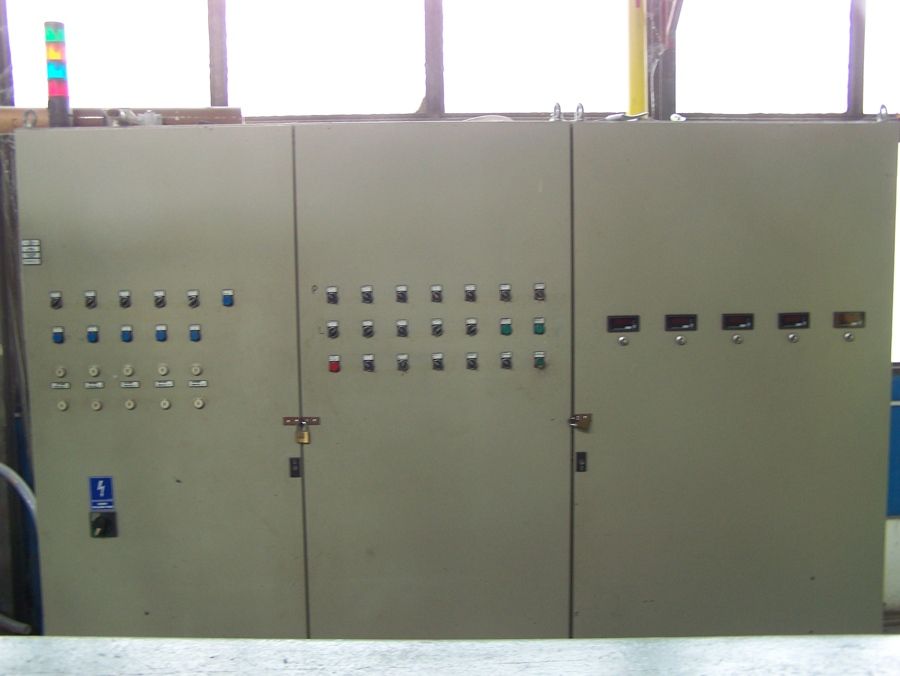

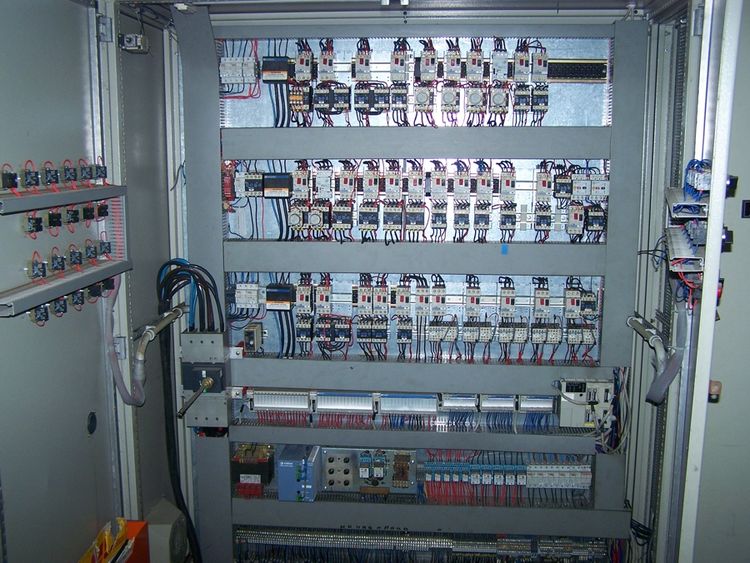

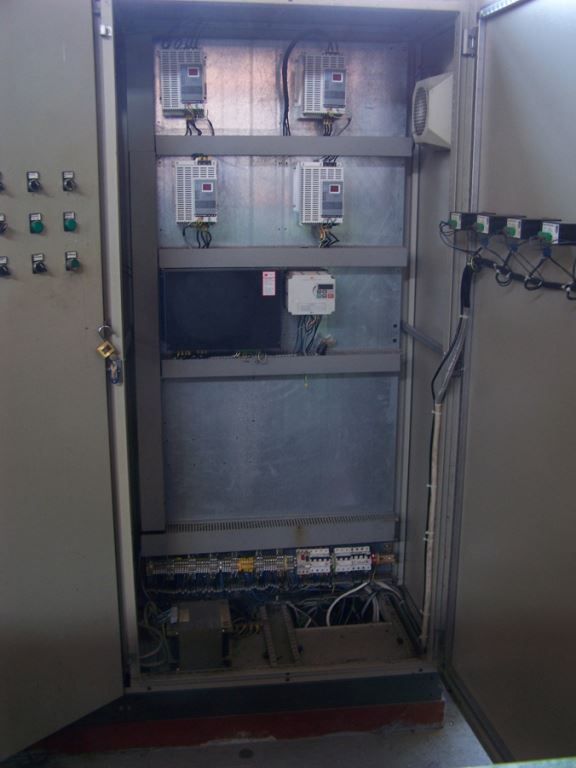

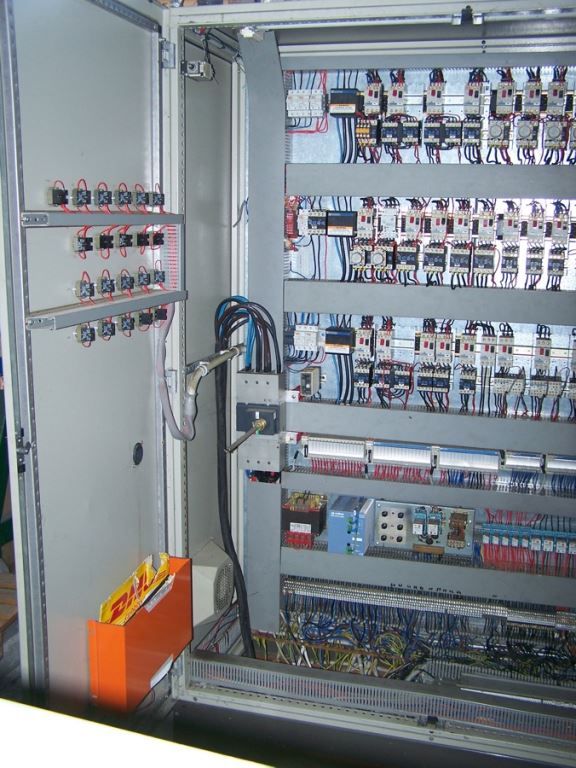

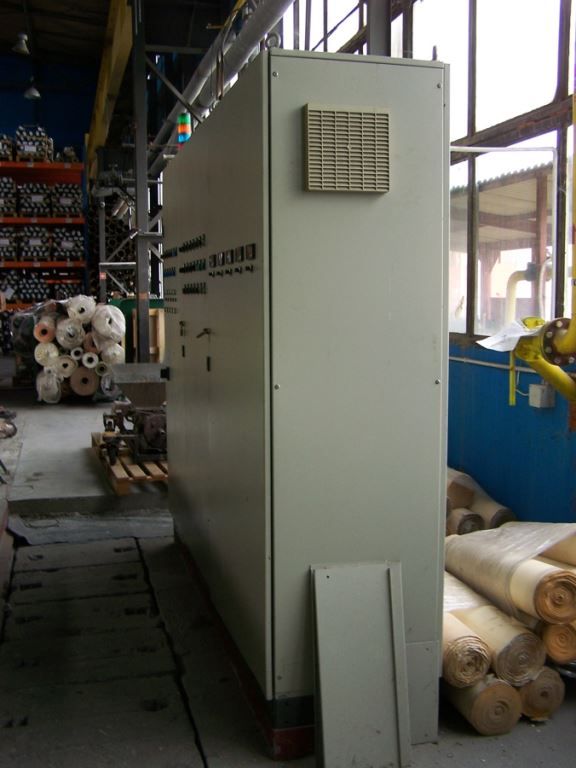

- control cabinet with inverter and electronic devices
Line for coating of fabrics PES, PES/CO etc. with PU, PCV, Acrylic….

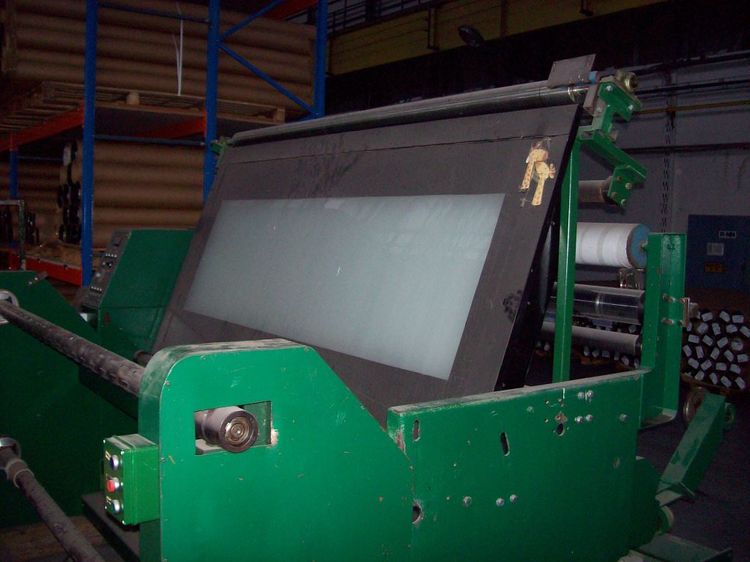

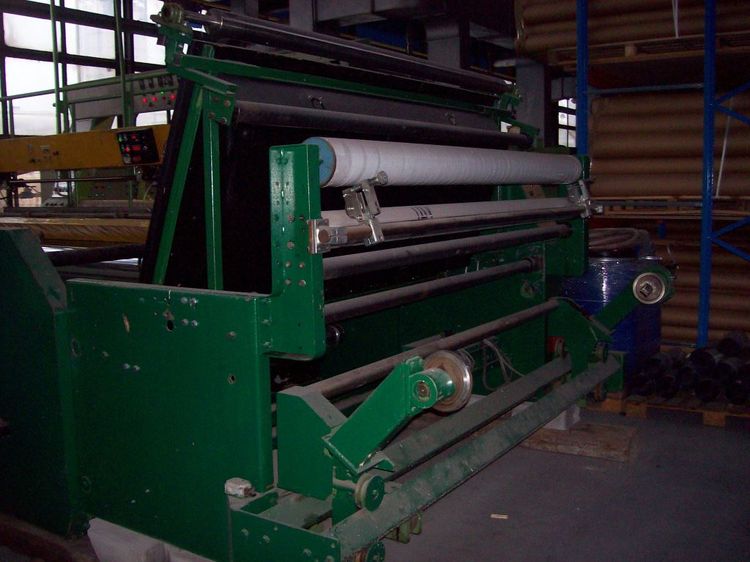

Winding machine for clot batch
Working width 2300 mm, y.o.c. 2004
Dimensions of machine L 30 m x B 7 m x H 6 m
