Others Binzel

Ref : 24095
Condition : Used
Manufacturer : Others
Model : Binzel
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 06 Oct. 2020

Brand: Abicor Binzel
Reference #24095

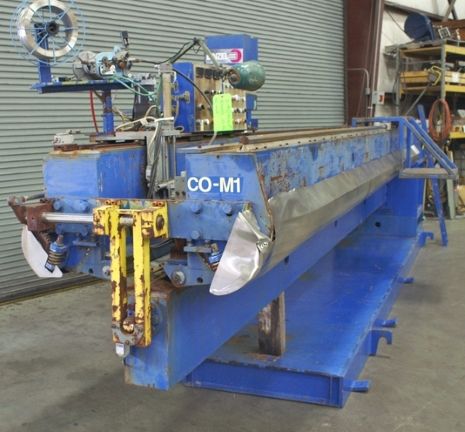

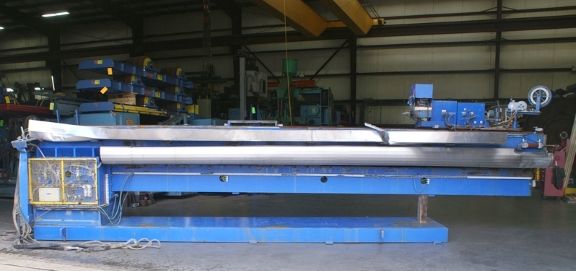

Binzel 20' Flat Sheet, Internal & External Seam Welder

FEATURES:
Machine Will Be Refurbished & Fitted With An Updated Control

CAPACITY:
Maximum Welding & Clamping Length ..... 240"
Clamping Range ........................ 1/4" - 1-1/2"
Internal Welding - Minimum Shell ...... 96" Diameter
External Welding ...................... 24" - 32" Diameter

EQUIPPED WITH:

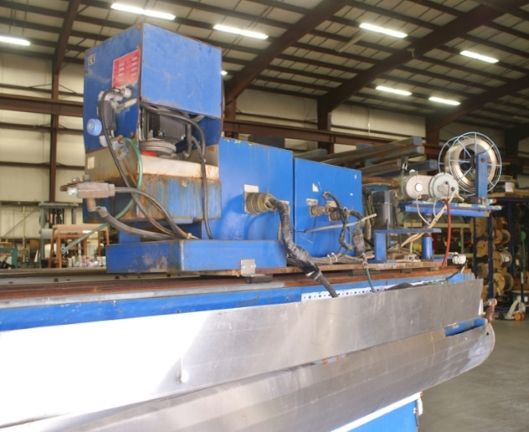

Binzel Variable Speed Dual Rack & Pinion Travel Carriage
8" Pneumatic Vertical Slide To Raise Torch
1-1/2" Manual Vertical & Horizontal Slides For Torch Fine Adjustment
3/4" Manual Vertical & Horizontal For Wire Guide Fine Adjustment
Individual 4" Wide Aluminum Fingers W/Replaceable Copper Tips
Automatic Pnuematic Mandrel Lock
Dual Manual Worm Gera Finger Adjusters
Gas Purged Back Up Bar
Replaceable 4' Back Up Bar Sections
Automatic Pneumatic Plate Alignment Bar

NOTE:
Machine Will Refurbished & Fitted With An Updated Control At Time Of Order
Welding Supply Units Will Not Be Included
