Others Complete Ring Spinning 10'560 Spindles

Ref : 1226348-1
Condition : Used
Manufacturer : Others
Short Description : Complete Ring Spinning 10'560 Spindles
Year(s) : 1993
Quantity : 1
Location : Seller or machines location:
EUROPE (Western and Northern)
Last check : 15 Jan. 2015

Complete ring spinning mill, for combed cotton, 10'560 spindles

Complete preparation line composed of: Crosrol Ltd. - 1993
1 Programmable bale opening machine to operate with bales of
different heights (4 blocks of height). 27.5m of track giving
23.9m of bale laydown on either side

1 Crosblend 4-chamber blender. 1500mm working width, for
blending and opening material, 4.0m height

1 Crosclean 3-Roller cleaner. 1'500mm width
1 Heavy particle separator, with double magnet trap
1 Crosblend 4-Chamber blender. 1'500mm working width, for blending and opening material, 4.0m height
1 Crosclean pinned opener and cleaner, with fully pinned opening roller, 1'500mm width
1 Tower reserve with opening and cleaning rollers, with adjustable grid
1 Crosclean fine opener and cleaner, with wire-covered opening roller, 1'500mm width
1 Dust remover incorporating fibre separator, 1'000mm width
1 Two-way distributor
2 Material transport fan (for chute feed)

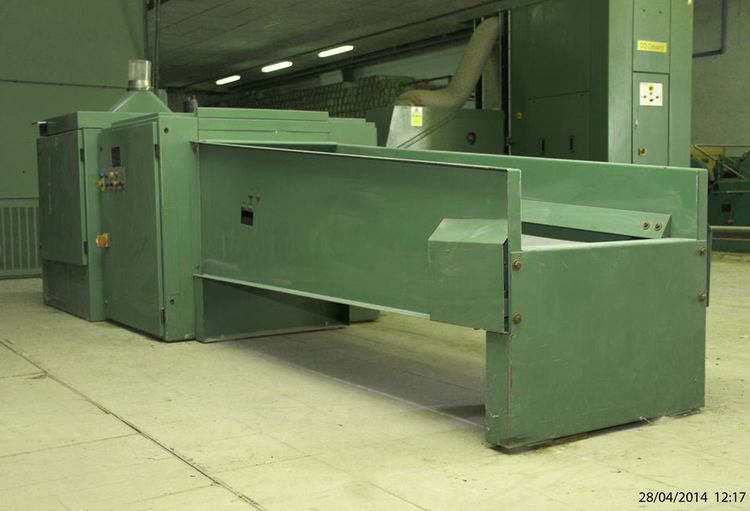

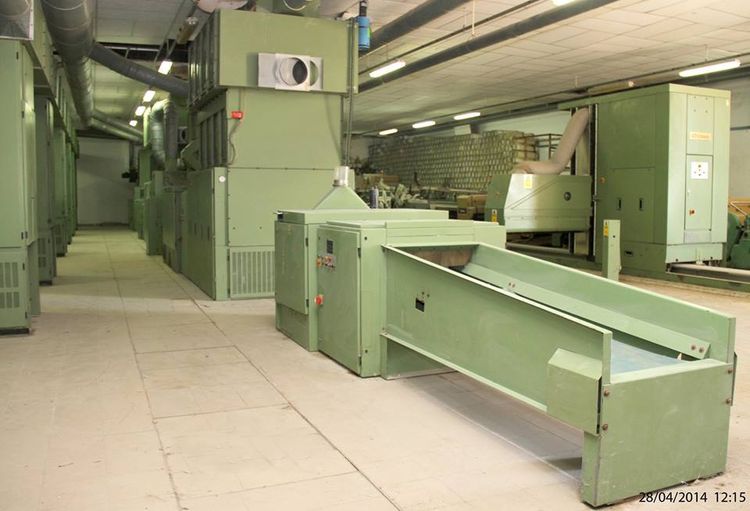

1 Soft waste feeding/opening machine, with 750mm wide by 3.0m long feed table
1 Central, electrical control system
12 Crosfeed chute feed
12 Crosrol Ltd. MK 4 - 1993
Single card, with long-term autoleveller and automatic can changer, with 36'' diameter coiler for 48" can height

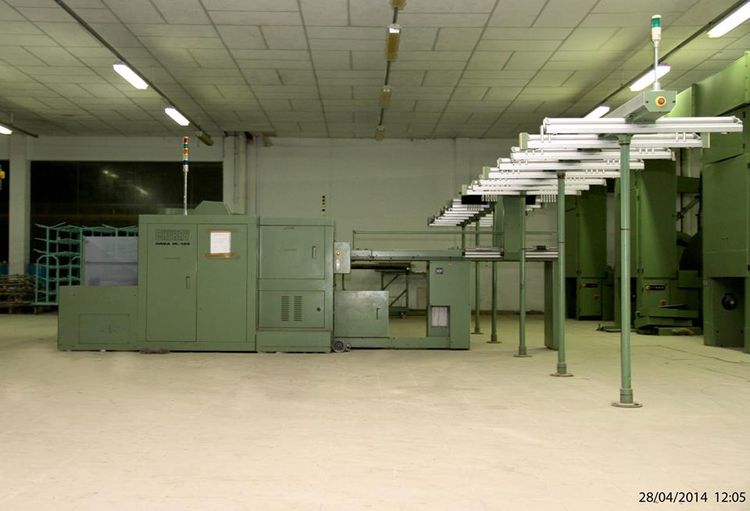

1 Cherry Hara HL 100 1993
High-Lap lapformer, autolevelled (Micro Servo SR6402)

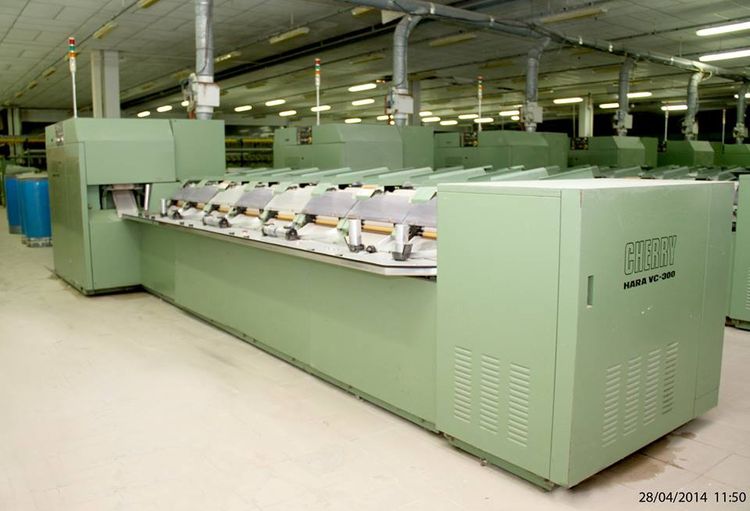

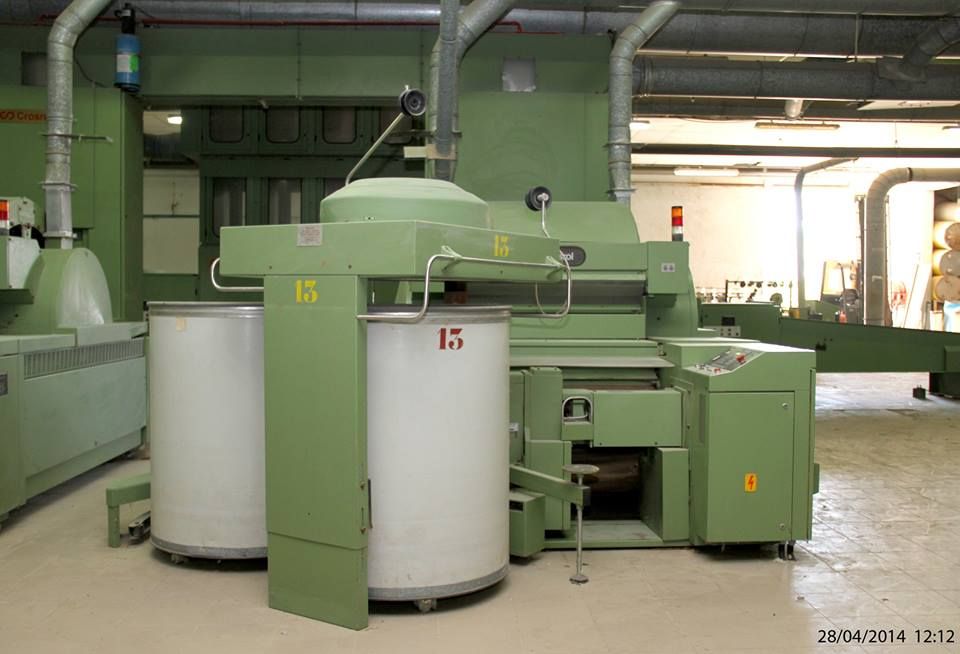

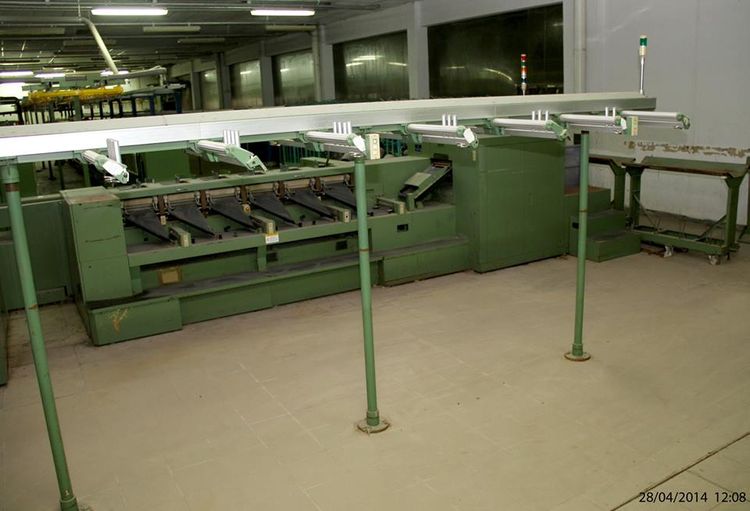

8 Cherry Hara VC 300 1993
Comber, 8 heads, automatic can changer

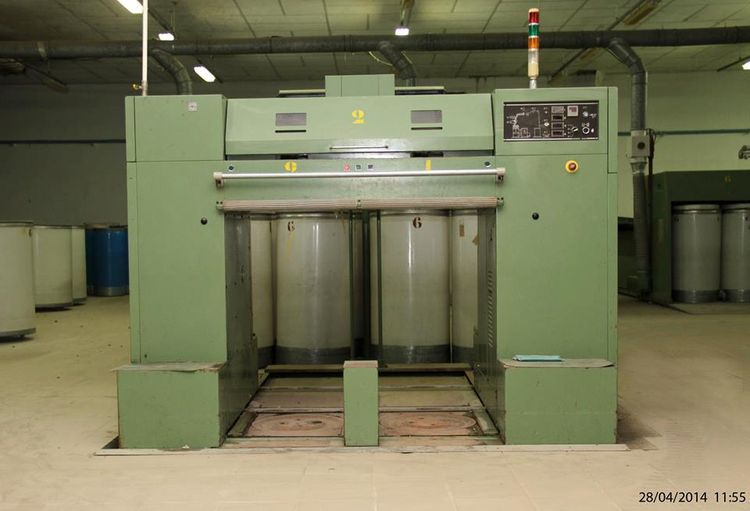

2 Cherry Hara D 600-E2C 1993
Autoleveller drawing frame (Uster ADC – E2), 2 heads, automatic can delivrey, 16 can creel

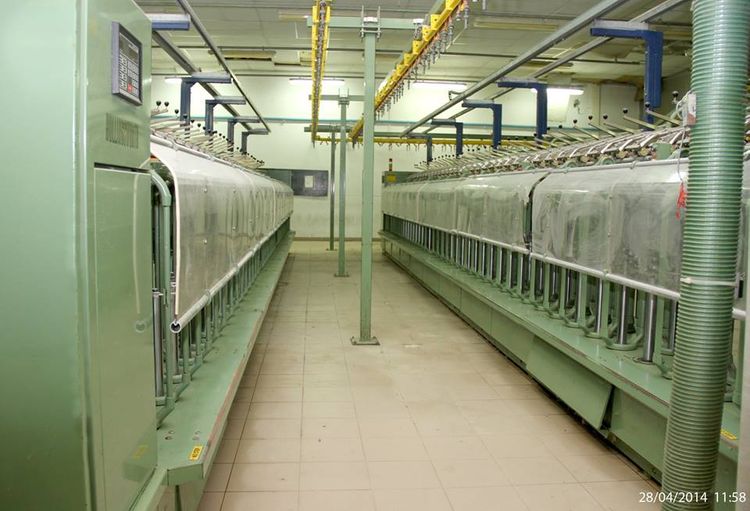

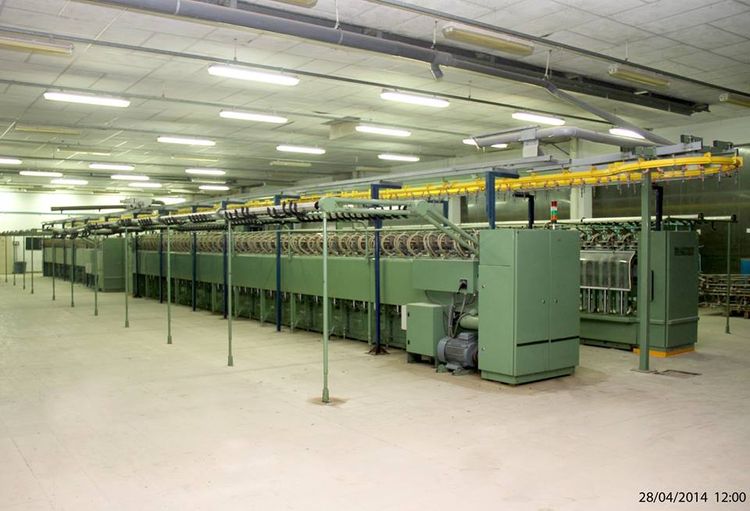

2 Platt Saco Lowel Rovematic FG 1993
Roving frame with 96 spindles. Flyer size 14''x7''. Draft SKF PK 1500
2 Platt Saco Lowel Rovematic FG 1993
Roving frame with 80 spindles. Flyer size 14''x7''. Draft SKF PK 1500

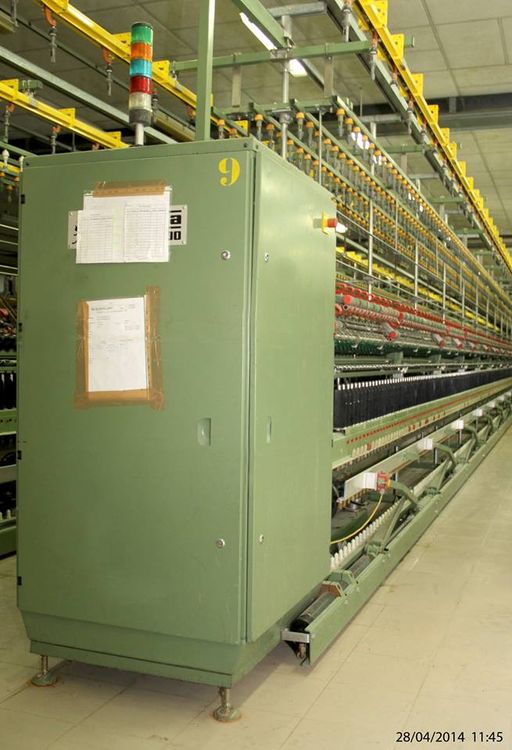

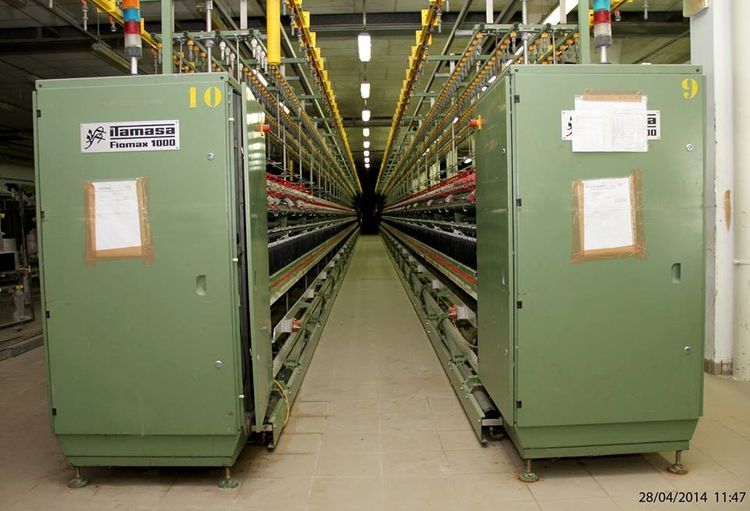

10 Suessen Fiomax 1000 1992
Ring spinning frame with 1056 spindles, gauge 75mm, tube
220mm, ring diameter 42 mm, draft HP-A-320, spindle Novibra
type Nasa HP-S 68, auto-doffing, linked with the cone winder (peg-tray system)

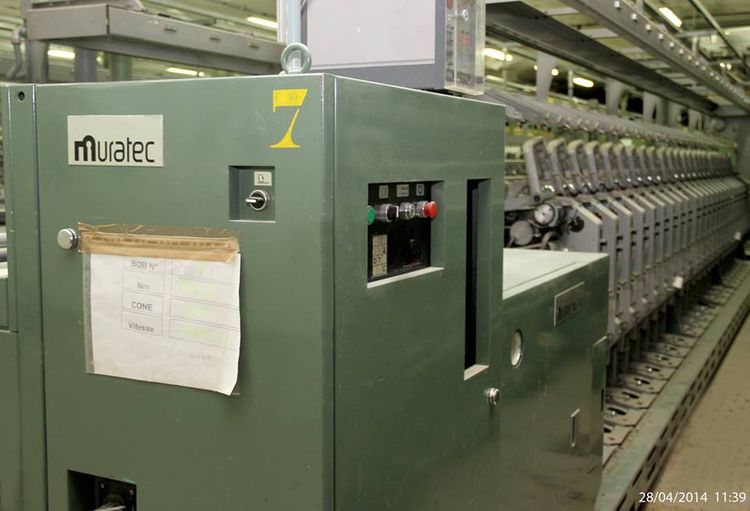

10 Murata 7,11 1993
Automatic cone winder with 24 spindles, 6” - 4°20', waxing,
Uster clearer MK-C15-MB2, splicer, auto-doffing (1 cart),
continous bobbin feeder, yarn length mechanism

1 UTIT 1993
Bobbin transportation system, for roving frame bobbins, between roving frames and ring spinning frames

12 Overhead cleaner LTG-Ameliorair 1993
1 Overhead cleaner Sohler 2004
1 Press & grinding machine Day International

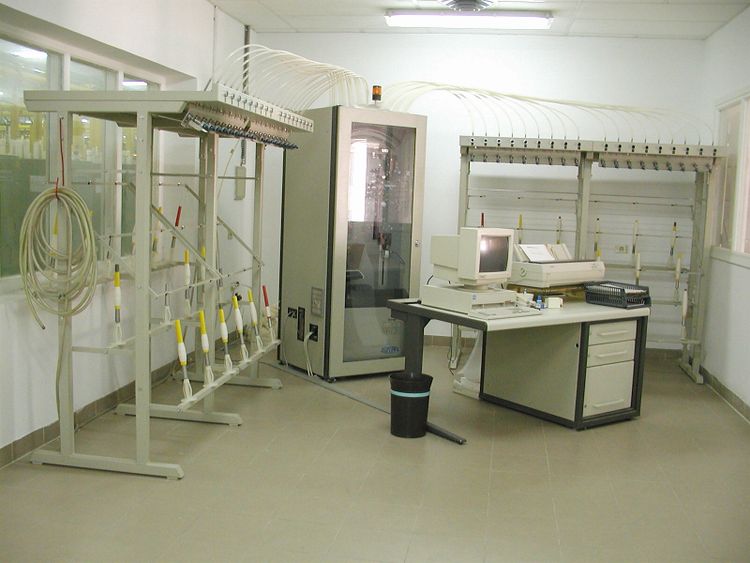

1 Yarntester RTF 6F Superba RTF 6F
1 Slirotester Superba

Lot 2: Miscellaneous machinery
1 Bale opener 1988
2 Pre-mixer Rando Prefeeder 1988
2 Mixer Rando Evenfeed M4 1988
2 Card Hollingsworth CM-40-SL 1988

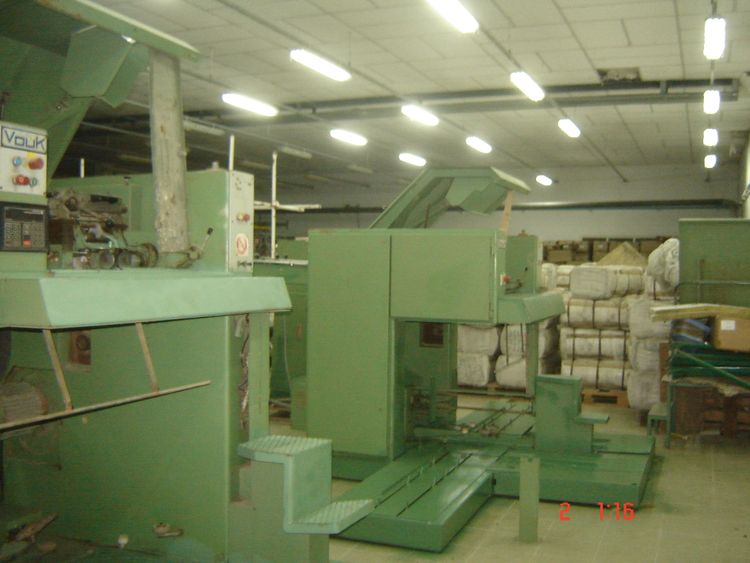

1 Draw frame, first passage Vouk Stiratoio SH1/DC 1989
1 Draw frame, second passage, auto-levelled Vouk Stiratoio SH2/D 1989

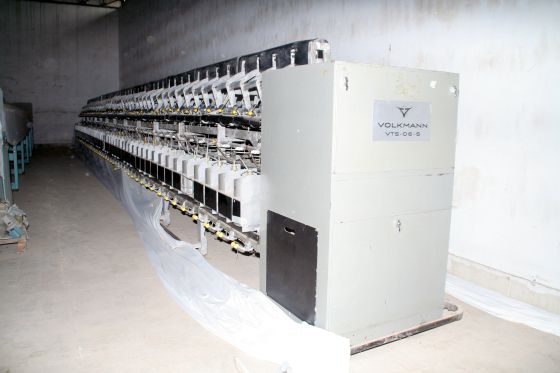

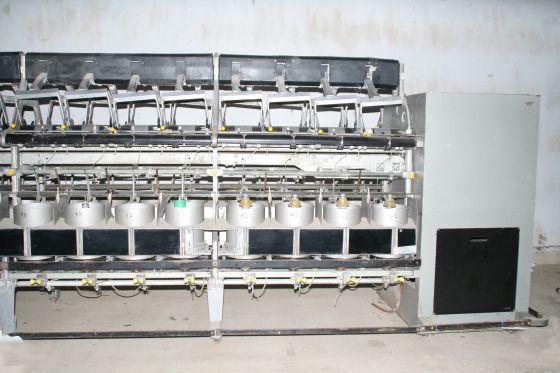

1 TFO twister with 96 spindles Volkmann VTS 06-S 1976
1 Assembly winder with 36 spindles (for TFO) Savio

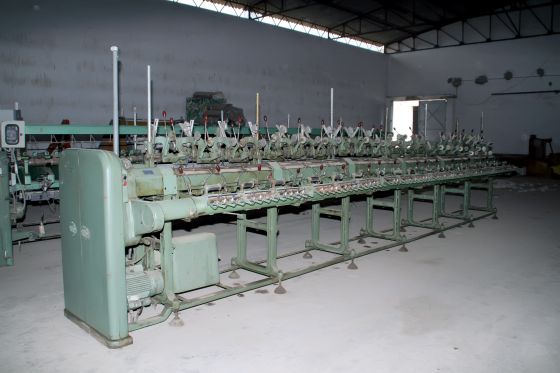

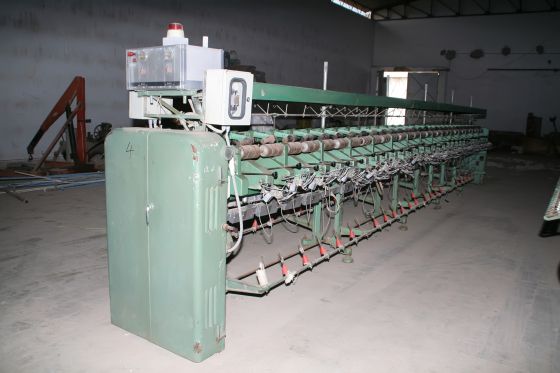

1 Cone winder with 60 spindles Rite 1987
