Others DRYING SYSTEM for VERTICAL MIXERS

This is an accessory to our buffer silos range (GE253) not a stand-alone unit.

Mostly used to dry EPS scraps
Standard configuration (customizable):

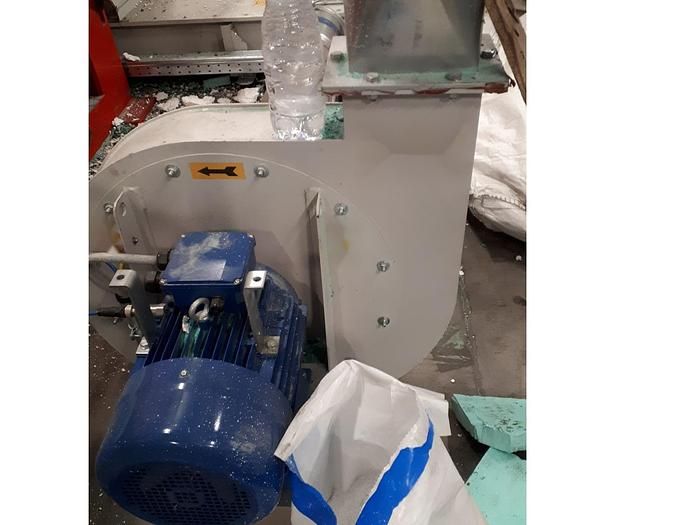

1,1 kw fan in a painted steel cage

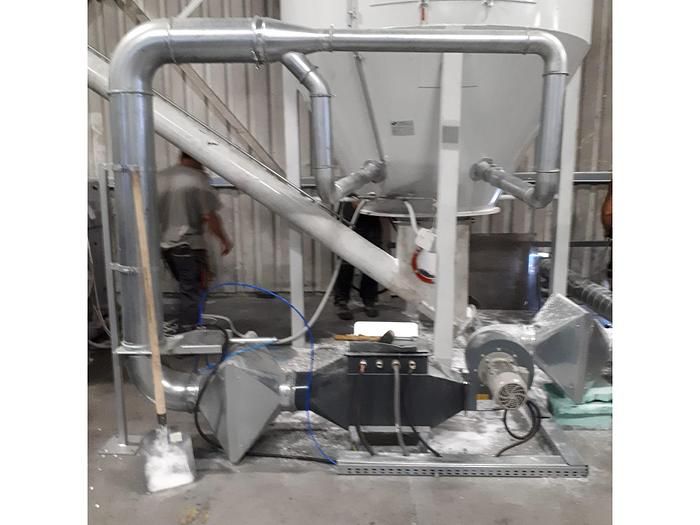

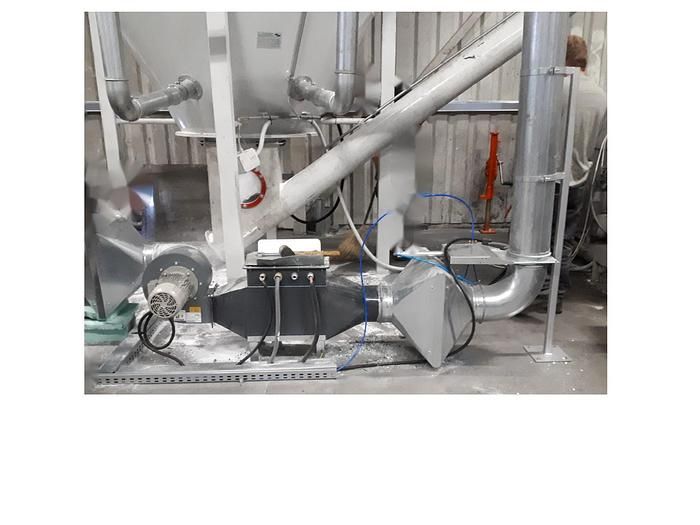

15,3 kw heating unit size 400x300x300 mm.
Metallic cell filters 500×500 mm.complete with galvanized steel frame and in/out connections

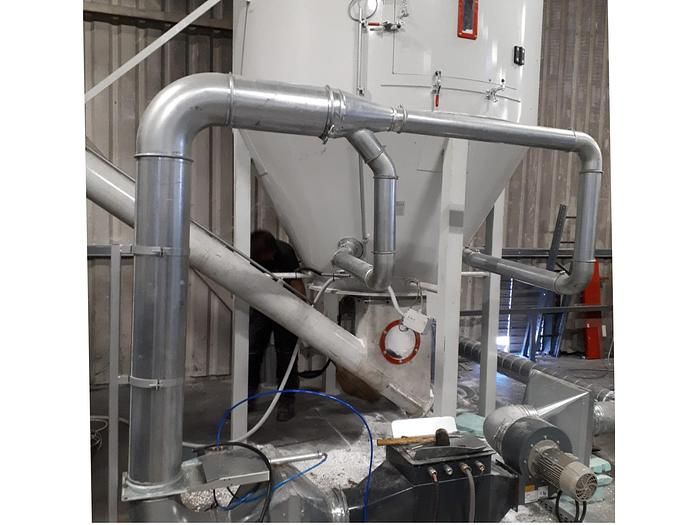

System of pipings 100 and 200 mm diam., curves, clamps, to convey heated air into the silo.
Electropneumatic guillotine shutters in galvanized steel. temperature probe, connections.
Complete with electric cabinet managing the whole system.
User’s manual, drawings, CE compliance
