Others Krantz Tenter Frame
AMERICA North (USA-Canada-Mexico)
Krantz Tenter Frame
2 Roll Pad 94” Wide
Inlet Roll width 108” at overfeed
Erhardt&Leimer Guider Eyes
Double Roll Pin Plates
8 Zone 90’ Oven with 3 Exhaust Stacks
Flat Folder at Exit
Three Roll Compensator at Exit
Surface Rollup with yardage clock
Krantz Tentering Range, consisting of;
b. Sky-In over Tubetex "TK-Superpad", 94-1/2" wide x 8" dia. Rubber/Rubber rolls, single dip immersion pan, 15-HP Baldor motor with gearbox reduction, and 3-roll Compensator.
c. Portable J-Scray, 78" wide x 45" fr/bl, steel bed, on casters,
d. Sky-In stand with Toyo TGA Guiders on bridge, MISSING right side TGA head
e. Operator platform and controls

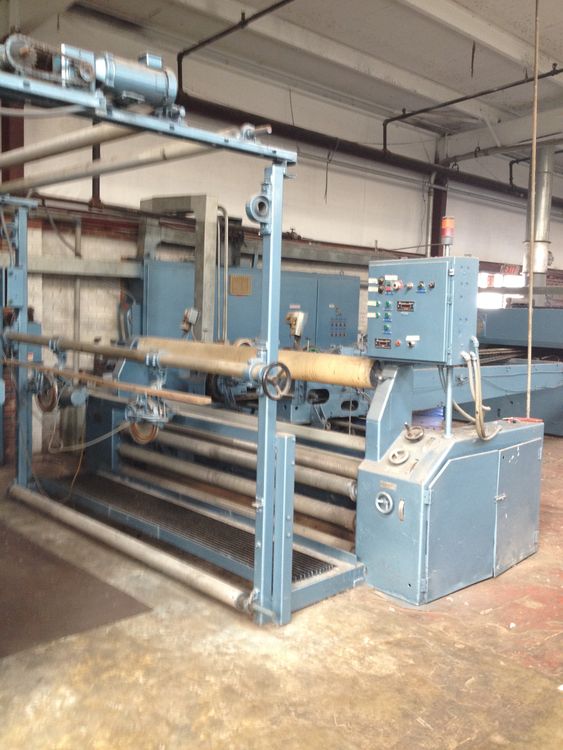

f. Entry with 4-driven scroll rolls, 107" feed roll, set Tandematic Uncurlers, pinning brush assembly, Erhardt-Leimer KR-5130 Rail Guiders, Krantz Vertical Rails and Pin Chain, 100" max. opening.
g. Krantz Low Profile 8-Zone Gas Fired Housing, Maxon burners with Honeywell safety valves, oven-top pneumatic venting panels,
h. Exit section 12-1/2' long with Rotary blade edge trimmers (no removal blowers or winder),
40-HP 230/460 volt main drive motor, 91" Stripper roll assisting to Swing Folder.
i. SS Scray Pan - ss sheets bolted to machine and to floor

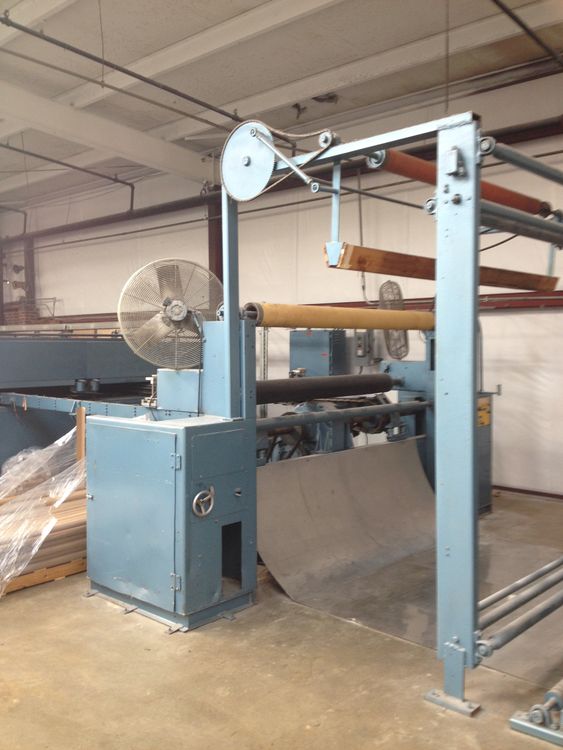

j. 3-Roll Compensator, chain driven
k. 2-roll Surface Take-up, "Intra" SB-5, 1988, 10-HP drive motor, 132" face x 8" dia. Bed rolls, edge sensor and pneumatic edge guiding.
