GrandKing X 3500 G + HJ Weir FoldMaker 64 D LACO GrandKing X 3500 G gas flatwork ironer, 3500 mm, year 2020, with HJ Weir FoldMaker 64 D folder

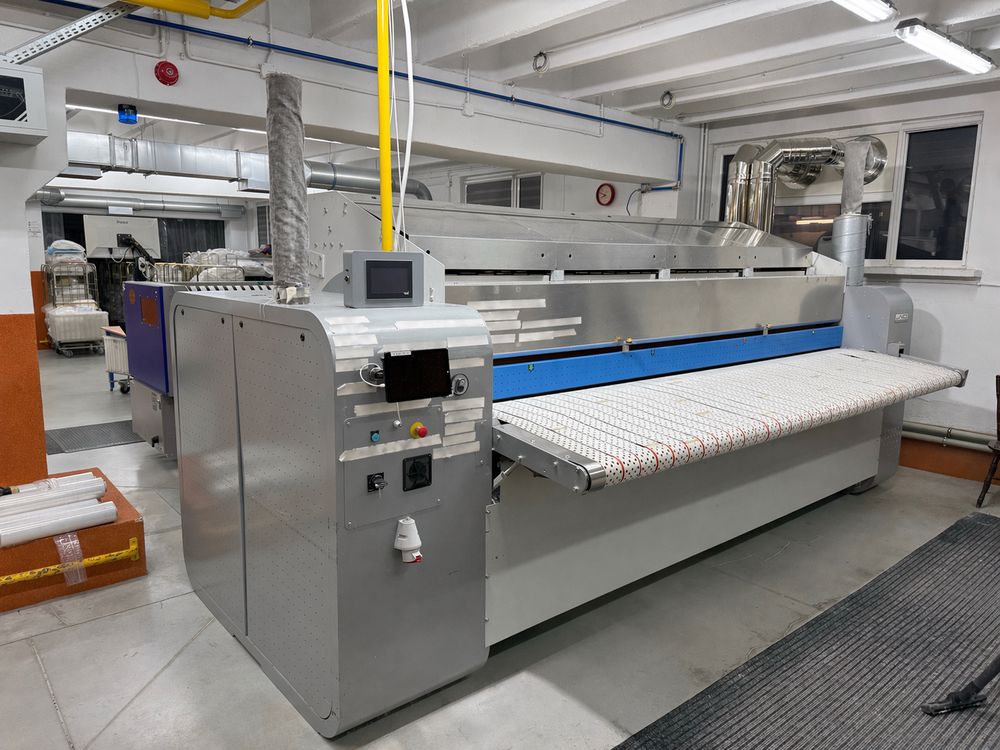

For sale: complete flatwork ironing line consisting of a LACO Machinery GrandKing X 3500 G gas-heated flatwork ironer and an HJ Weir FoldMaker 64 D folding machine.

The line is still in regular operation and has been serviced on an ongoing basis. We are selling it only because our laundry is continuing to grow and we need to replace it with a two-roll ironer.

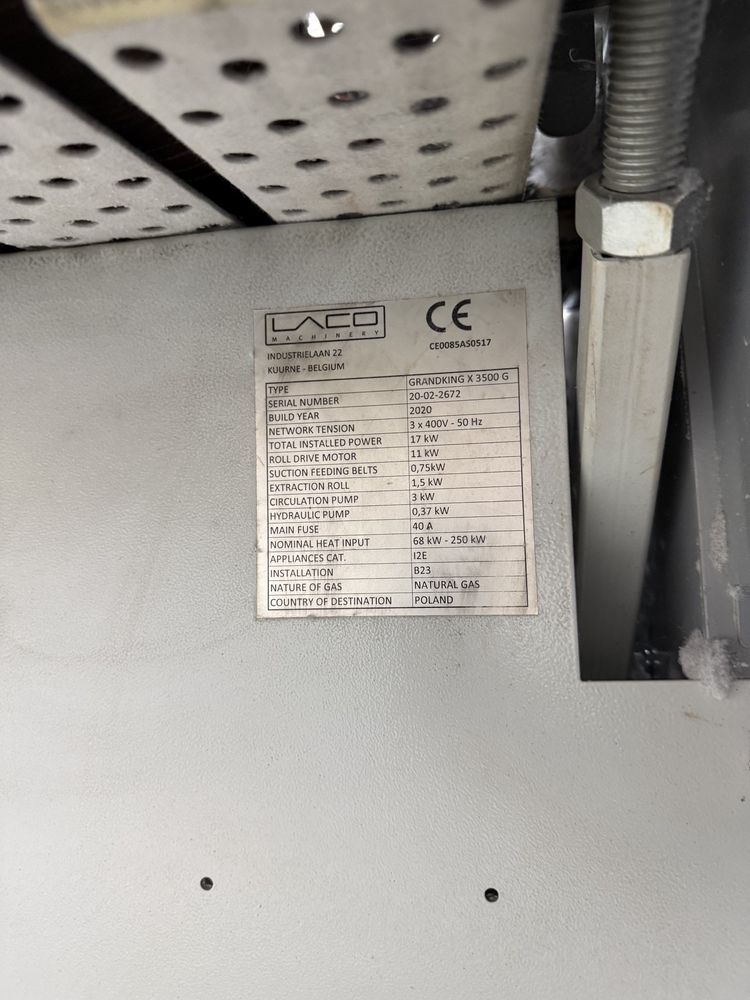

Main ironer data:
- Manufacturer: LACO Machinery, Belgium
- Model: GrandKing X 3500 G
- Year of manufacture: 2020
- Serial number: 20-02-2672
- Heating: natural gas
- Roller length / working width: 3500 mm
- Roll diameter: 1200 mm
- Total installed power: 17 kW
- Roll drive motor: 11 kW
- Main fuse: 40 A
- Nominal heat input: 68-250 kW
- Appliance category: I2E
- Installation: B23

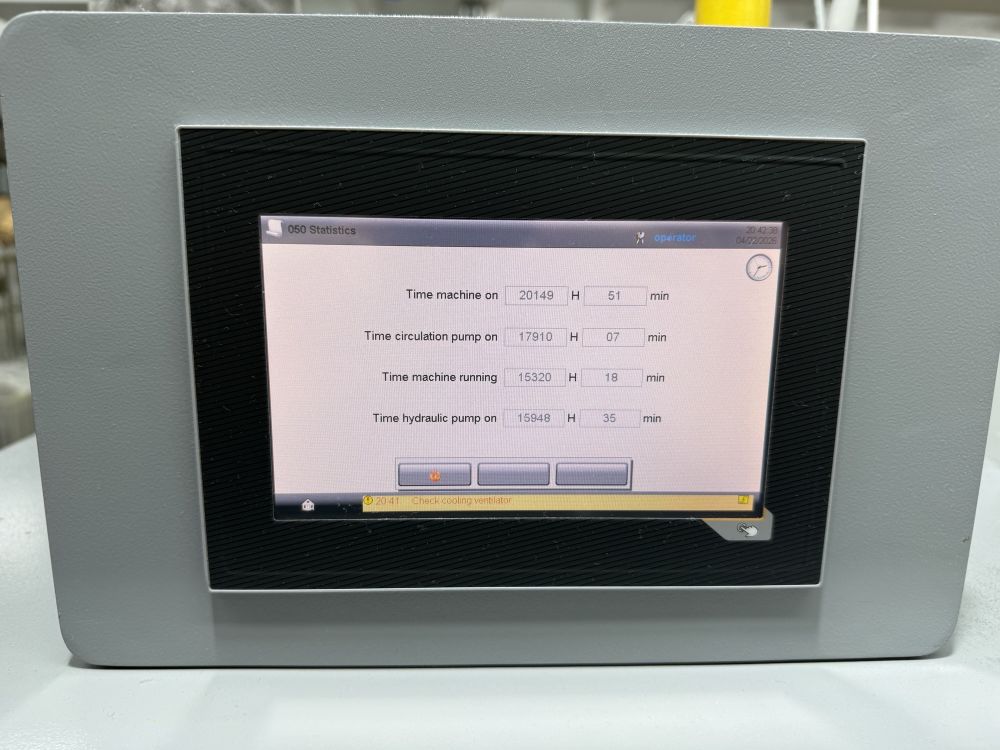

- Ironer running time shown on the display: approx. 15,320 h

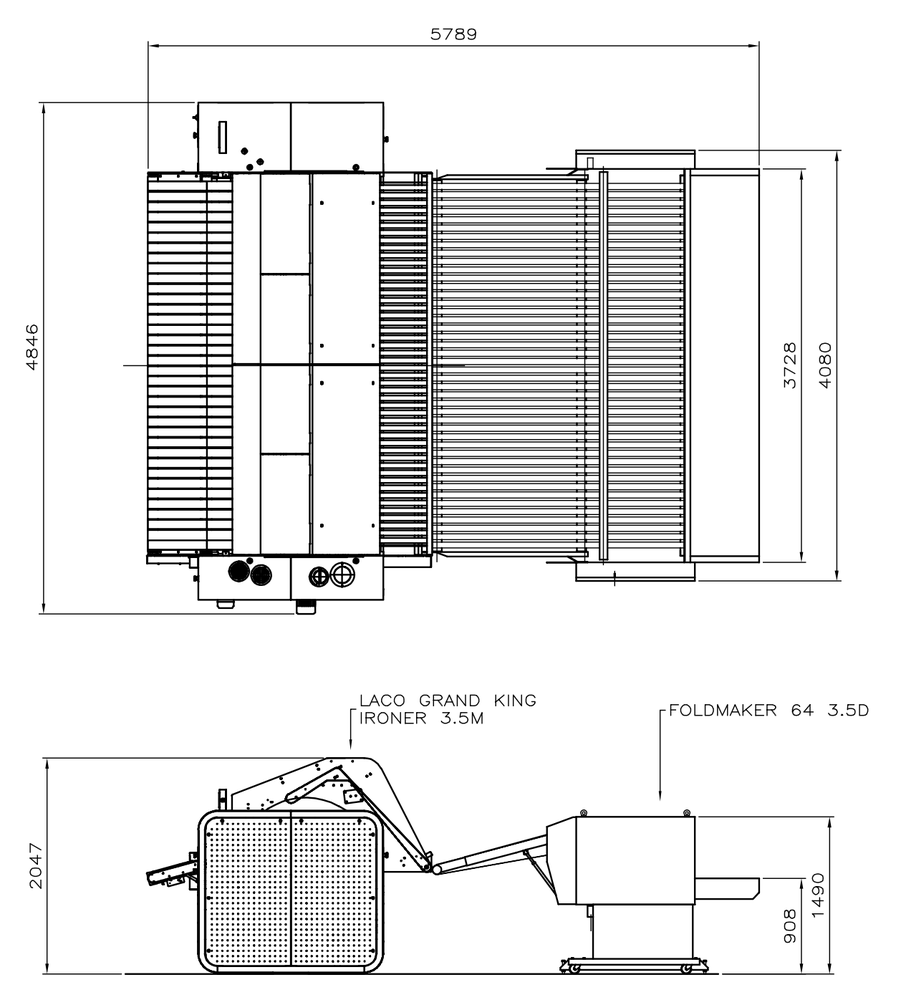

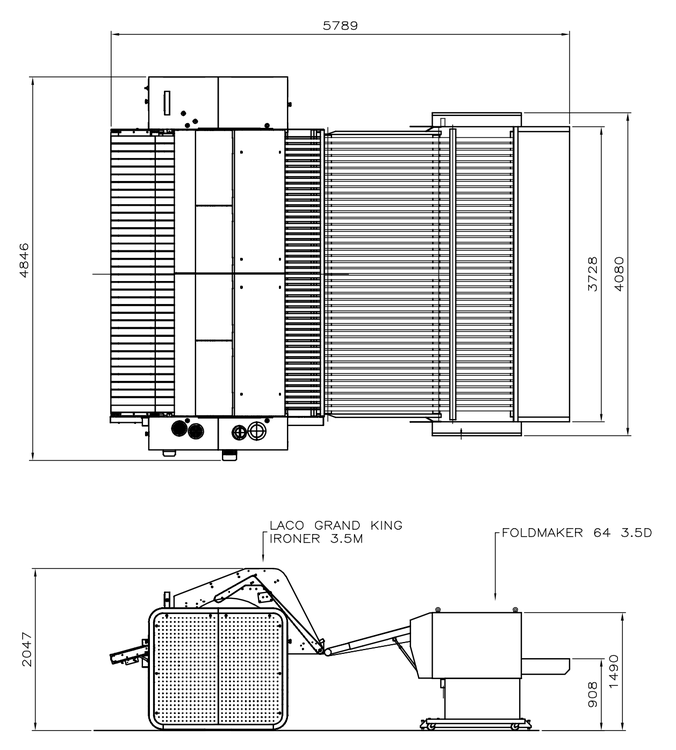

- Overall ironer dimensions according to LACO technical data for the 3500 mm version: approx. 4840 x 2705 x 2045 mm
- Weight according to LACO technical data for the 3500 mm version: approx. 4500 kg
- Production capacity according to LACO technical data for the 3500 mm gas version: up to approx. 645 kg/h at 50% moisture retention / 180°C with Air-stream

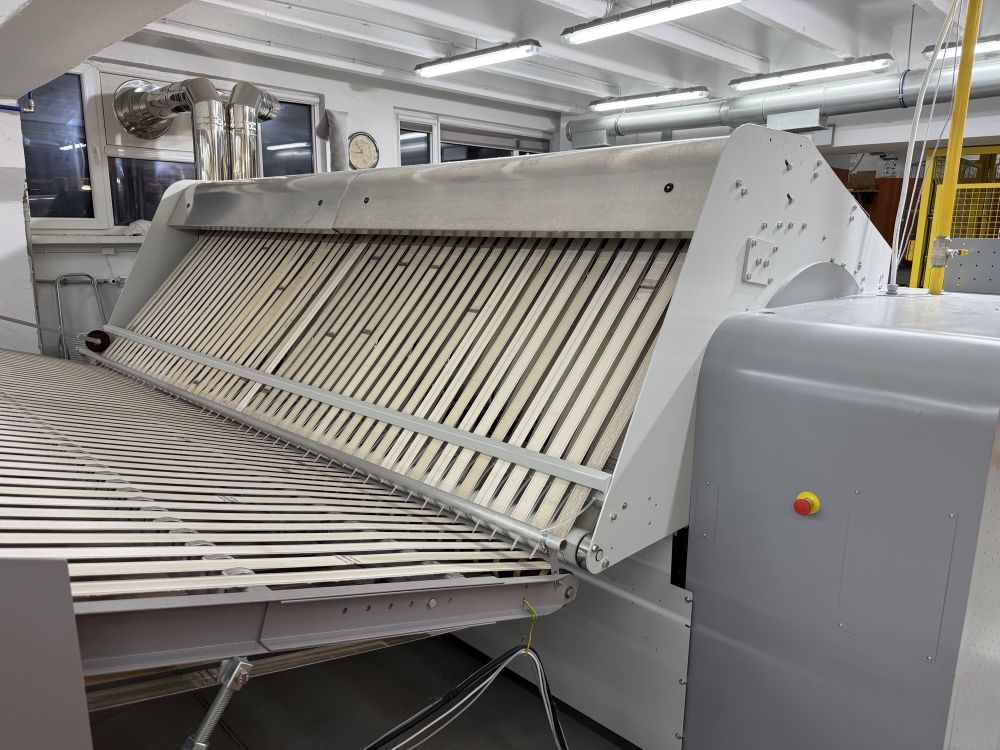

Included folding machine:
- Manufacturer: H.J. Weir Engineering Co. Ltd.
- Model / type: FoldMaker 64 D, type 64-06X35D
- Serial number: 64/120270
- Power supply: 380-415 V, 3 phase, 50 Hz
- Power: 2.5 kW
- Motor: 1.1 kW
- Working pressure: 5.5 bar
- Weight: 1200 kg

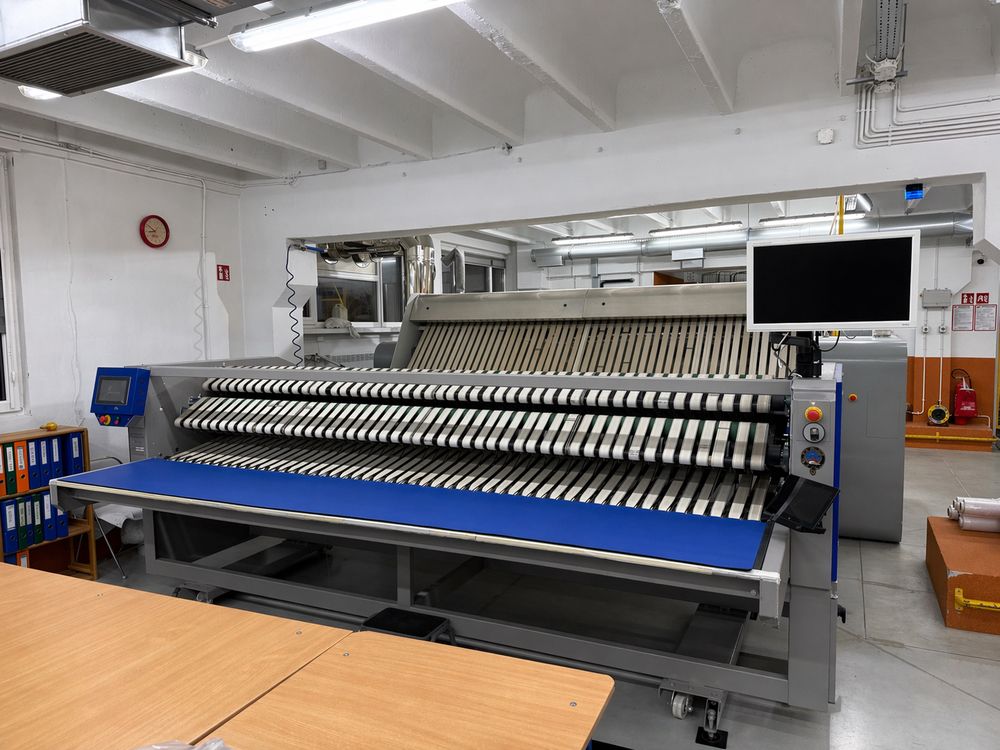

The HJ Weir FoldMaker 64 is a flatwork folder for ironer lines, suitable for table linen, towels and high-production multi-lane small-piece folding. It provides primary folding with one, two and thirding fold options.

The machine can be inspected in operation by arrangement until approx. 10 July 2026. After that date, an identical twin ironer can still be viewed on site, as we have two of these machines.
