Others Self adhesive hot melt coating label and tape production 1650 mm

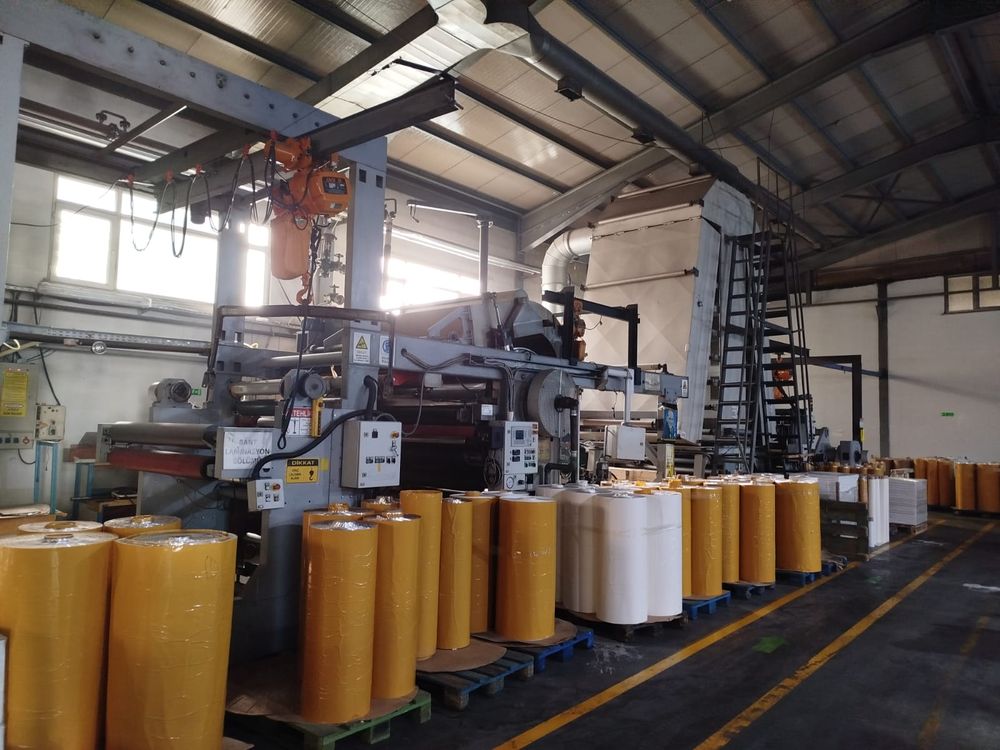

UPA/THM - Hotmelt Coating/Lamination Machine

HOT-MELT Self Adhesive Label and Double Sided BOPP Tape Production

PROCESS

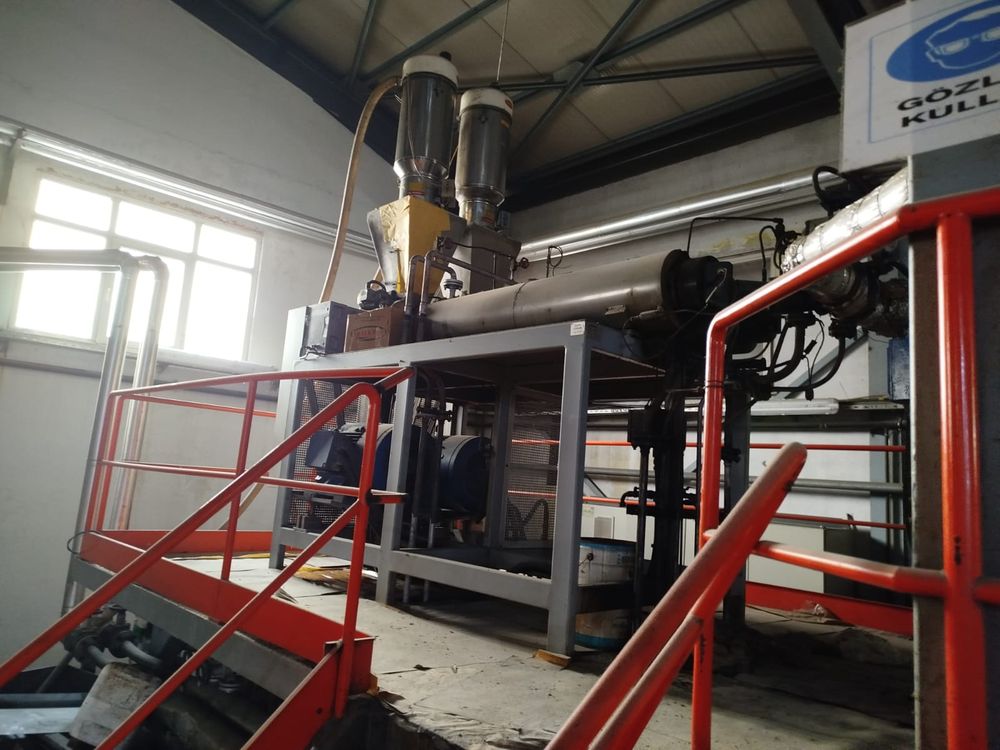

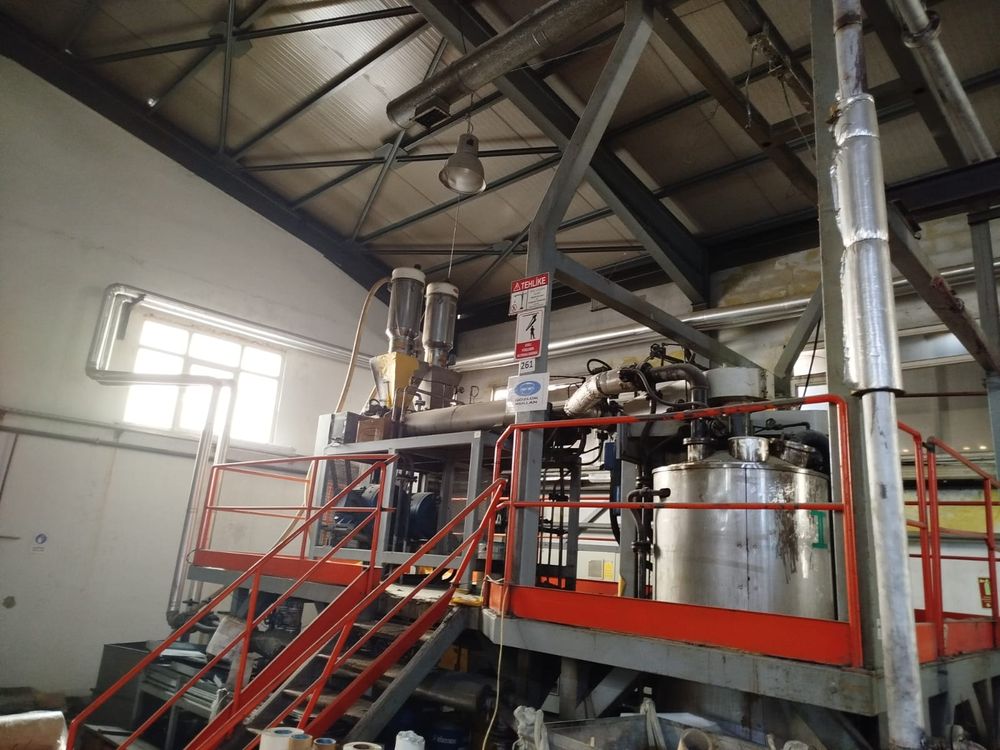

- Adhesives production
- Unwinding from primary
- Coating of hot-melt adhesives

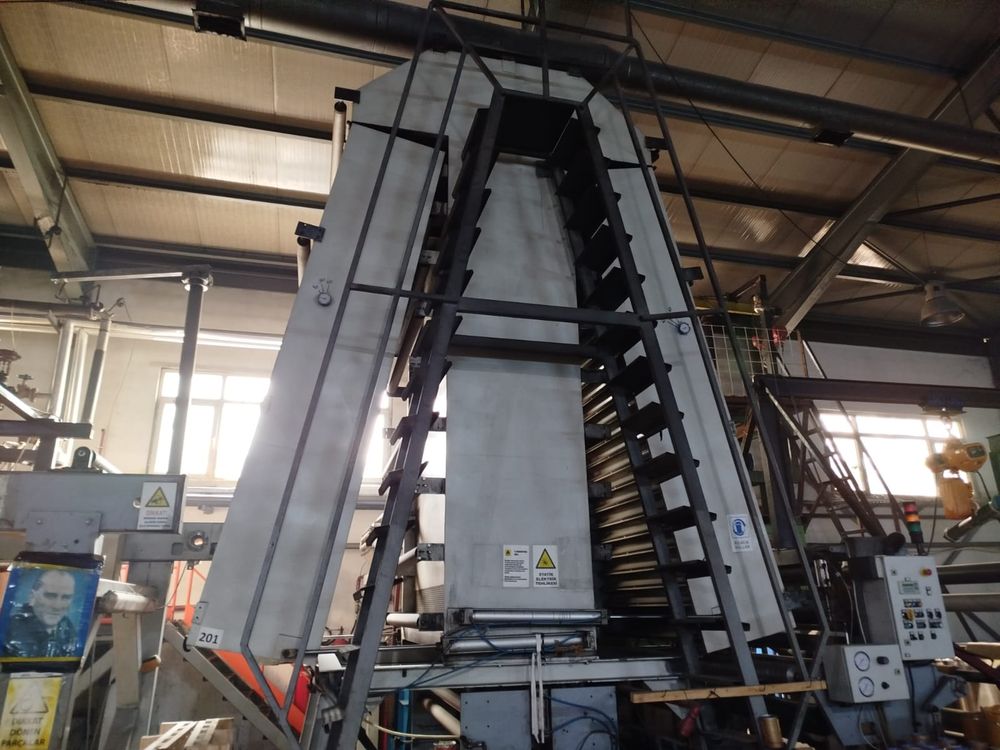

- Cooling with chill roll and hood
- Unwinding from secondary
- Lamination
- Machine direction cut
- Rewinding

GENERAL FEATURES
Model UPA / THM
Serial number 2006
Year of construction of the machine 2002
Maximum tape width 1650 mm
Coated part width 1630 mm
Off-cut coated part width 1620 mm
Mechanical speed 350 m/min
Production speed (compatible with product and support) 300 m/min
Primary unwinding roll diameter 800 mm
Primary unwinding internal diameter 3"/6"
Secondary unwinding roll diameter 600 mm / 800 mm
Secondary unwinding internal diameter 3"
Rewinding roll diameter 800 mm
Rewinding internal diameter 3"/6"
Adhesive production heating system Diathermic oil
Hot-melt head heating system Electric
Cooling Fridge
Air pressure 6 bar (minimum 5)
Electric power - main system 380 V - 3 ph
Electric power - users 110 V - 24 V c.c.
Electric power - frequency 50 Hz
Electrical normatives IEC 204-1 EN 60204-1
Noise level Between ISO 80 curve
Air pollution DPR 203 24/5/98 suppl.
ord. Uff 140 16/6/88 and
CEE regulamentation
