Others UT5-400S CNC Boring & Facing Head

Ref : 25010
Condition : Used
Manufacturer : Others
Model : UT5-400S
Type : CNC Boring & Facing Head
Year(s) : -
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)
Last check : 06 Oct. 2020

Brand: D'Andrea
Reference #25010

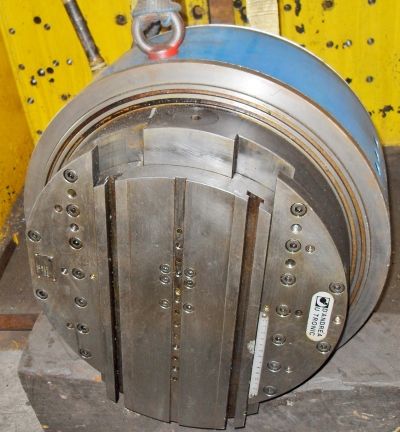

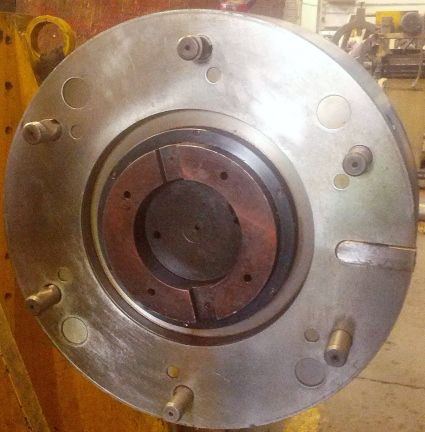

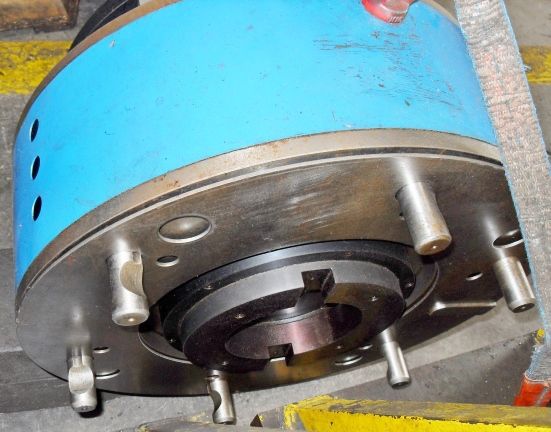

15.75" D'Andrea U-Tronic CNC Boring & Facing Head
Model: UT5-400S

FEATURES:
U-TRONIC are medium and large sized NC heads that are connected to the U
axis of the NC in the machine tool for outer facing, inner facing,
back-facing, cylindrical and conical boring and threading, concave and
convex corner rounding through interpolation with the other axes of the
machine tool.

CAPACITY:
Diameter .............................. 15.75"
Radial Traverse, C .................... 4.92"
Maximum Facing Diameter ............... 35.59"
Feedrate .............................. .04"-15.75"
Rapid Traverse ........................ 15.75"
Maximum Rotation ...................... 400 RPM
Radial Force .......................... 5920 lbs./ft.
Weight ................................ 440 lbs

NOTE:
Low Hours, Almost New
