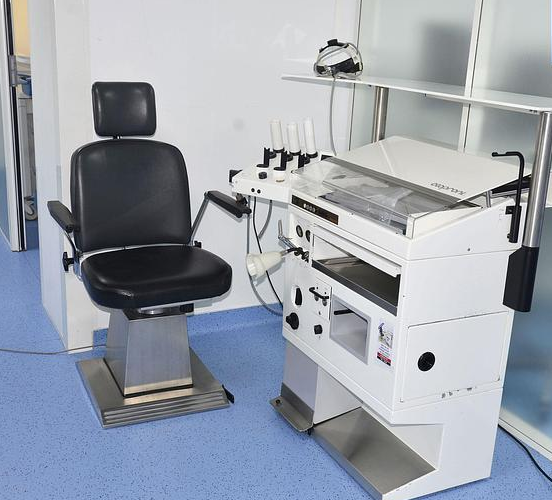

Otopront ENT consultation unit

• Construction 2.5 mm steel case, 8 –20 mm PUR top
• Overall dimensions: 1090 x 510 x 920mm (Lx W xH)
• Weight: 110 kg
• 2-output light source: 150 W
• Suction motor 32 l/min, 90% max. vacuum
• Compressor: 0.1 to 4 bar
• 1.5 ltr. disposable or reusable liquid bottle
• Separate drainage pump for discharging liquid bottles

Cold light source
The light intensity is adjustable from 50 to 150 watts and
always ensures a low light temperature and long lamp life.
Each socket uses a bulb so that independent use of
the outlets is possible.

Endoscopy chimes
The warming shells and disinfection shells are placed in
the extension arm so that ergonomic access to the scopes is
guaranteed.

The compressed air unit includes 3 bottle sprayers in different colors.
The bottles are housed in black quivers to protect the liquid from
light and therefore crystallization.

Under the spray bottles, the low voltage connectors for
electro cautery, diaphanoscope, Frenzel glasses or
electro head light are

The voltage connectors with the rheostat allow 0-6 V, 6-17 V,
2 A and 0-6 V, 10 A.

The large instrument surface, drawers and desk surface are equipped
with a shelf, which can easily be removed for cleaning or exchange.
Additionally, the shelves are organized with a set of
stainless steel dividers with brushed surface for
the instrument compartment.
A specially designed drawer allows the high-frequency coagulation
device to be integrated into the ORL 3003.
A plastic shelf next to the coagulation device provides space for
the knife and forceps, so that easy access is guaranteed.
Water filtration system
The water filter is under the extension
It is integrated into a second heating system
(to heat the water in the filter), and it is easy to connect or
disconnect via a click. All parts, filter cartridge,
are made of stainless steel, water tube and
handle and are autoclavable
to guarantee quality water without dirt (eggionelosis and
pseudomonas). The filter cartridge can be reused and
autoclaved several times.
Pipe vacuum cleaner
A must-have for every ENT unit. Protects the suction tube from
clogging and disinfects the suction between exams.
Cone-shaped adapters allow you to clean tubes and
pipes of different diameters.
Due to their steel structure and chrome-plated surface,
the adapters are easy to clean and autoclave.
Melamine waste container and drawer
The 3003 L allows easy access to the waste container and
melamine foot, drawer for used instruments.
Compressed air unit, continuously adjustable from 0.1 to 4.0 bar
(spray / politzer), fine regulation handpiece, pressure limiter,
3 spray bottles in different colors,
front cannulae in two different diameters.

This system contains a 1.5 ltr. tank for compressed air,
so the compressor only needs to be refilled 4 to 5 times a day.
The compressor is completely separate from the suction unit,
silently motorized and maintenance-free.
The chrome-plated steel handle is adjustable
Hot water flushing device
This unit is equipped with a sophisticated water filter
The water is heated in a 1.5 ltr. stainless steel tank to
prevent mineral buildup
Two thermostat controls allow precise temperature adjustment
(normally 38°C).
The water handle itself is made of chrome-plated metal and
is therefore autoclavable.
Cold water irrigation
By pressing a button on the front panel, the water changes
its temperature to cold
Engine suction unit
A powerful yet quiet suction unit: 90% max. vacuum with 32 ltr. /min.
is connected to the suction tube with on/off switch and
retraction mechanism inside the unit, when not in use.
The system is equipped with a bacterial filter,
double overflow control fuse
Mirror preheater
The mirror preheater is inside the large surface of
the instrument under a plexiglass with dust cover.
It offers space for more than 50 mirrors of different sizes.
A thermostat controls the heating of the mirrors to the
body temperature and thus protects the mirrors from fogging.
Dusting mirror
