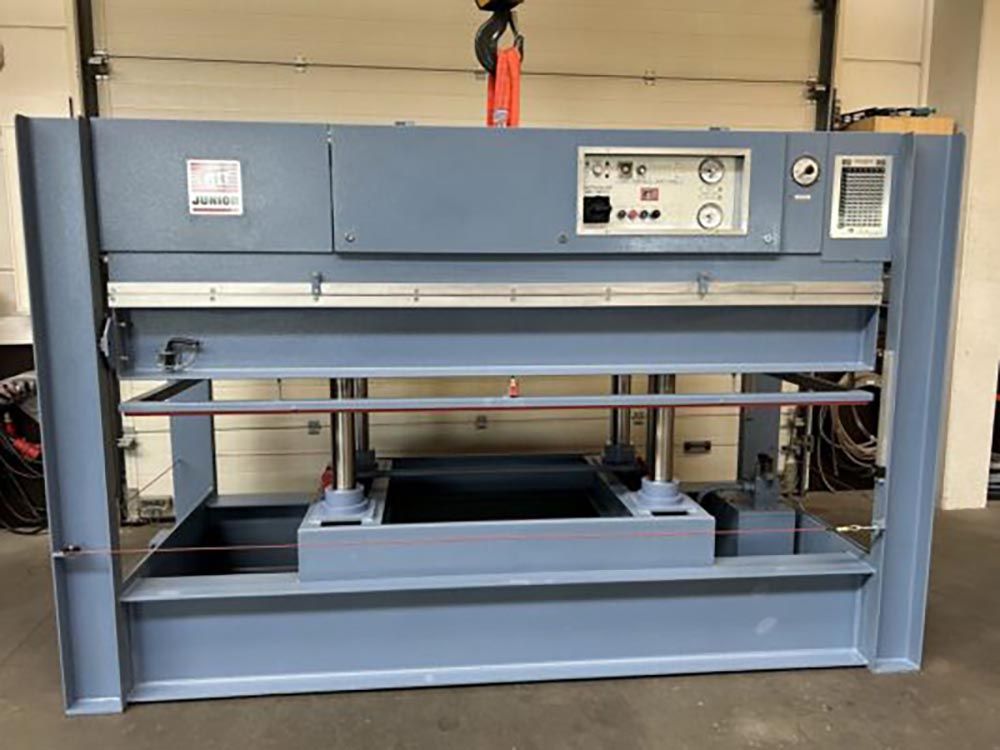

OTT JUNIOR JU2511

Used Veneer Press
Total Power consumption: 18.5 kW (rated current: 27.9 A)
Pressing area: 255 x 110 cm
Aluminum electric heating plates with film tensioning system
Opening width: 40 cm
4 hydraulic cylinders, each 90 mm in diameter
Total pressing force: 70 t
Spec. pressure: 2.8 daN/cm²
Max. hydraulic pressure: 275 bar
Power per heating plate: 7,800 W
Circumferential safety step inside and outside (emergency stop)
Automatic opening (time-controlled)
Stroke limiter / opening width limiter (adjustable limit switch)
External dimensions: approx. 304 x 123 x 191 (W x D x H)
Weight: 3.0 t
