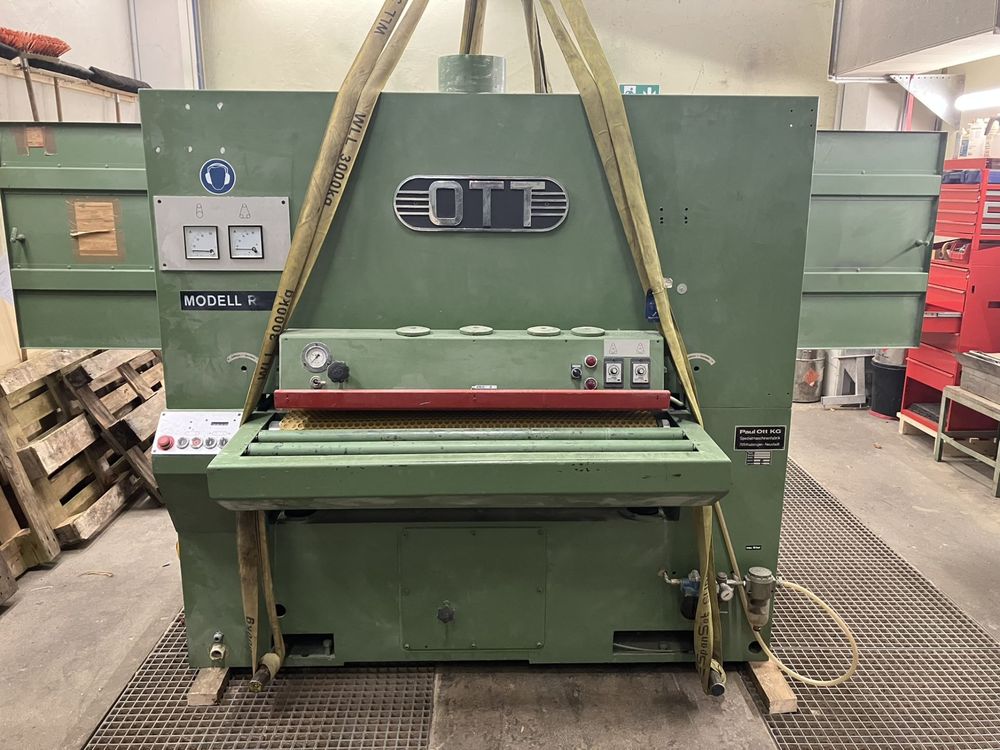

OTT RS-0 110

Number of belts: 2-belt
Max. working width: 1100 mm
Min. working height: 3 mm
Max. working height: 160 mm
1st belt: Calibration roller
Diameter of 1st roller: 260 mm
Design of 1st roller: Grooved rubber roller
Abrasive belt length, 1st unit: 1900 mm
Abrasive belt width, 1st unit: 1100 mm
Abrasive belt speed, 1st unit: 25 m/sec
Drive, unit 1: 20 kW

2nd belt: Cushion unit
Abrasive shoe, 2nd unit: Pneumatic
Abrasive belt length, 2nd unit: 1900 mm
Abrasive belt width, 2nd unit: 1100 mm
Abrasive belt speed 2nd Unit: 25 m/sec
Drive 2nd Unit: 13.5 kW
Cleaning Brushes: Yes
Feed Speed: 7 sets
Feed Speed: 14 sets
Control: Manual Control Panel
Electric/Pneumatic Belt Oscillation: Yes
Table Lift: Electromotive
Table Display: Mechanical Digital Display
Operating Pressure: 6 bar
Machine Number: 185
Weight approx.: 2500 kg
Dimensions: 1800 x 2000 x 1900 mm
Suction Diameter: 2 x 200 mm
