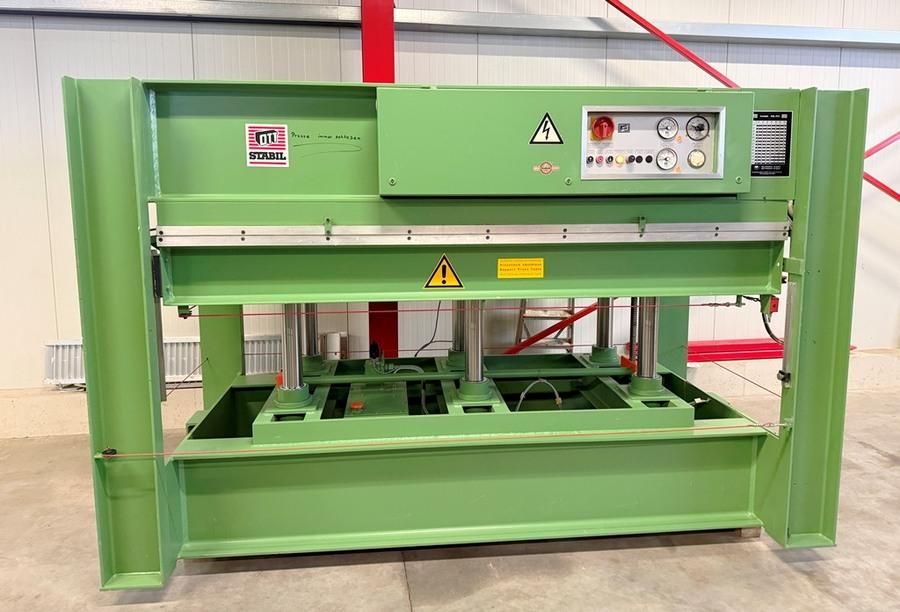

OTT ST 2513/135

Veneer press
Aluminium heating plates with protective foil 2550 x 1350 mm LW
Total pressure 135 tons
Specific pressure 4.4 - 6.0 kg/cm2
6 hydraulic cylinders with diameter 90 mm
Maximum operating pressure 340 bar
Heating plates electrically heated
2x emergency stop safety line all around
Opening width 400 mm, infinitely adjustable
4 heavy longitudinal beams in the press table ensure enormous stability
Pull-out material support on the left front side
Button control for close - open - stop
Total electrical connection approx. 22 kW
Transport dimensions approx. 3150 x 1500 x 2100 mm LWH
Weight approx. 5000 kg
