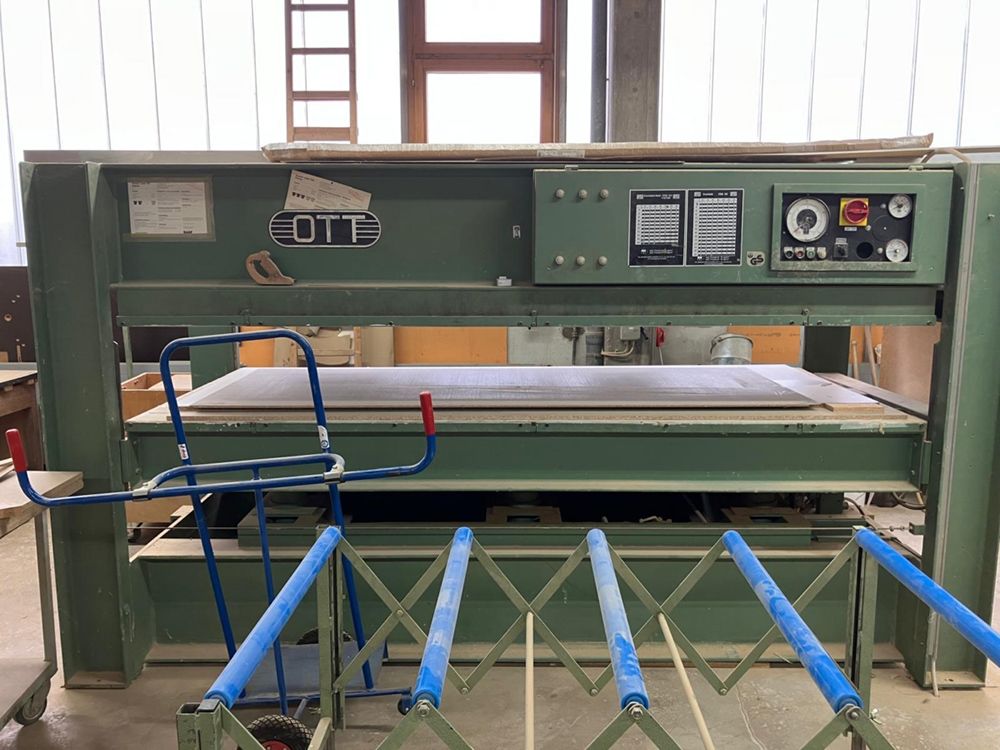

OTT Stabil-3013

Veneer Press
-Pressing area: 2,500 × 1,350 mm
-6 cylinders
-Replaceable aluminum plates
-Protective film
-Plate size: 3,000 x 1,350 mm
-Total pressing force: 135 t, 3.5 - 5.5 kg/cm²
-Operating pressure, max. 340 bar
-Pressure cylinders: 6 x 90 mm diameter
-Opening width: 400 mm
-Weight with 2 plates: approx. 6,300 kg
-Overall length: 3,530 mm
-Overall width: 1,520 mm
-Overall height with 2 plates: 2,000 mm
-Motor power rating: 2.2 kW
-Power rating per electric heating plate: 11.2 kW
-Consumption per plate: Approx. 4.5 kW/h
-Heating time 20 - 100 degrees Celsius: approx. 20 min
-Consumption per hot water heating plate: approx. 9000 W/h
