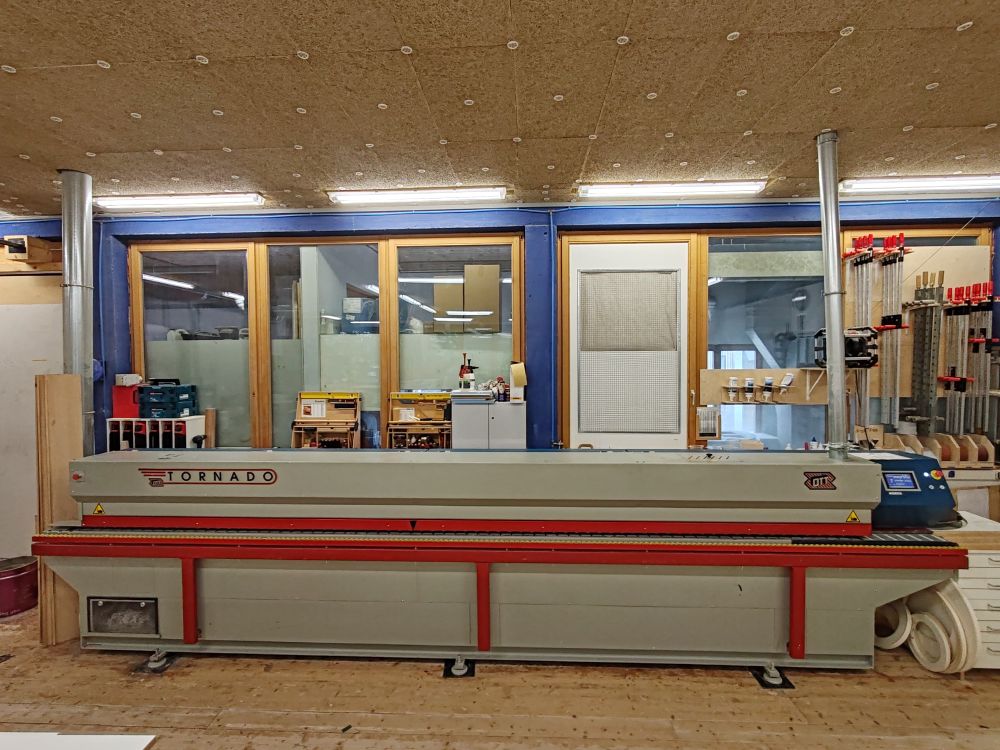

OTT Tornado T/41231

Used machine
Equipment and technical specifications:
- Round pot gluing unit
- Feed unit with automatic edge band magazine
- Pressure zone with multiple pressure rollers
- End trimming: 2 motorized saw units for end/end cap cutting
- Router/bottom cutter: 2 milling units with tracing wheels for radius or bevel
- Radius scraper: pneumatically controlled, for finishing radii
- Flat scraper: for smoothing edge surfaces
- Polishing unit: 2 motorized polishing wheels for final finishing
- Riepe spray device
- Control system: PLC with control panel

- Feed speed approx. 10-12 m/min
- Workpiece thickness up to 52 mm
- Edge thickness 0.3-12 mm
- Power supply 3x 400 V AC, 50 Hz
- Rated power 12.7 kW
- Rated current 30.5 A
- Control voltage: 24 V DC
- Maximum fuse: 35 A (5 x 6 mm² connecting cable)
Machine dimensions: approx. 6120 x 840 x 1385 mm
Machine weight: approx. 3,000 kg
