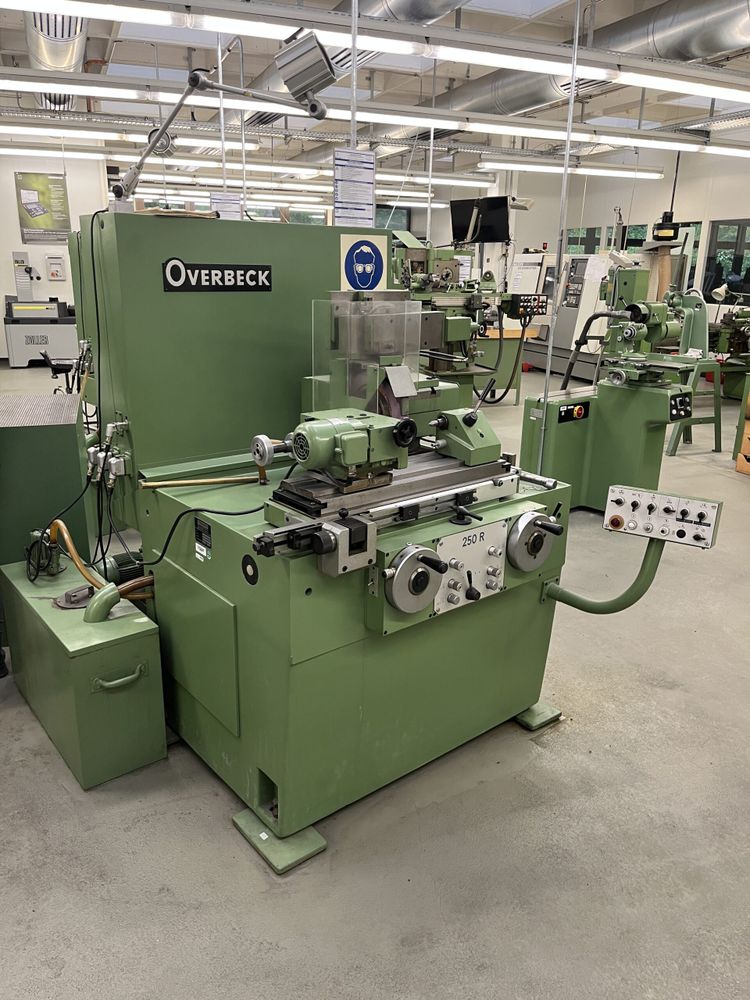

Overbeck 250R

Maximum grinding diameter 100 mm
Maximum clamping length 280 mm
Maximum grinding length 250 mm
Workpiece spindle speed 150–1350 rpm (stepless)
Center height 100 mm
Swing diameter 180 mm
Grinding spindle speed 2250 / 2750 rpm
Grinding wheel diameter 300 mm
Grinding wheel width 60 mm
Workpiece spindle internal taper MK4
Tailstock internal taper MK2
Power requirement 4.5 kW
Floor space 2.5 x 2.9 m
Weight 1700 kg

Features:
Operating manual
Three-jaw chuck (workpiece holding)
Collet set (workpiece holding)
