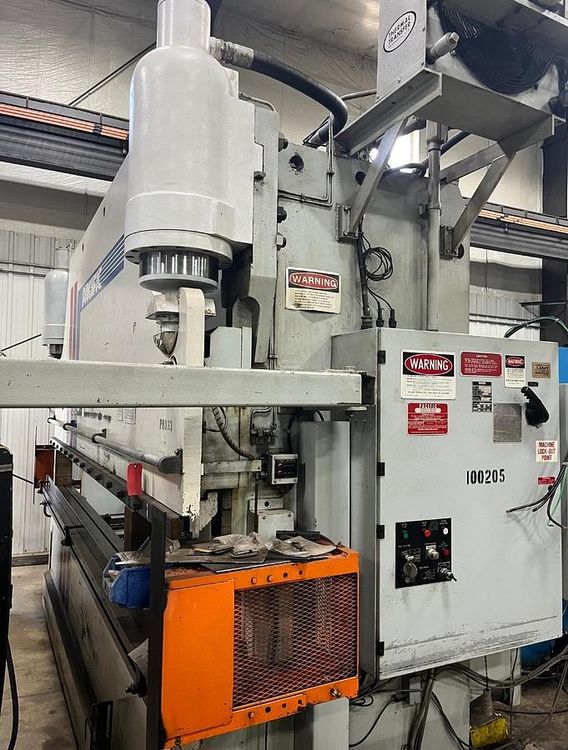

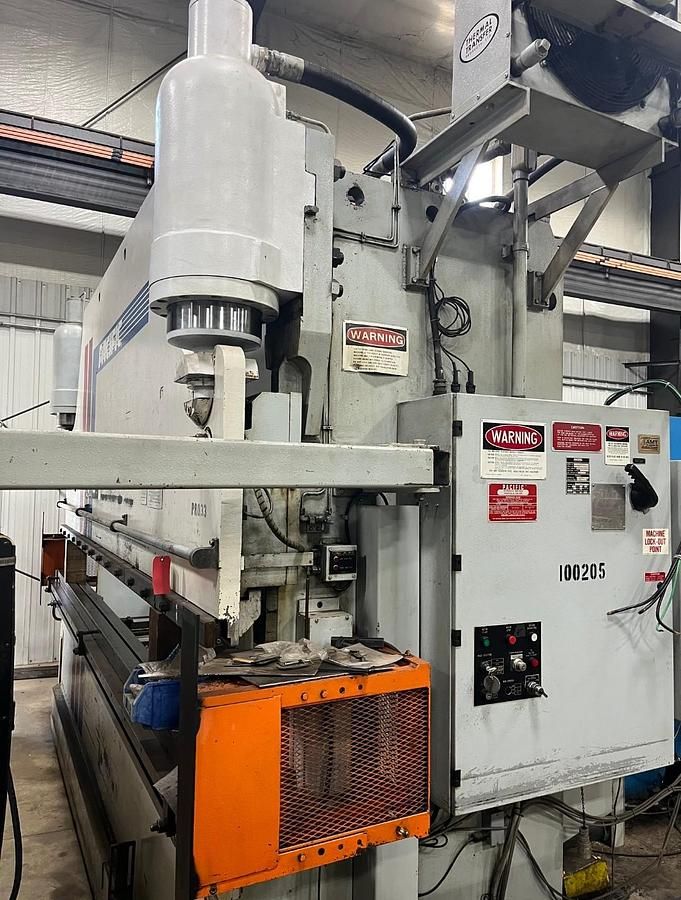

Pacific FF230-14IIS 230 tons

Press force 230 tons
Overall length of bed and ram 14'
Distance between uprights 12' 5 1/2"
Throat depth 8"
Controlled axes 6
Open height 18"
Stroke 8"
Closed height 8"
Oil capacity 200 gallons
Main motor 40 HP, 480V
Machine dimensions 14' x 11' x 8'
Machine weight 32,500 lbs

Features
Cybelec Modeva 10 CNC control
Wila bed compensating die holder (crowning)
Flush floor design
Hydraulic top clamping
CNC backgauge consisting of X, X1, R, Z1, Z2
Many manuals
Side barriers
No light curtains
