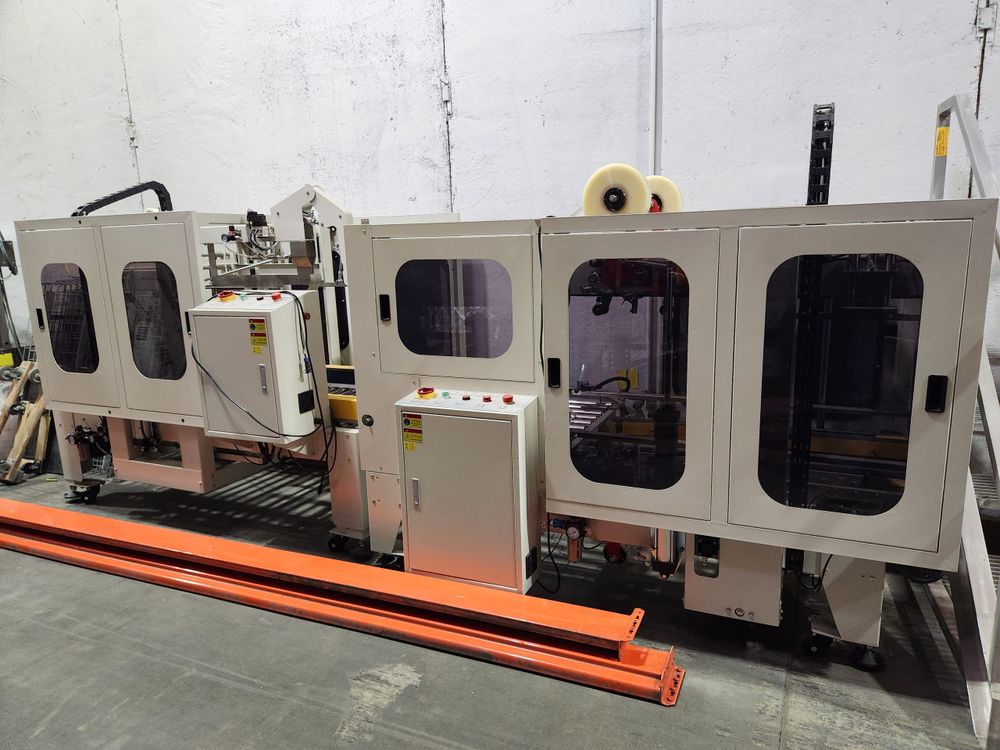

PACKAGING & FULFILLMENT LINE

Overall Throughput 15–20 cartons/min, scalable to 25+
Label Application Rate 1,500 in/min for product labeling
Label Application Rate Up to 50+ cases/min with print/apply system
Shrink Wrapping Capacity 720 units/hour via tunnel sealing system
Carton Dimensions 4" x 6" up to 18" x 24"
Case Size Compatibility Up to 20" x 20" x 24" master cartons
Label Accuracy ±0.0625" with encoder feedback
Conveyor Speed Adjustable from 15 to 60 FPM
Robotic Functionality 6-axis FANUC arm, 7–10 pick/place cycles per minute
System Control Distributed manual or PLC triggers with optional encoder syncing
Automation Logic Sensor-triggered station cycle synchronization
Labor Requirement Operable with 1–2 personnel per shift
Cycle Control Supports manual and timed cycle logic across zones
Void Fill Dispense Modes Timed, pedal, or sensor-triggered top-fill cycle
Labeling Modes Wipe-on (SL-1500) and print/apply (Videojet) with live encoding
Installation Footprint 42–48 linear feet in U, L, or inline configurations
Duty Cycle Rated for dual-shift (16 hour) daily operation
Safety Features E-stops, light curtains, interlocked access, OSHA-compliant mobile stair platform
Power Requirements 120V / 208V mixed; 15–30A per zone
Air Requirements Compressed air at 80 PSI required for labelers and tape heads
Noise Profile Operational noise 75–85 dB across full system run
