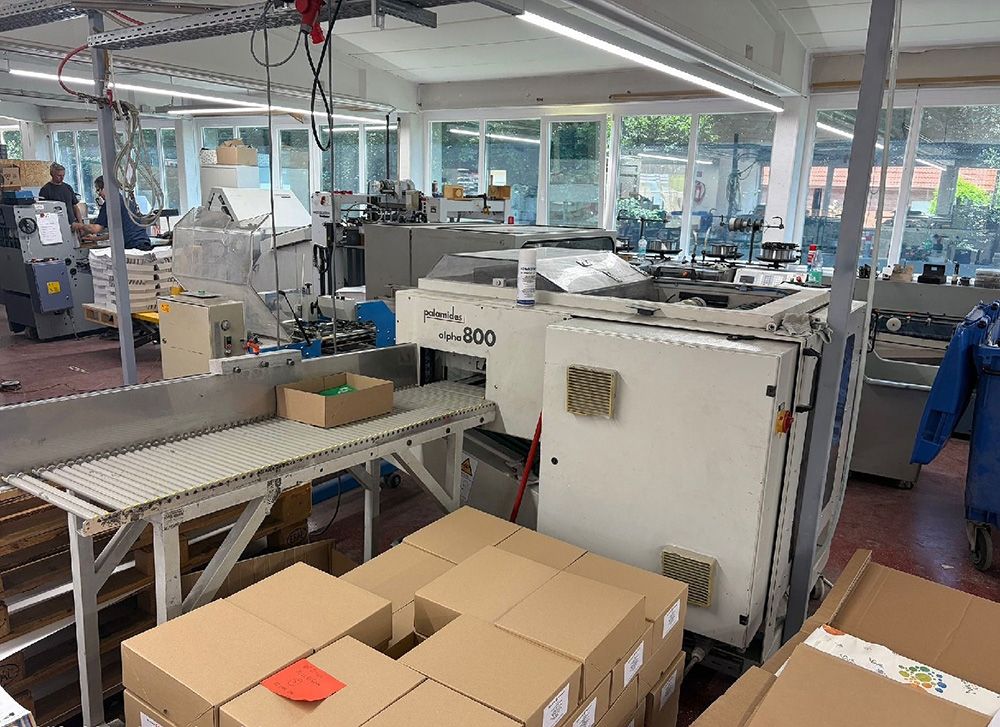

Palamides Alpha 800

Stack delivery
Format: Infeed Length x Infeed Width
- Minimum Format 90 mm x 90 mm
- Max. at 1-up 300 mm x 800 mm
- Max. at 2-up 300 mm x 380 mm
- Max. at 3-up 300 mm x 240 mm
- Max. at 4-up 300 mm x 170 mm
- Max. at 5-up 300 mm x 130 mm
- Max. at 6-up 300 mm x 105 mm

Stack height:
- Min. Stack Height: 20 mm
- Max. Stack Height: 120 mm
Stack level:
For clean stack formation of saddle-stitched brochures and 4-page folded brochures
Size control: Electronic Format Monitoring with Electronic size monitoring with a waste-sheet diverter
Misfolded products are ejected (tolerance: �2 mm)

Equipment:
- Electronic Sheet Counter
- Pressing Unit
- Jogging Device
- Air Blast Device:
- Anti-Static Device
- Inspection Sheet Diverter
- Delivery table

Link: - Saddle Stitcher Interface
For operation on saddle stitchers
Navigator: For operation on MBO folding machines with Navigator control
Connection: - Interface to machines from other manufacturers upon request by palamides
Condition: How it stands and goes
Speed: Speed: 700 stacks per hour per up
Power supply: This Machine Is Configured for 400 V, 50 Hz
Compressed air supply: Compressed Air Consumption: 100 l/min net, 6 bar (without Air Blow Device)
Power input: Electrical Connection: 3.5 kW
Important: Observe Your Utility Company's Connection Requirements!
CE mark: The machine bears the CE mark
Specifications: Technical data and illustrations are subject to change.
