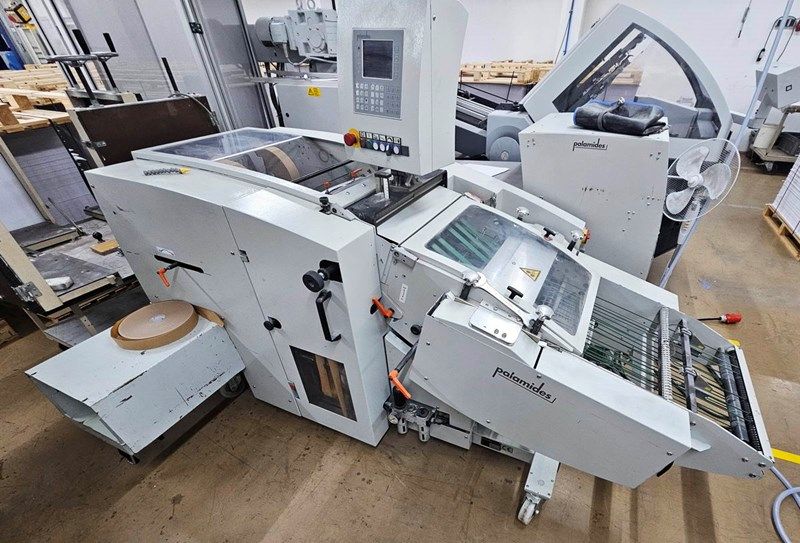

Palamides Delta 502

Automatic Bundle Stacker
- working width: 510 mm
- up to 2 bundling stacks
- swivelling control panel
- quick set-up mode without tools
- press-station with pre- and main-pressure-roller and packet-pressing up to 3,5 t
- collecting, counting, and vibrating in the chute to create clean stacks
- bundling of piles in the magazine shaft with paper and plastic materials
- solid and reliable Electronic Impulse Welding process (EIW)
- packet-lift-delivery (one-man-operation of folder with Palamides)
- the delta-502 is mobile for quick changes on different machines

Technical Data:
- packet height min.: 20 mm
- packet height max.: 150 mm
- performance: 600 packets/h per repeat
- speed: 15 - 200 m/min
- infeed height: 400 - 1050 mm
- electric power: 6 kW
- pressure air: 6 bar dry air, to be provided by user

Formats: (infeed-width x infeed-length)
- min. 110 x 95 mm
- max. 1 repeat: 510 x 300 mm
- max. 2 repeats: 235 x 300 mm
