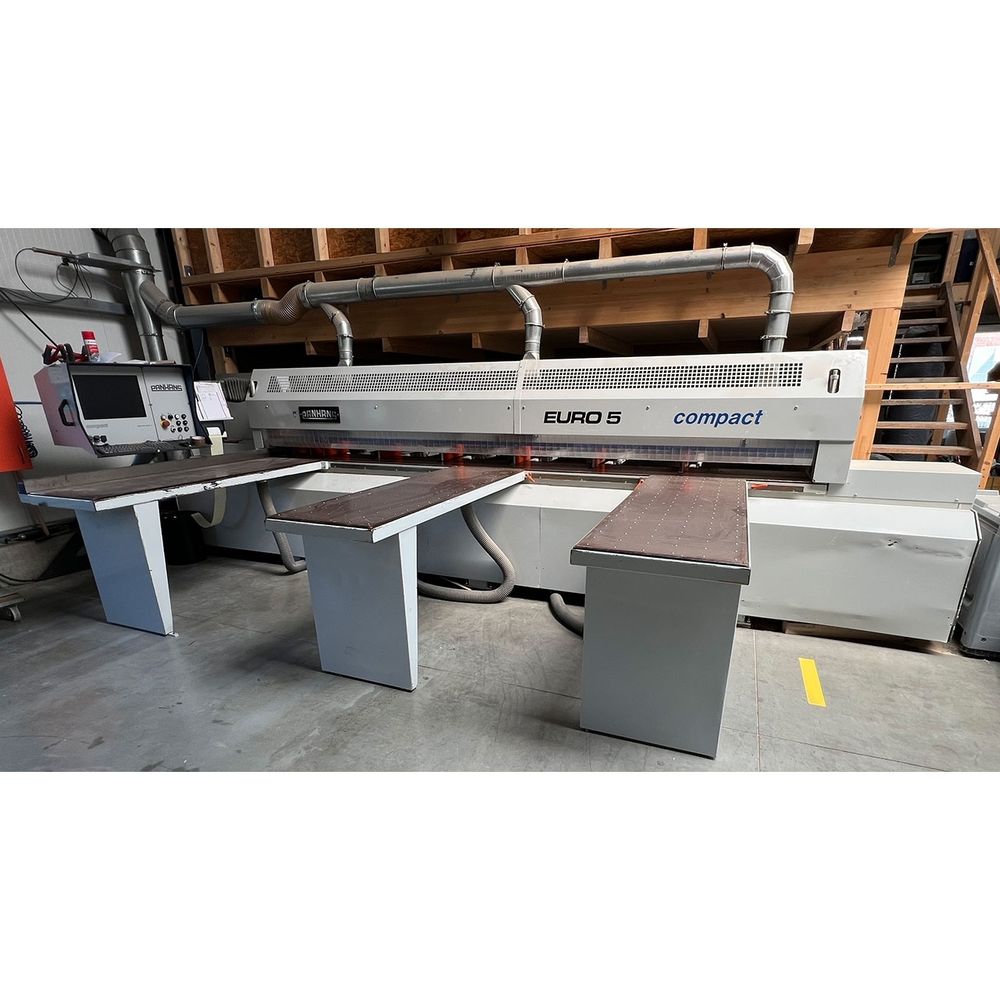

Panhans 693/EURO 5

Panel saw
Used machine
Weight: 4600 kg
Panel saw
4200x4200mm
Excellent technical condition!
PC control is up to date.
Including optimization software (office version)

Cutting length: 4,200 mm
Operating side: left
Power supply: 400 V / 50 Hz.
Main saw motor 10 HP: 7.5 kW
Cutting height adjustment: 4 stages, pneumatic lifting mechanism for main saw
Scoring saw: 1.1 kW
Manual adjustment of scoring saw
Pneumatic lifting mechanism for scoring saw
Saw feed rate: 40 m/min with chain
Suction nozzles: 3 pieces
Collet chuck: 6 pieces rigid
Position: 1605/2845/4085/4705/5115mm
Air cushion corner table: 600 x 1800 left
Angle ruler at the front with sensor
Main saw blade diameter: 280 mm
Scoring saw blade diameter: 125 mm (2 pieces)
Air cushion table 600 x 1800 mm, mobile, with VP450 blower
Control panel on the left
Side pressure stroke 1000 mm
Paint finish: white / blue label printer
