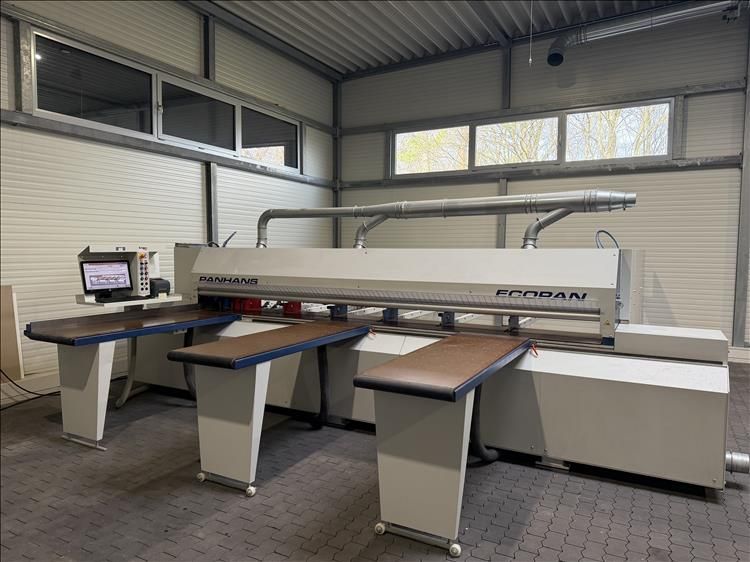

Panhans ECOPAN

Pressure beam saw
PC control with optimization,
Scoring unit,
Automatic cutting length detection,
Side pressure device,
Air cushion tables,
Infinitely variable feed of the saw carriage,
Label printer

Technical data :
Cutting length: 4,200 mm
Cutting width: 4,200 mm
Max. cutting height: 72 mm
Number of collets: 6
Max. saw unit feed: 100 m/min
Max. width fence feed: 80 m/min
Main saw motor power: 11 kW
Scoring unit motor power: 1.5 kW
Main saw blade diameter: 300 x 30 mm
Scoring saw blade diameter: 180 x 30 mm
Lower dust extraction port diameter: 140 mm
Upper dust extraction port diameter: Pressure bar: 3 x 100 mm
Flow rate: 5,000 m³/h
Compressed air connection: 6 bar
Air consumption: 140 l/min
Rated current: 38 A
Max. fuse rating: 50 A
