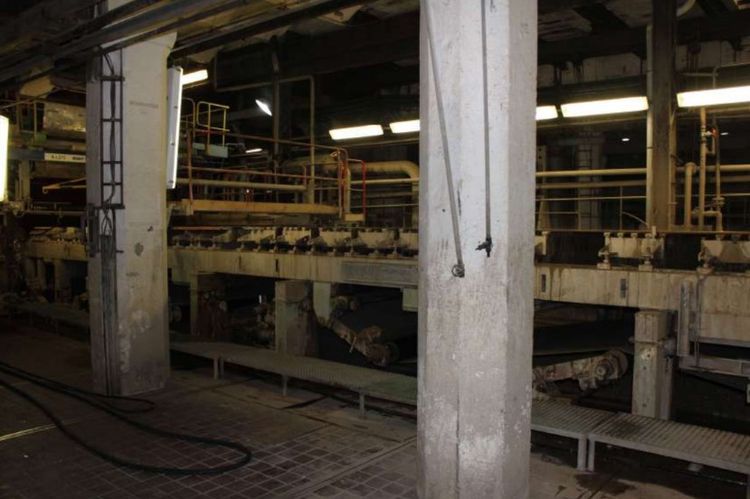

Papcel ( start 30 gsm ) Kraft paper machine 2450/2500 mm start 30-120 gsm 60 TPD

Paper/trim width 2450 mm (2500 mm possible)
Manufacturer: Papcel Litovel, Czech Republic
Grammage range 30 – 120 g/m² (currently from 40 gsm)
Production Capacity: Approx. 60 t/day depending on grade 48 t/24 h (50 g/m²) or 66 t/24 h (70 g/m²)
Max Operating Speed 300 m/min

Paper Products
originally sulphate technical papers / Currently kraft papers for paper bag production,
Fluting / virgin pulp based or recycled paper based
Also produced printing/writing papers
Also glassine papers °SR 75

Applications Mainly for packaging and wrapping; supplied calendered or uncalendered

Year:

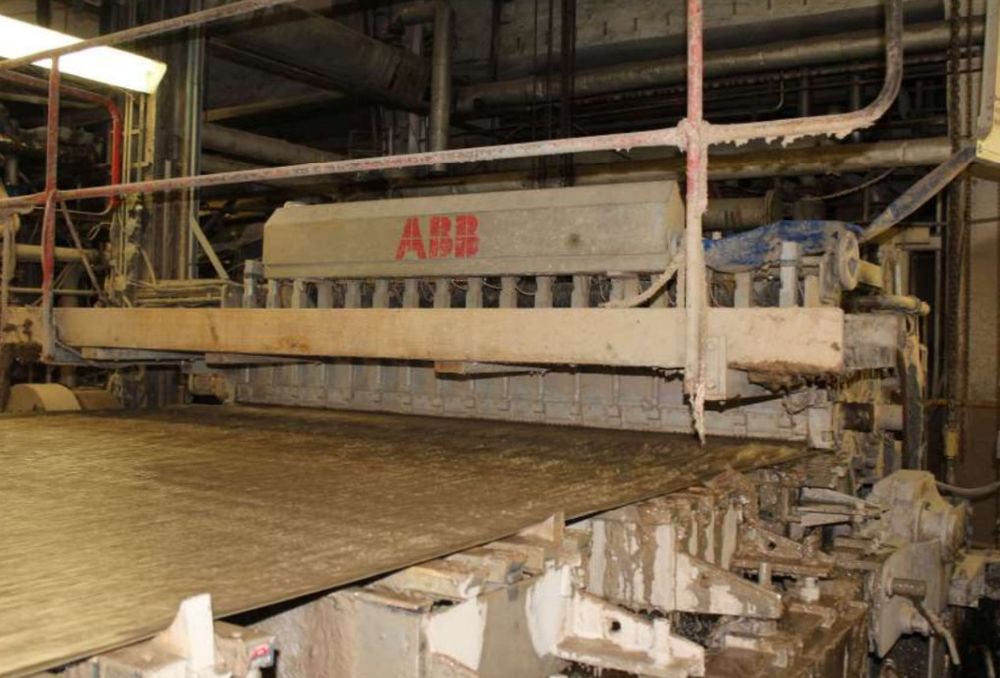

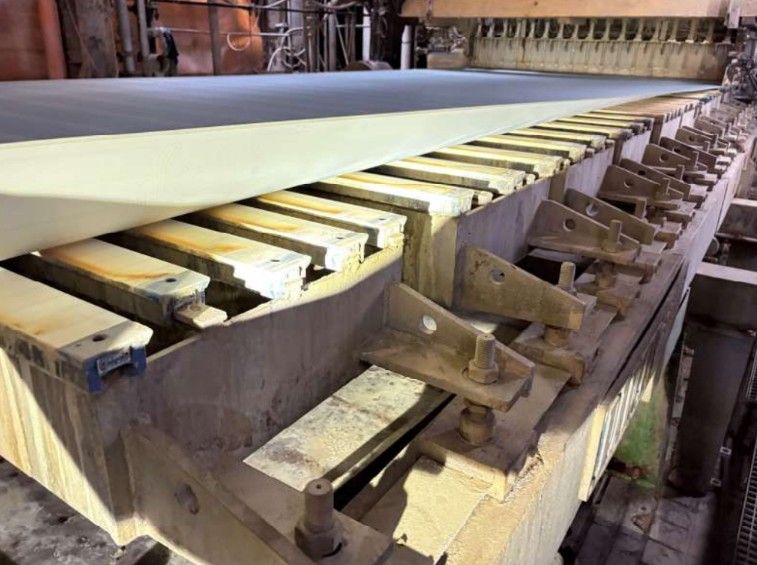

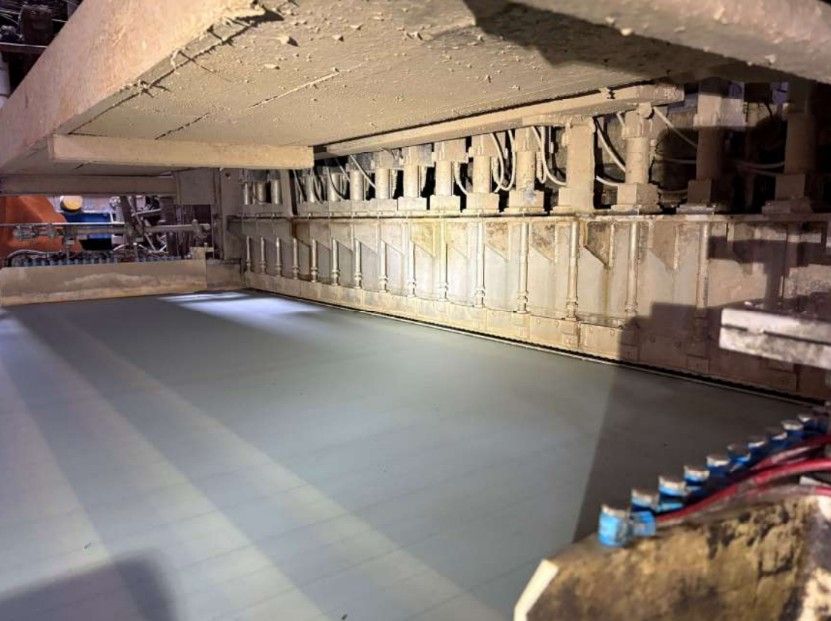

1998 headbox, wire part, approach flow rebuild

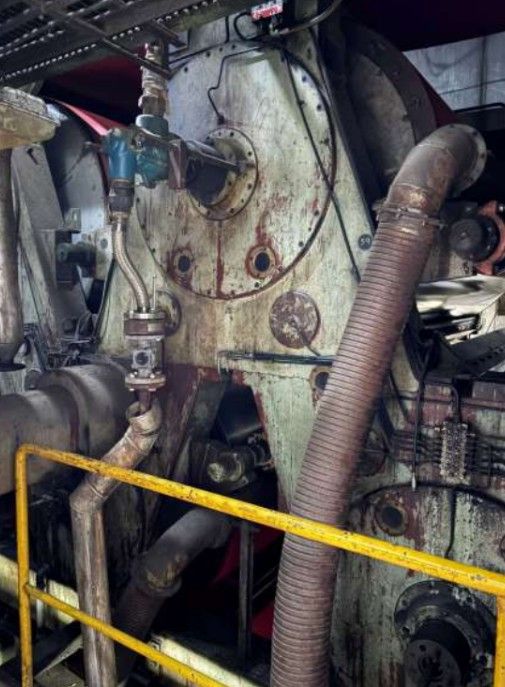

2006 modernisation of steam + condensate system
2010 new fully enclosed hood

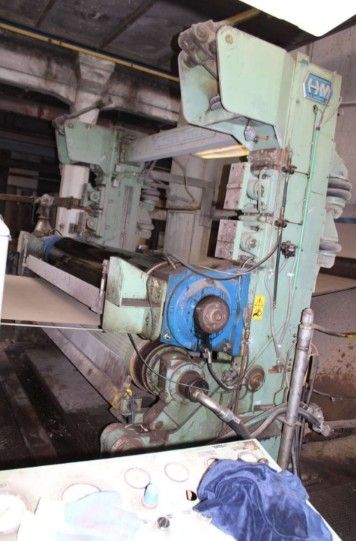

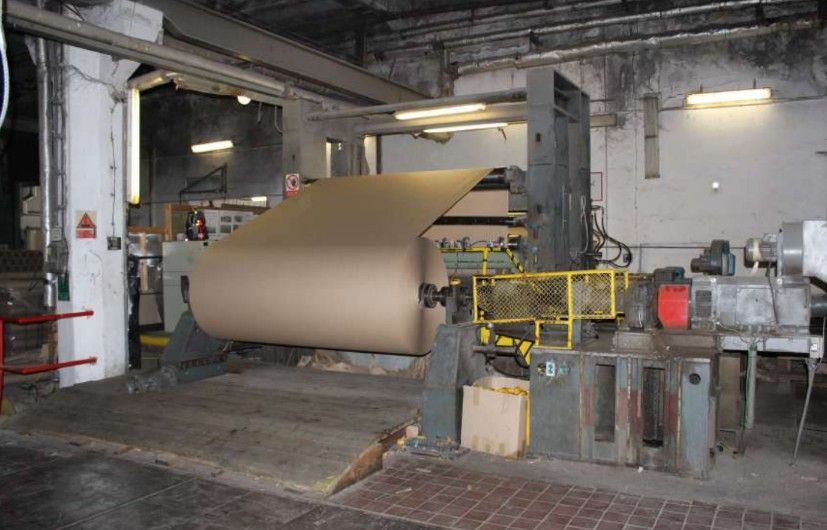

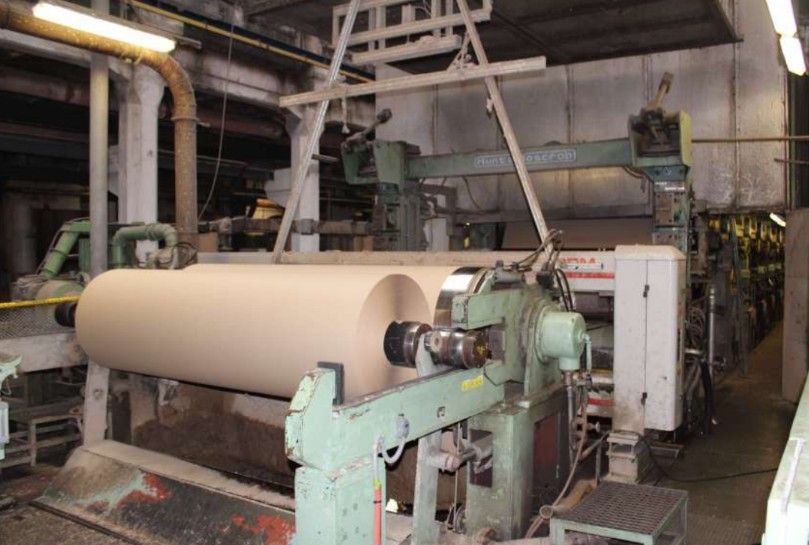

2010 new rewinder spreader roll
2021 new QCS Honeywell, profile control of headbox in CD and machine direction,
2022 New high pressure pumps
2023 complete retrofit of refining, new instrumentation
2021-23 New AC drive Siemens for PM
21 new QCS Honeywell, profile control of headbox in CD and machine direction,
2023 complete retrofit of refining, new instrumentation
2021-23 New AC drive Siemens for PM

photos expected shortly
-
OPTION - Krofta flotator diameter 5,5 m (SPC18)

-OPTION - Stock preparation – available; common for 2 paper machines, scope to be discussed

Current production capacity for 2 paper machines is 180 tpd of waste paper and 100 tpd for pulp.

1x Horizontal pulper Papcel HV25 for waste paper. Chest lined with stainless steel.

Operating volume around 20 m3.

Reject goes into secondary pulper Papcel PSN30 (automatic washing operation in cycles)

1x HD Cleaner Lamort EPE 250/3200 with flow up to 3200 lpm.

Primary coarse screen Celpap DS-30 with 2,2 mm hole screens

Spare primary coarse screen as a backup (lower capacity).

Reject screen – washing separator VSV-20 with 2,2mm hole screen plate, operated in automatic cycles

Vibrating screen

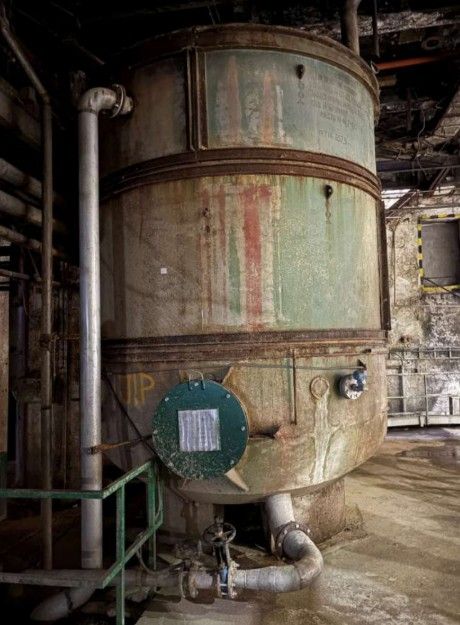

1x Vertical pulper Papcel VV36 for pulp or waste paper. Top Chest new (stainless steel) in 2023. Operating volume 14 m3.

Roll guillotine above pulper for dry broke

1x HD Cleaner Lamort EPE 250/3200 with flow up to 3200 lpm.

1x Vertical pulper Jylhavaara as backup

1x 1400 m3 pulper tank silo (stainless steel) with new Sulzer agitator

1x 700 m3 pulper tank silo (stainless steel) with agitator

1x 500 m3 tank (stainless steel) with agitator

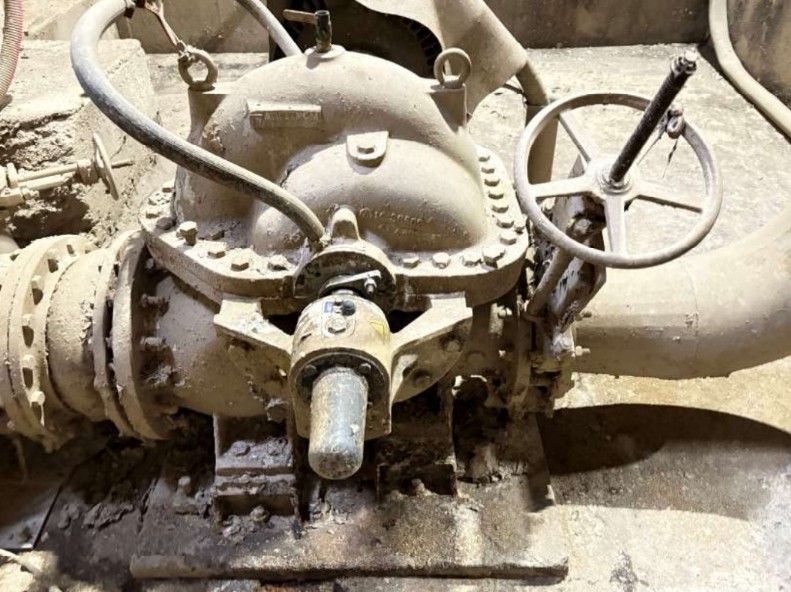

All pumps, instrumentation, piping, motors and other accessories.

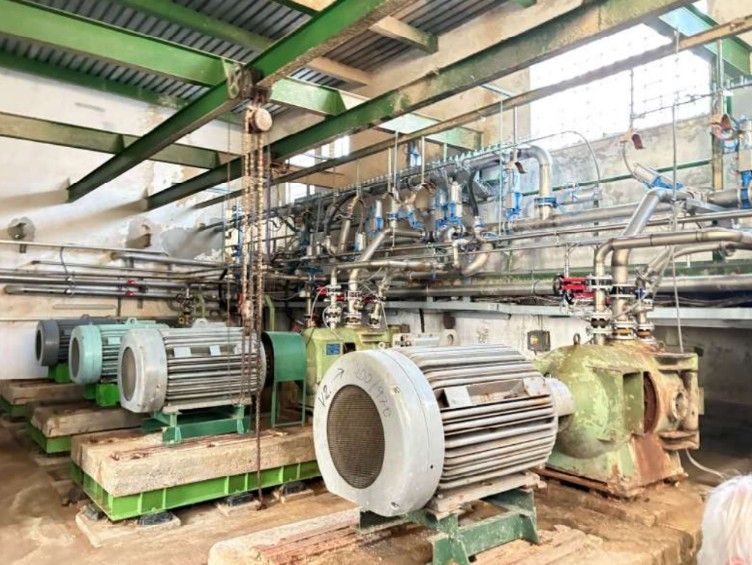

OPTION - Refiner line with 5 double disc refiners for flow up to 2000 l/min. Fully automatic control with pneumatic valves and consistency control. Variability to deploy 1-5 refiners depending on product type.

3x Stainless steel tank with inclined bottom and agitator cca 20-50 m3

Magnetic traps before refiners

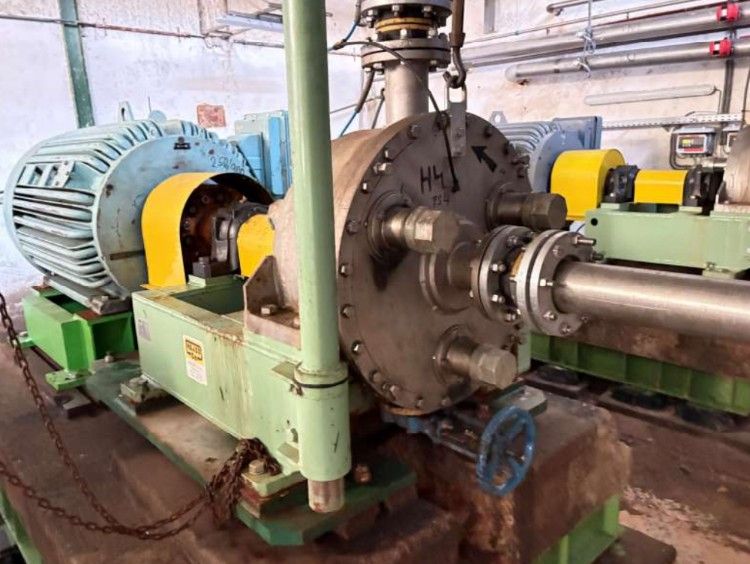

Double disc refiner Voith 0SDM with 250 kw/6000V motor (refurbished by Voith)
2x Double disc refiner Voith 0SDM with 200 kw/6000V motor (refurbished locally)
2x Double disc refiner D4-500 (local manufacturer, year 2003 refurbished 2023) with 250 kw/6000V motor

All pumps, instrumentation BTG and Yokogawa, piping, motors and other accessories.
