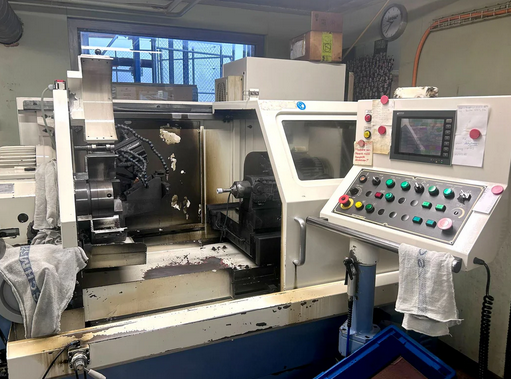

Paragon RIG-150NC

Grinding diameter min 6 mm
Grinding diameter max 150 mm
Grinding depth max 150 mm
Swing above workpiece table 520 mm
Longitudinal travel Z-axis 540 mm
Rapid traverse Z 9 m/min
Workpiece spindle head tiltable +13/-5°
Workpiece spindle head stepless up to 800 t/min
Voltage 3x380 V 50 Hz
Grinding spindle motor 1.5 kW
Workpiece spindle motor 1 kW
Machine weight 2400 kg
Machine dimensions L2807×W1440×H1920 mm
Coolant system
Paper filtration system
Set of grinding arbors
3-jaw chuck Ø200 mm
Pneumatic clamping chuck
Central lubrication
Internal grinding spindle max speed 30000 t/min
Internal grinding spindle max speed 20000 t/min
Internal grinding spindle max speed 15000 t/min
