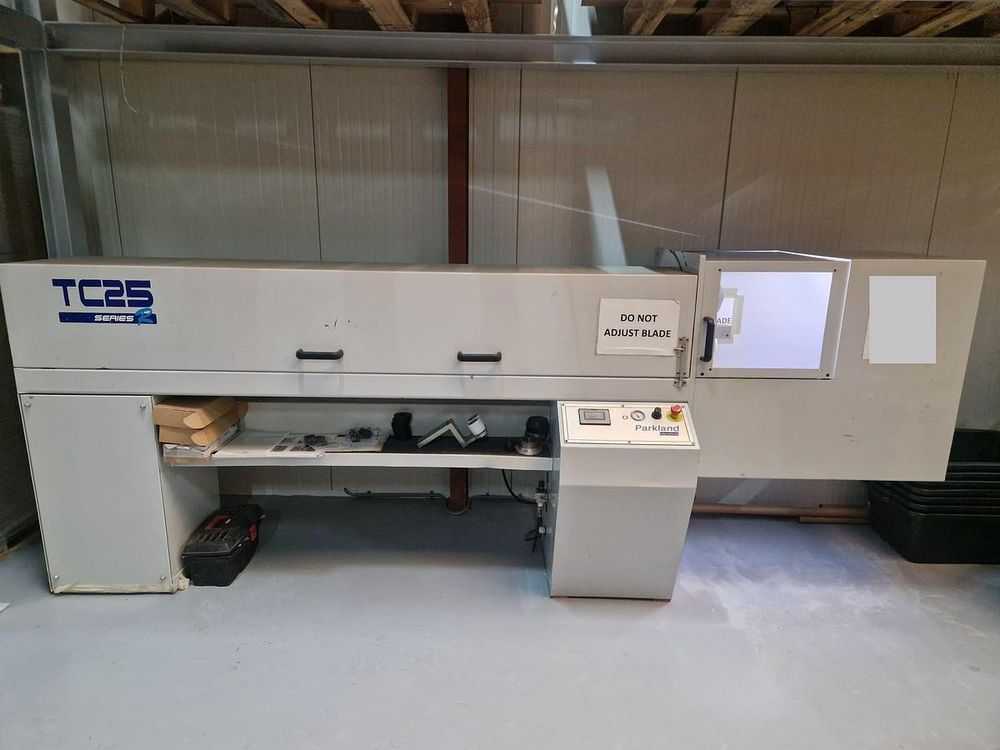

Parkland TC25 R Series
EUROPE (Western and Northern)
Semi-Automatic Core Cutter
The Parkland TC25 Series R is a semi automatic machine that is ideal for customers looking for high quality, accurate finish with a minimum amount of operator input.
An entry level automatic machine that has quick and easy settings for different core diameters
and wall thicknesses, this is ideal for the medium volume user.
Machine Specifications and Equipment:
Cores: 25, 40, 45, 76, 100, 152mm diameter
Parent cores range from 200mm (8″) – 2000mm (80′′) long
Core sizes from 25.4mm (1″) – 152.4mm (6″) ID
Wall thickness 20mm (3/4″) cardboard
Quick and simple core diameter change
Accurate cutting length with indexing accuracy of ± 0.2mm
CE Marked to the latest Health & Safety standards

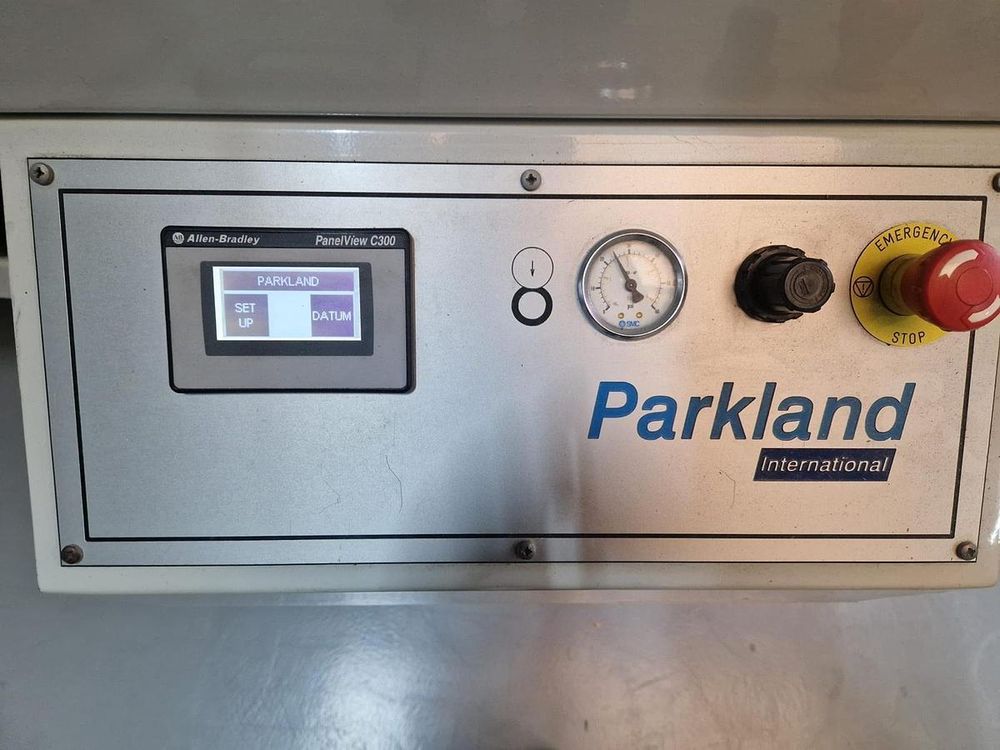

HMI colour touch screen
Rockwell Automation worldwide support network
Automatic parent core measuring facility

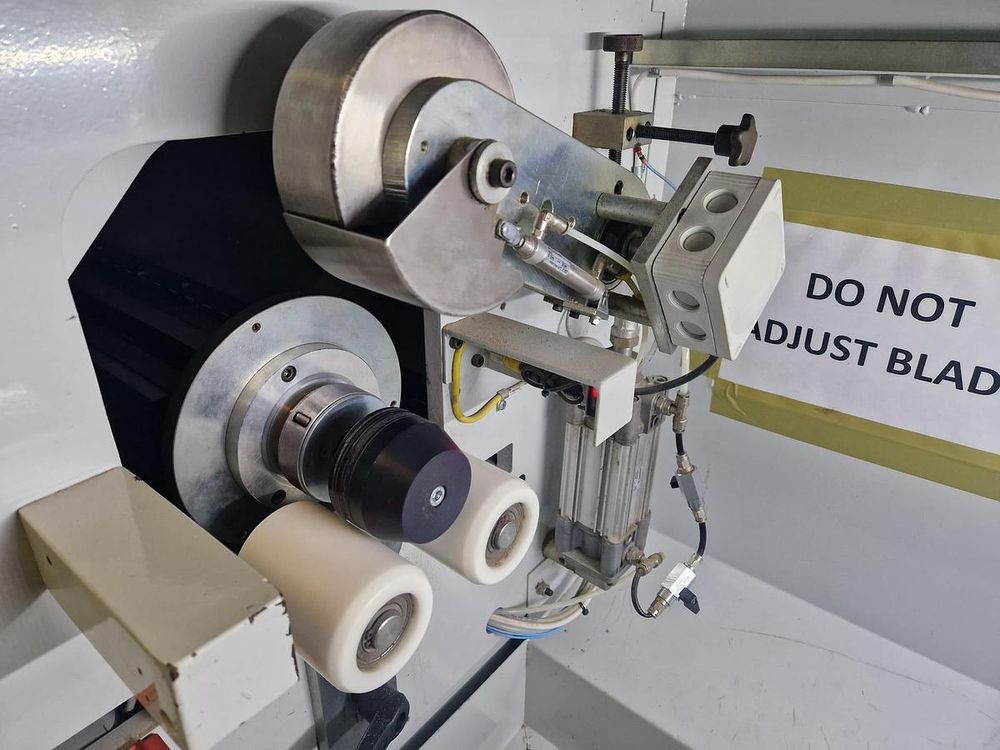

Mechanical torque chuck for gripping the core
Electrical Supply-380/440v/50/60Hz/3 phase, neutral and earth
Power Supply 16amps / phase
Air Supply-80psi / 5.5bar
Air Consumption – 1cfm (1.7cu.m/hour)
