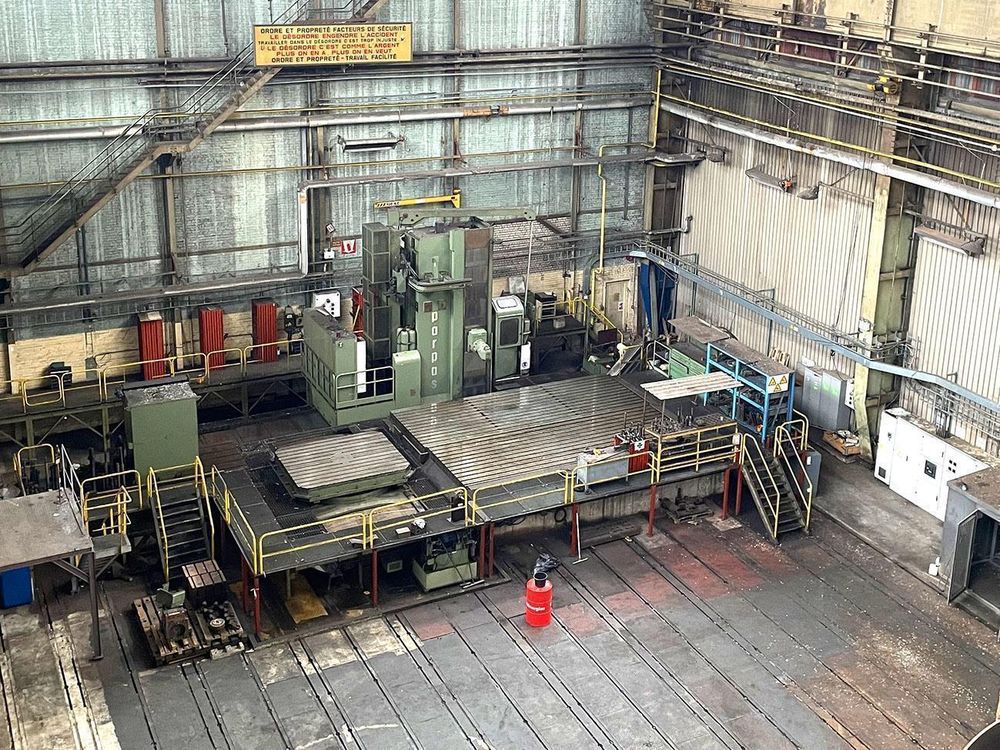

Parpas ML120-1 2000 rpm

Longitudinal travel X-axis: 12,000 mm
Crosstravel Y-axis (ram travel): 1250 mm
Travel Z-axis (Height): 3500 mm
Max quill travel Z': 1250 + 650 mm
Power on spindle: 37 kW
Admission in milling head spindle (ISO): ISO 50
Max speed range: 6 > 2000 rpm
Control: Heidenhain

6 axes simultaneously (X / Y / Z / W / B / V) + 2 axes indexing milling head (2.5°)
8 axes simultaneously (X / Y / Z / W / B / V) + continuous orthogonal milling head (A: ±120° / C: ±180°)
Heavy duty CNC milling & boring machine / CNC floor type borer & floor type milling
Ram size: 630 x 500 mm
Ram travel: 1250 mm
Spindle diameter: 130 mm
Spindle travel: 650 mm
CNC continuous orthogonal milling head (A: ±120° / C: ±180°)
CNC indexing milling head (2.5°)
Toolchanger for automatic changing of two milling heads
Cooling through spindle
Toolchanger with 60 positions
Chip conveyor
Siemens drives & motors
Heidenhain control & measuring rulers
Weight of machine: 60 tons
Machine dimensions: 19 m x 12 m x 6.65 m

TIRT3025 CNC turntable continuous
Max workpiece weight: 60 tons
Turntable dimensions: 3000 x 2500 mm
Turntable travel: 2500 mm
Max speed: 2 rpm
Weight of table: 37 tons
Table dimensions: 6500 x 2500 x 1500 mm

T-slot tables: 7600 x 5282 mm
Weight of tables: 50 tons
