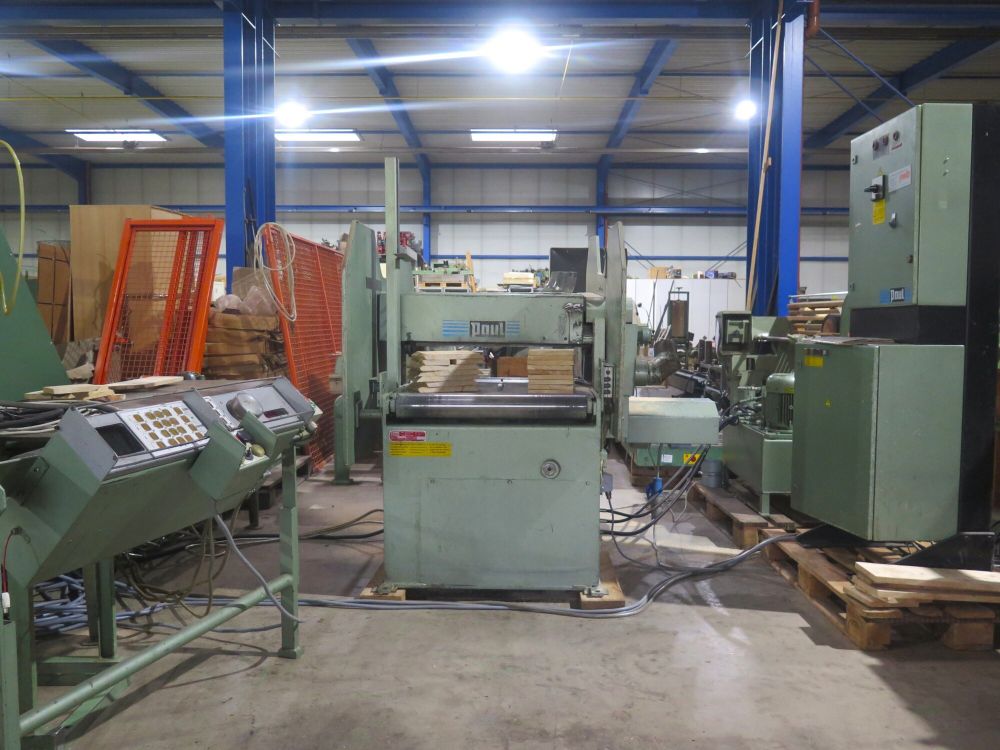

Paul 20 E / NC control Maxi 0.3

Under-table crosscut saw / Optimizing crosscut saw
NC control Maxi 0.3/X.3 for length and quantity input,
Maximum cutting width approx. 700 mm
Maximum cutting height approx. 150 mm
Saw blade diameter 800 mm
Saw motor 7.5 kW
Feed motor 4 kW
Hydraulic pump motor 2.2 kW
Saw blade speed 1450 rpm
Infinitely variable saw blade feed up to 0.2 m/sec
Cutting time depending on cross-section (adjustable) 0.5 – 3 sec
Driven rollers 2 top and 2 bottom
Roller diameter 106.1 mm top and bottom
Adjustable roller pressure
Infinitely variable feed speed from 0 – 2.3 m/sec

Shortest input length with manual feeding approx. 500 mm
Shortest input length with automatic feeding approx. 1500 mm
Length accuracy ± 2 mm
Measurement via measuring roller in the table
Programmable board lengths 30 – 9000 mm
Max. quantity per length 9999
Extraction port diameter: top 2 x 120 mm, bottom 250 mm
Required air flow at 20 – 30 m/s air velocity 1450 – 2200 m³/h
for top extraction and 3600 – 5500 m³/h for bottom extraction
complete with operating instructions and electrical diagrams

Machine dimensions:
Miter saw L 1700 x W = Depth 1900 x H 160 mm, weight approx. 940 kg
Control cabinet L 600 x W 500 x H 1850 mm, weight approx. 100 kg
Operator panel L 1200 x W 500 x H 1100 mm, weight approx. 100 kg
Hydraulic pump L 1000 x W 500 x H 800 mm, weight approx. 100 kg
